(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

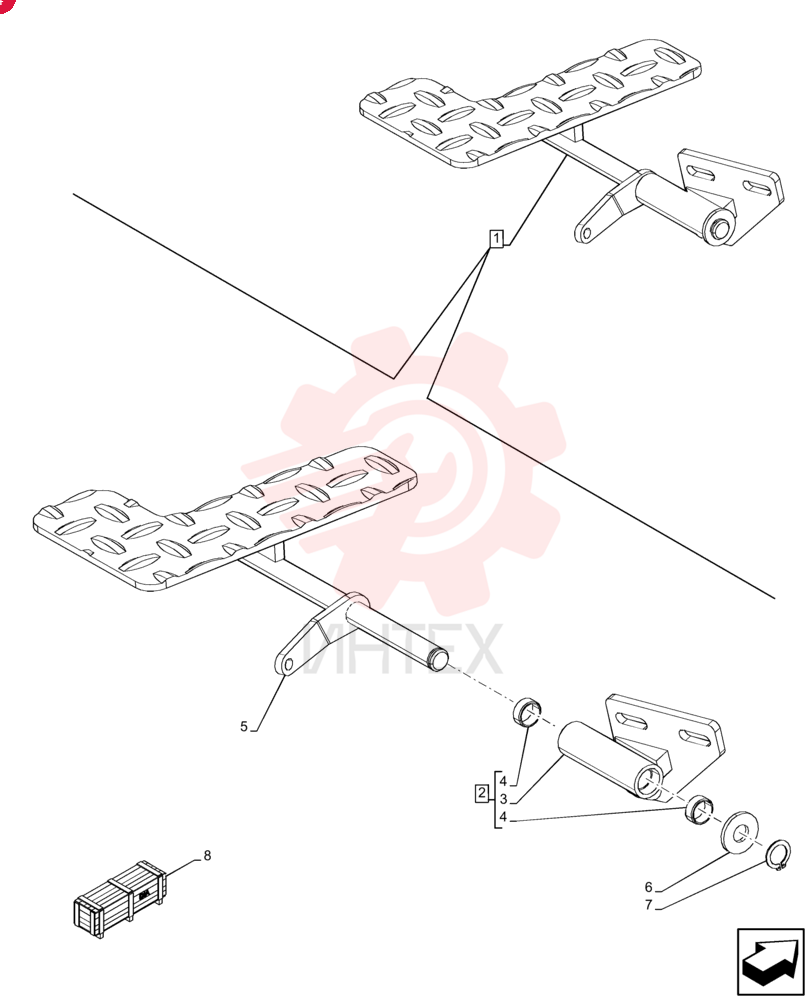

PEDAL 84163535 (2)

PEDAL 84163535 (2)

PEDAL 84163535 (2)

1 84163535

  • 84163535 - PEDAL

2 84163534

  • 84163534 - SUPPORT

3 NSS

  • NSS - NOT SOLD SEPARAT

4 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L

5 84291347

  • 84291347 - PEDAL

6 14496901

  • 14496901 - WASHER
  • 17mm ID x 30mm OD x 3mm Thk

7 83911366

  • 83911366 - E-RING
  • M16 x 1.16mm Thk

8 718721059

  • 718721059 - KIT
