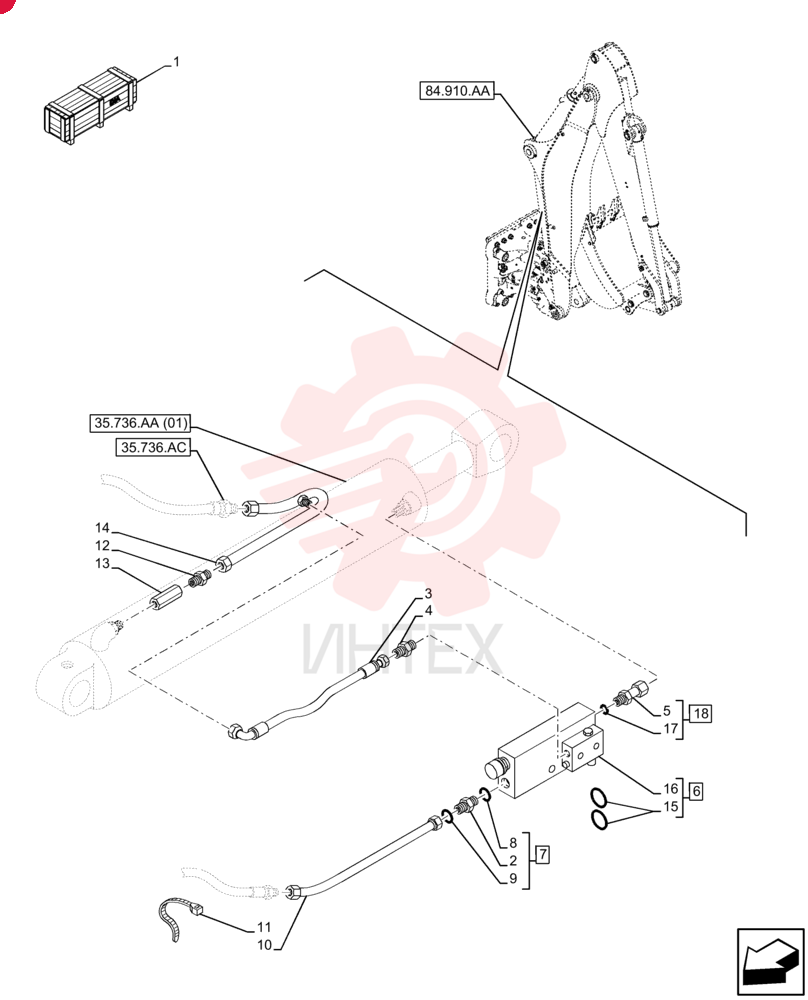

KIT 741393029
1 741393029
- 741393029 - KIT
2 NSS
- NSS - NOT SOLD SEPARAT
3 85815505
- 85815505 - HYDRAULIC HOSE
- 6.35mm ID x 600mm L
4 85802803
- 85802803 - FITTING
- 9/16"-18 ORFS x 9/16"-18 ORB
5 NSS
- NSS - NOT SOLD SEPARAT
6 87353316
- 87353316 - SAFETY VALVE
7 83963000
- 83963000 - FITTING
- 1" - 14 ORFS x 7/8" - 14 ORB
8 80167269
- 80167269 - O-RING
- 0.097" Thk x 0.755" ID
- -910
- Cl 6
- 90 Duro
9 83901443
- 83901443 - O-RING
- 0.07" Thk x 0.614" ID
- -16
- Cl 6
- 90 Duro
10 87647914
- 87647914 - PRESSURE PIPE
11 79072960
- 79072960 - CABLE TIE
- 200mm L
12 85804879
- 85804879 - HYD CONNECTOR
- 1-1/16-12 UN-2A x 1-1/16-12 UN-2A
13 85824308
- 85824308 - HYDRAULIC VALVE
14 85820836
- 85820836 - HYD TUBE
15 85820912
- 85820912 - SEAL KIT
16 NSS
- NSS - NOT SOLD SEPARAT
17 9992069
- 9992069 - O-RING
- 0.07" Thk x 0.614" ID
- -16
- Cl 6
- 90 Duro
18 85805124
- 85805124 - HYD CONNECTOR
- 1-14 ORFS x 7/8-14 ORB
