(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

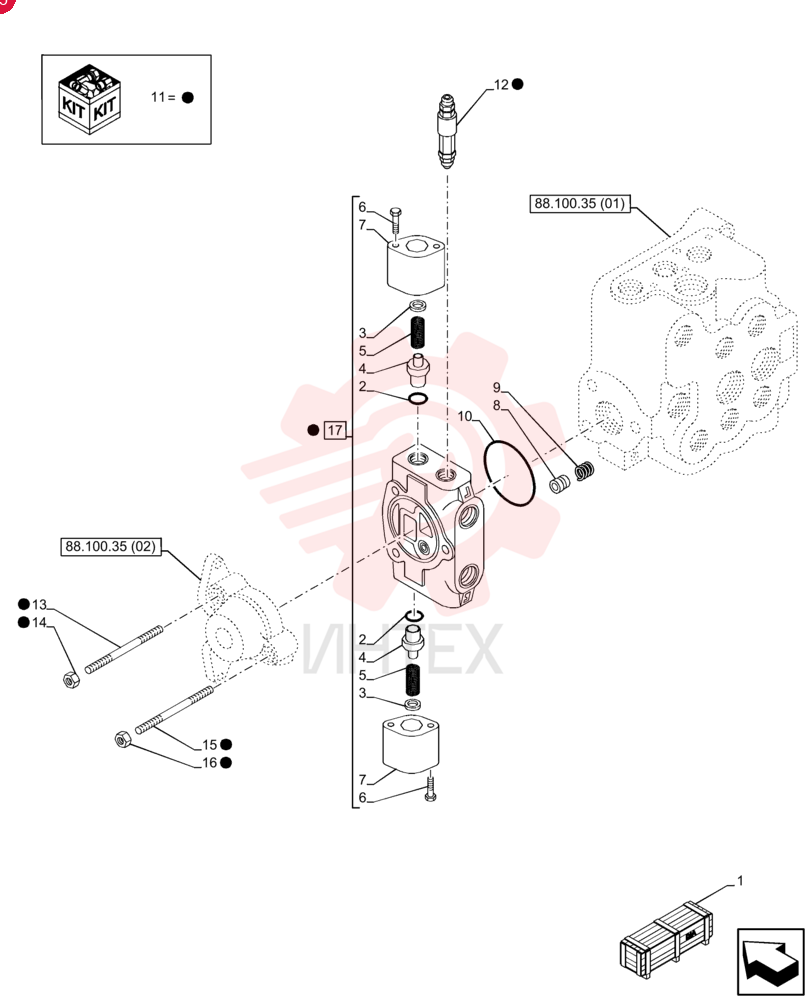

KIT 718718079

KIT 718718079

KIT 718718079

1 718718079

  • 718718079 - KIT

2 718718089

  • 718718089 - KIT

3 718336029

  • 718336029 - DIA KIT
  • MHEX

4 87327044

  • 87327044 - O-RING

5 87327053

  • 87327053 - SPACER

6 87327049

  • 87327049 - SPRING

7 87327052

  • 87327052 - SPRING

8 87327057

  • 87327057 - SCREW

9 87327046

  • 87327046 - PLUG

10 9968477

  • 9968477 - POPPET

11 9968478

  • 9968478 - SPRING

12 9968476

  • 9968476 - SEALING RING

13 87326258

  • 87326258 - CONVERSION KIT

14 9968595

  • 9968595 - VALVE PRESSURE RELIE

15 9968439

  • 9968439 - STUD

16 9968441

  • 9968441 - NUT
  • 5/16-16 UNC

17 9968438

  • 9968438 - THREADED TIE-ROD

18 9968440

  • 9968440 - NUT
  • 13/8-24 UNF

19 87326257

  • 87326257 - HYD VALVE SECTION
