New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

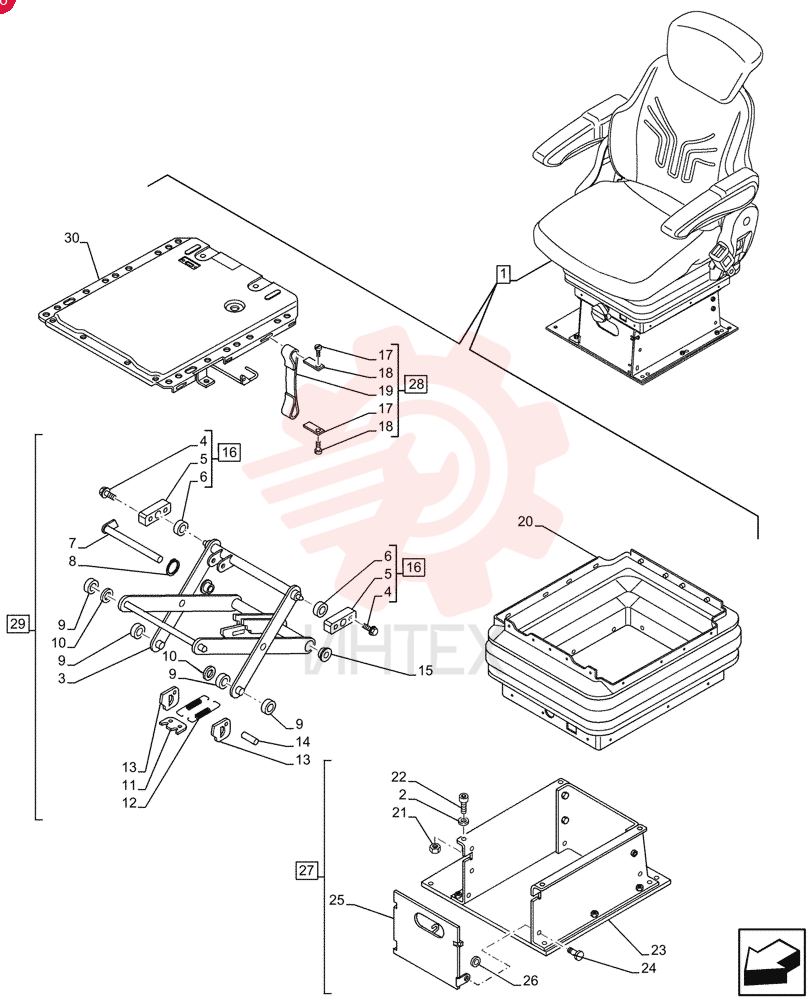

SEAT 84177702 (6)

SEAT 84177702 (6)

SEAT 84177702 (6)

1 84177702

  • 84177702 - SEAT

2 82034881

  • 82034881 - WASHER
  • 8.4mm ID

3 NSS

  • NSS - NOT SOLD SEPARAT

4 85817444

  • 85817444 - SCREW
  • M6 x 16mm

5 NSS

  • NSS - NOT SOLD SEPARAT

6 85817445

  • 85817445 - BUSHING

7 85817429

  • 85817429 - PIN

8 82035127

  • 82035127 - WASHER
  • M9

9 9958784

  • 9958784 - SPACER

10 85817442

  • 85817442 - BUSHING

11 9958782

  • 9958782 - PLATE

12 84171414

  • 84171414 - TENSION SPRING

13 9958792

  • 9958792 - PLATE

14 9958793

  • 9958793 - BOLT

15 82035048

  • 82035048 - BUSHING

16 86024670

  • 86024670 - KIT

17 85817448

  • 85817448 - RIVET
  • 5mm OD x 10mm L

18 85817449

  • 85817449 - PLATE

19 NSS

  • NSS - NOT SOLD SEPARAT

20 85817428

  • 85817428 - BELLOWS

21 82034880

  • 82034880 - NUT
  • M8

22 82034893

  • 82034893 - SCREW
  • M8 x 1.25 x 1.25mm

23 NSS

  • NSS - NOT SOLD SEPARAT

24 85817559

  • 85817559 - PIN

25 85817558

  • 85817558 - DOOR

26 82035045

  • 82035045 - WASHER

27 84332463

  • 84332463 - SUPPORT

28 85817447

  • 85817447 - HANDLE

29 85817446

  • 85817446 - SUSPENSION

30 85817450

  • 85817450 - PLATE
