(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

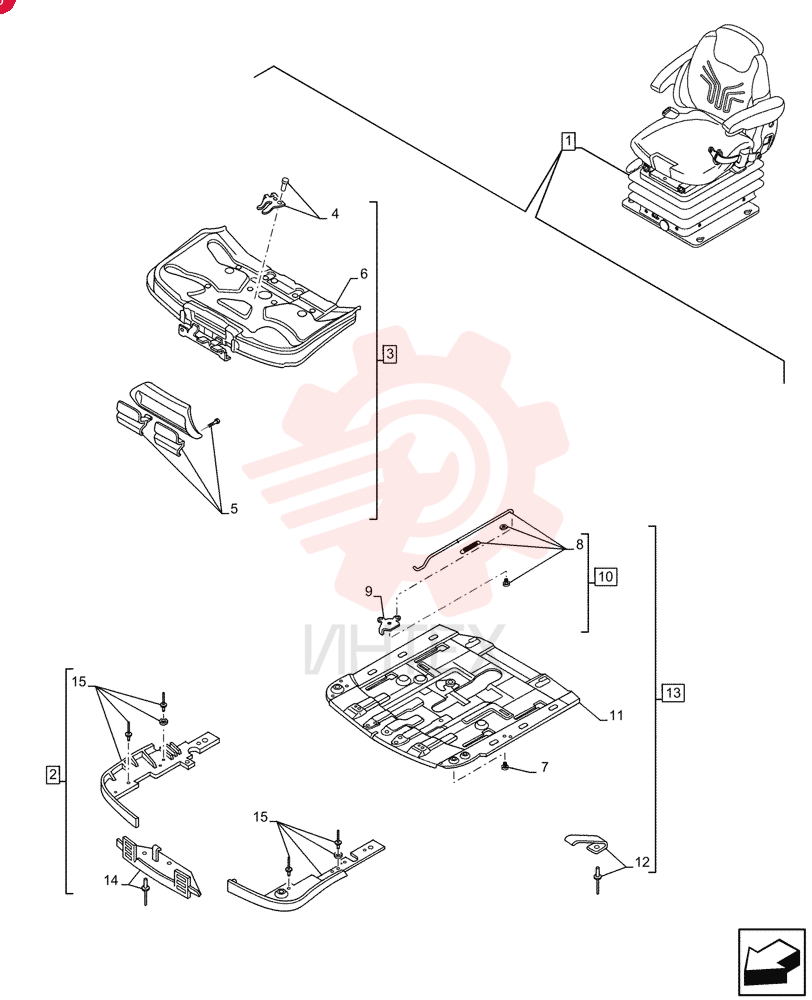

SEAT 84177696 (4)

SEAT 84177696 (4)

SEAT 84177696 (4)

1 84177696

  • 84177696 - SEAT

2 47931574

  • 47931574 - DRIVER SEAT

3 1-34-751-727

  • 1-34-751-727 - COVER

4 84191153

  • 84191153 - ADJUSTER

5 1-34-751-739

  • 1-34-751-739 - FIXING PLATE

6 84191160

  • 84191160 - TRIGGER

7 NSS

  • NSS - NOT SOLD SEPARAT

8 84191202

  • 84191202 - SET OF PARTS

9 NSS

  • NSS - NOT SOLD SEPARAT

10 345775A1

  • 345775A1 - LEVER

11 84191203

  • 84191203 - CONTROL LEVER

12 NSS

  • NSS - NOT SOLD SEPARAT

13 84191175

  • 84191175 - SEAT PLATE

14 84191167

  • 84191167 - ADJUSTER

15 1-34-751-728

  • 1-34-751-728 - COVER

16 NSS

  • NSS - NOT SOLD SEPARAT
