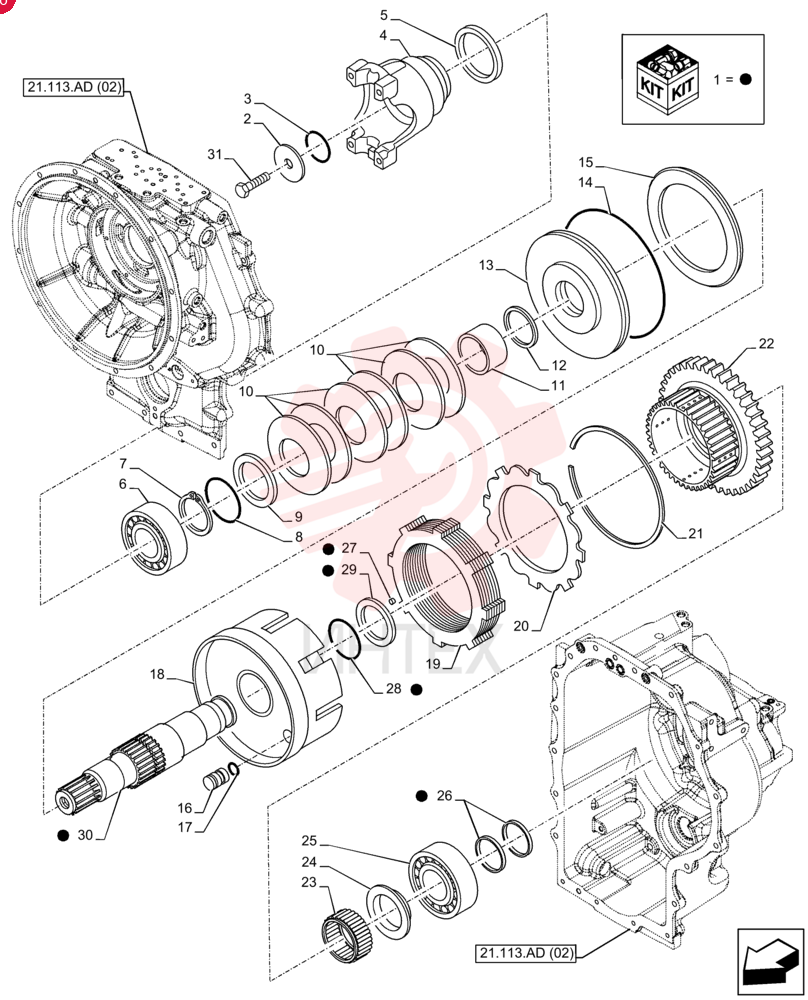

SHAFT 84174568
1 84174568
- 84174568 - SHAFT
2 181165A1
- 181165A1 - WASHER
- 12.5mm ID x 52mm OD x 5mm Thk
3 100748A1
- 100748A1 - O-RING
- 1.421" ID x 1.699" OD x 0.139"
4 87705564
- 87705564 - FLANGE
5 181123A1
- 181123A1 - OIL SEAL
- 60mm ID x 75mm OD x 8mm Thk
6 700524R91
- 700524R91 - BALL BEARING
7 87306933
- 87306933 - SNAP RING
- M45
8 87705529
- 87705529 - SHIM
- 0.1mm Thk
9 87705531
- 87705531 - SHIM
- 0.5mm Thk
10 87705530
- 87705530 - SHIM
- 0.3mm Thk
11 87705543
- 87705543 - THRUST WASHER
12 87705544
- 87705544 - BELLEVILLE WASHER
13 87705545
- 87705545 - SPACER
14 510120
- 510120 - O-RING
- 0.139" Thk x 1.734" ID
- -224
- Cl 5
- 75 Duro
15 87705547
- 87705547 - PISTON
16 87705548
- 87705548 - O-RING
17 87705549
- 87705549 - BRAKE PLATE
18 87705551
- 87705551 - PIN
19 83944333
- 83944333 - O-RING
- 11.91mm ID x 2.62mm Width
20 84174569
- 84174569 - CLUTCH
21 87705554
- 87705554 - CLUTCH OVERHAUL KIT
22 87705555
- 87705555 - CIRCLIP
23 87705557
- 87705557 - CIRCLIP
- 156.6mm OD x 2.5mm Thk
24 87705560
- 87705560 - GEAR
- 41T
25 358633A1
- 358633A1 - BEARING
- NEEDLE
- 50mm ID x 58mm OD x 25mm W
26 358635A1
- 358635A1 - SPACER
27 181126A1
- 181126A1 - BEARING
- BALL
- 45 mm ID x 85 mm OD x 19 mm
28 358645A1
- 358645A1 - SEALING RING
29 139312A1
- 139312A1 - PLUG
- Expansion
- 6mm OD
30 9849963
- 9849963 - O-RING
- 0.103" Thk x 1.987" ID
- -136
- Cl 5
- 75 Duro
31 358640A1
- 358640A1 - WASHER
32 NSS
- NSS - NOT SOLD SEPARAT
33 P3533055
- P3533055 - SCREW
- M12 x 1.25 x 25mm
