(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

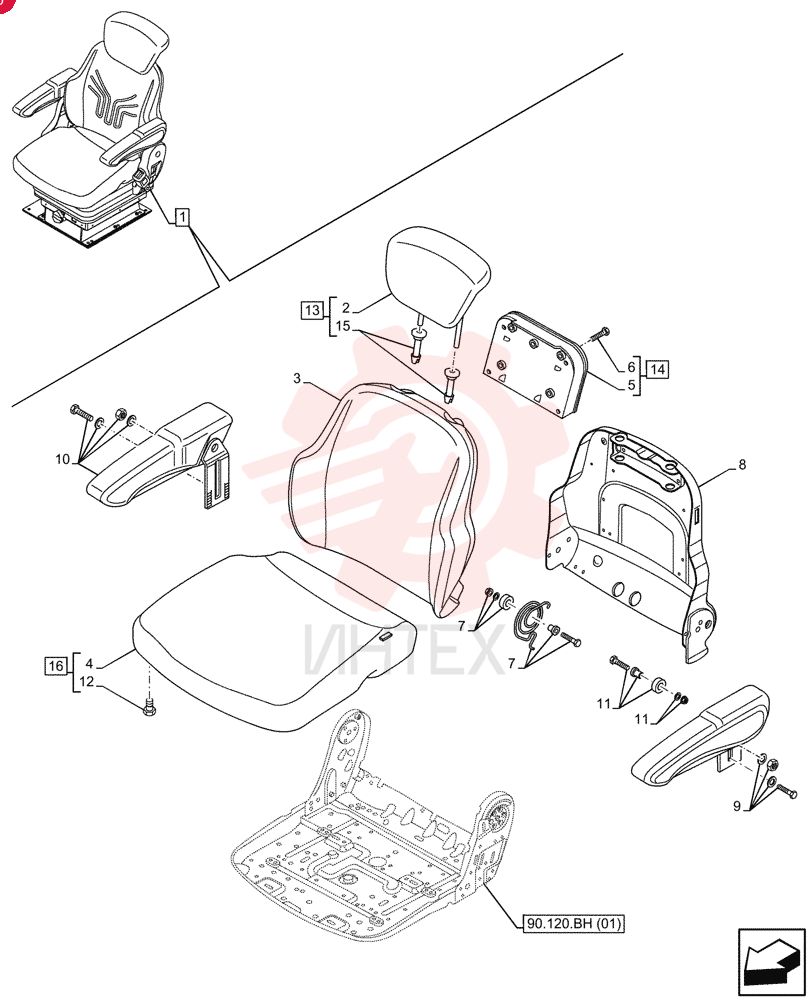

SEAT 84177708 (2)

SEAT 84177708 (2)

SEAT 84177708 (2)

1 84177708

  • 84177708 - SEAT

2 47931583

  • 47931583 - DRIVER SEAT

3 NSS

  • NSS - NOT SOLD SEPARAT

4 84332467

  • 84332467 - BACKREST

5 NSS

  • NSS - NOT SOLD SEPARAT

6 NSS

  • NSS - NOT SOLD SEPARAT

7 84247569

  • 84247569 - REPAIR KIT

8 84191131

  • 84191131 - SET OF PARTS

9 84191121

  • 84191121 - BACKREST

10 375060A1

  • 375060A1 - ARMREST ASSY.

11 71491408

  • 71491408 - ARMREST

12 84191196

  • 84191196 - SET OF PARTS

13 84191200

  • 84191200 - SET OF PARTS

14 84332469

  • 84332469 - BACKREST

15 71491415

  • 71491415 - UTILITY HOLDER

16 84191112

  • 84191112 - GUIDE

17 84332468

  • 84332468 - SEAT CUSHION
