New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

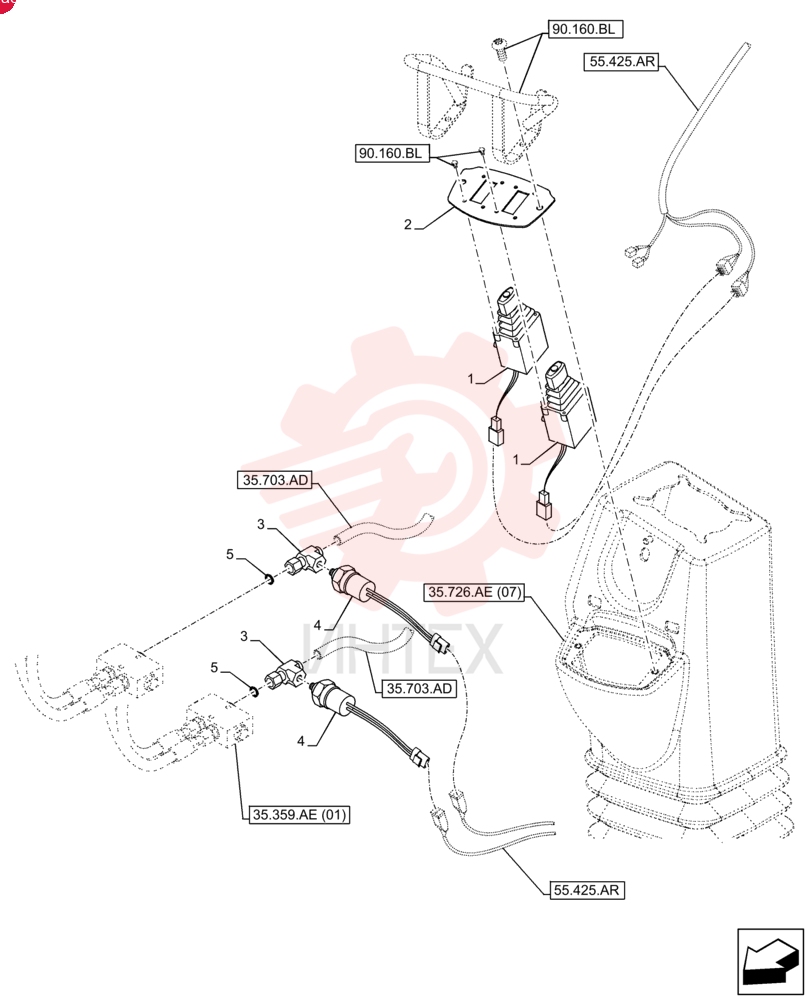

JOYSTICK 47754645 (2)

JOYSTICK 47754645 (2)

JOYSTICK 47754645 (2)

1 47754645

  • 47754645 - JOYSTICK

2 87435381

  • 87435381 - MOUNTING PLATE

3 87401111

  • 87401111 - HYD CONNECTOR
  • 13/16-16 ORFS x 13/16-16 ORFS x 7/16-20 ORB

4 87589234

  • 87589234 - PRESSURE SWITCH

5 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro
