New Holland Construction
/
(C227) - COMPACT TRACK LOADER (4/11-)
/

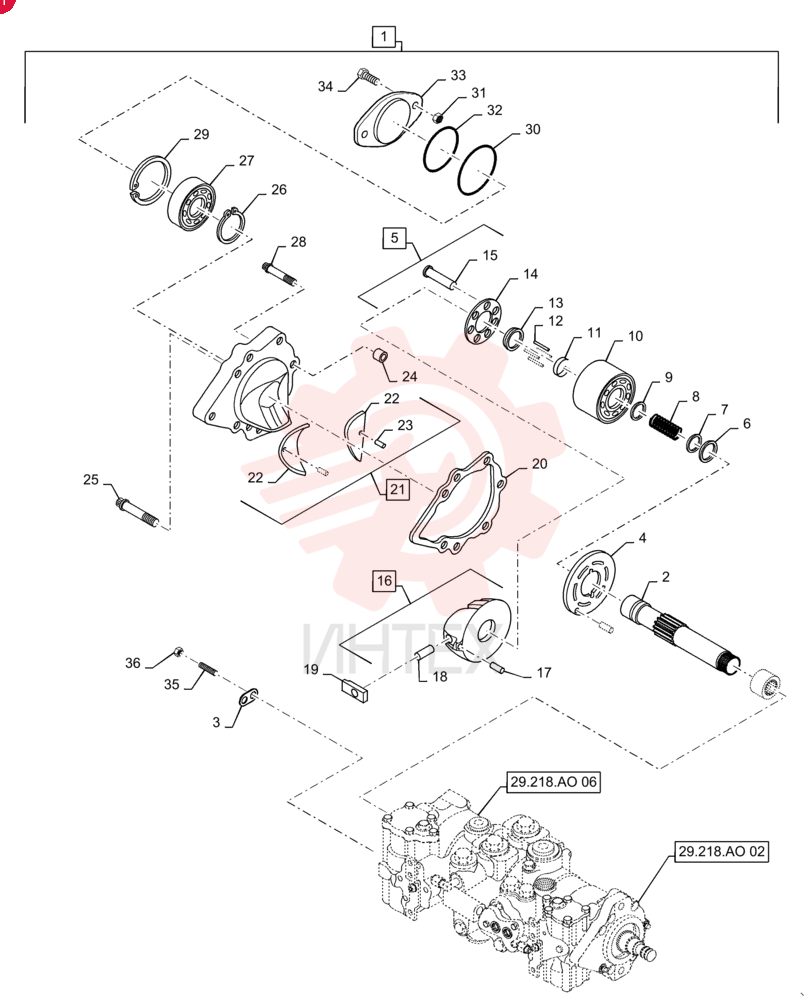

HYDROSTATIC PUMP,46 CC 84322471 (4)

HYDROSTATIC PUMP,46 CC 84322471 (4)

HYDROSTATIC PUMP,46 CC 84322471 (4)

1 84322471

  • 84322471 - HYDROSTATIC PUMP
  • 46 CC
  • Tandem Hydrostatic
  • 46cc
  • Non - Bushed
  • Incl 2 - 36

2 84322471R

  • 84322471R - REMAN-HYD PUMP
  • Tandem Hydrostatic
  • 46cc

3 84322471C

  • 84322471C - CORE-HYDRAULIC PUMP
  • Return Number

4 87039623

  • 87039623 - SHAFT
  • Hydrostat
  • Rear Pump

5 NSS

  • NSS - NOT SOLD SEPARAT
  • Bracket
  • Incl in 1

6 128929A1

  • 128929A1 - LARGE PLATE
  • Valve
  • LH

7 87051278

  • 87051278 - HYD PUMP REPAIR KIT
  • Cylinder Block
  • Incl 6 - 15

8 NSS

  • NSS - NOT SOLD SEPARAT
  • Retaining Ring
  • Incl in 1
  • 5

9 115950A1

  • 115950A1 - WASHER
  • Cylinder Block

10 115948A1

  • 115948A1 - SPRING
  • Cylinder Block

11 115946A1

  • 115946A1 - WASHER
  • Cylinder Block

12 NSS

  • NSS - NOT SOLD SEPARAT
  • Cylinder Block
  • Non - Bushed
  • Incl in 1
  • 5

13 115943A1

  • 115943A1 - SNAP RING
  • Cylinder

14 110873A1

  • 110873A1 - PIN
  • 2.38mm OD x 33.53mm L
  • Slipper Hold - Down

15 115942A1

  • 115942A1 - GUIDE
  • Retainer

16 NSS

  • NSS - NOT SOLD SEPARAT
  • Slipper Guide
  • Incl in 1
  • 5

17 NSS

  • NSS - NOT SOLD SEPARAT
  • Piston Assy
  • Incl in 1
  • 5

18 87050523

  • 87050523 - PLATE ASSY.
  • Variable Swashplate
  • Incl 17 - 18

19 324610A1

  • 324610A1 - PIN
  • Swashplate

20 N13254

  • N13254 - PIN
  • Swashplate

21 N13224

  • N13224 - SLEEVE
  • Bearing

22 H436704

  • H436704 - GASKET
  • 0.79mm Thk
  • Front Cover

23 87039624

  • 87039624 - COVER
  • Rear
  • Assy
  • Incl 22 - 23

24 193488A1

  • 193488A1 - BEARING LINER
  • Journal

25 193494A1

  • 193494A1 - PIN
  • ROLL
  • Spring

26 N13994

  • N13994 - SPACER
  • Spring Pin

27 223677A1

  • 223677A1 - SCREW
  • Torx
  • 7/16"
  • Rear Cover

28 100-11137

  • 100-11137 - SNAP RING
  • #137
  • Ext

29 A29183

  • A29183 - BALL BEARING
  • 34.99mm ID x 71.99mm OD x 16.94mm W

30 223680A1

  • 223680A1 - SPECIAL BOLT
  • Torx
  • 3/8"

31 F61018

  • F61018 - SNAP RING
  • M73
  • Int

32 NSS

  • NSS - NOT SOLD SEPARAT
  • Cover Plate O - Ring
  • Incl in 1

33 425-108

  • 425-108 - NUT
  • 1/2" - 13
  • Gr 5

34 87013729

  • 87013729 - O-RING
  • 0.07" Thk x 3.739" ID
  • -44
  • Cl 5
  • 75 Duro

35 NSS

  • NSS - NOT SOLD SEPARAT
  • Cover Plate
  • Incl in 1

36 13-836

  • 13-836 - BOLT
  • Hex
  • 1/2" - 13 x 2-1/4"
  • Gr 5

37 K608432

  • K608432 - STUD
  • 1/2" - 13 x 4-1/2"

38 425-108

  • 425-108 - NUT
  • 1/2" - 13
  • Gr 5
