New Holland Construction
/
(C227) - COMPACT TRACK LOADER (4/11-)
/

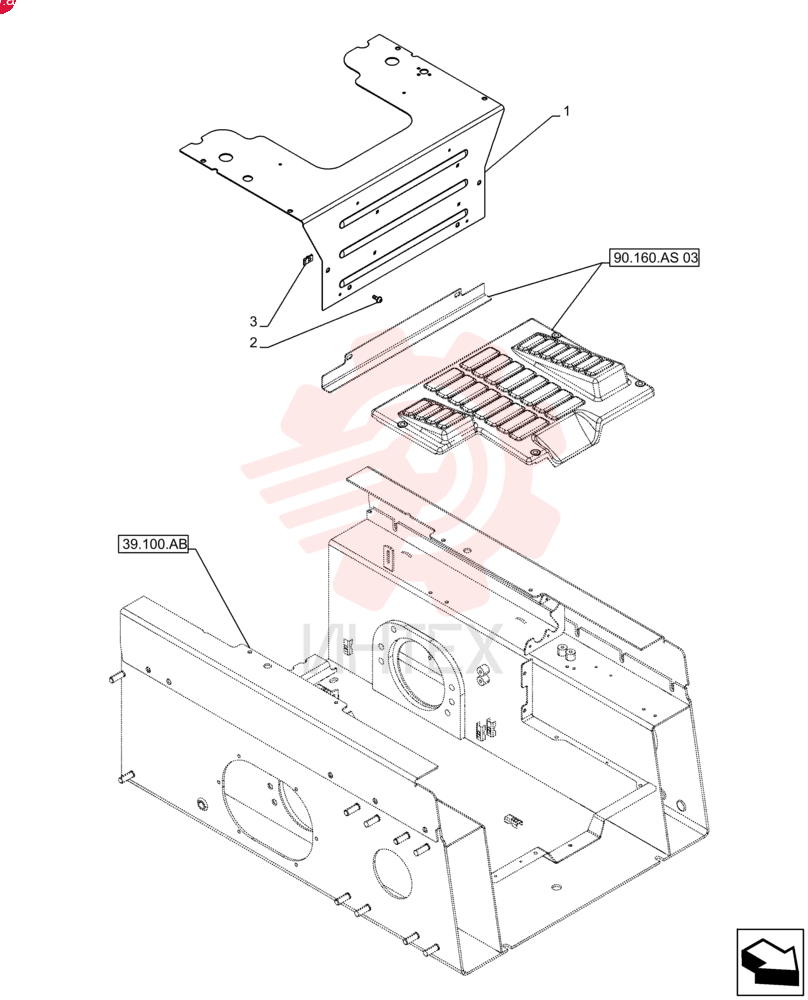

PLATE 84335594

PLATE 84335594

PLATE 84335594

1 84335594

  • 84335594 - PLATE
  • Removable Heel Plate Md-Lg Frame EH

2 84187826

  • 84187826 - FLANGE BOLT
  • Torx Rnd Hd
  • M8 x 20mm
  • Cl 8.8
  • Full Thd
  • RWH M8x20

3 87016586

  • 87016586 - SPRING NUT
  • Multi-Thd
  • M8 x 1.25
  • Spring
  • Multi - Thd
  • M8x1.25 lg
