New Holland Construction
/
(C227) - COMPACT TRACK LOADER (4/11-)
/

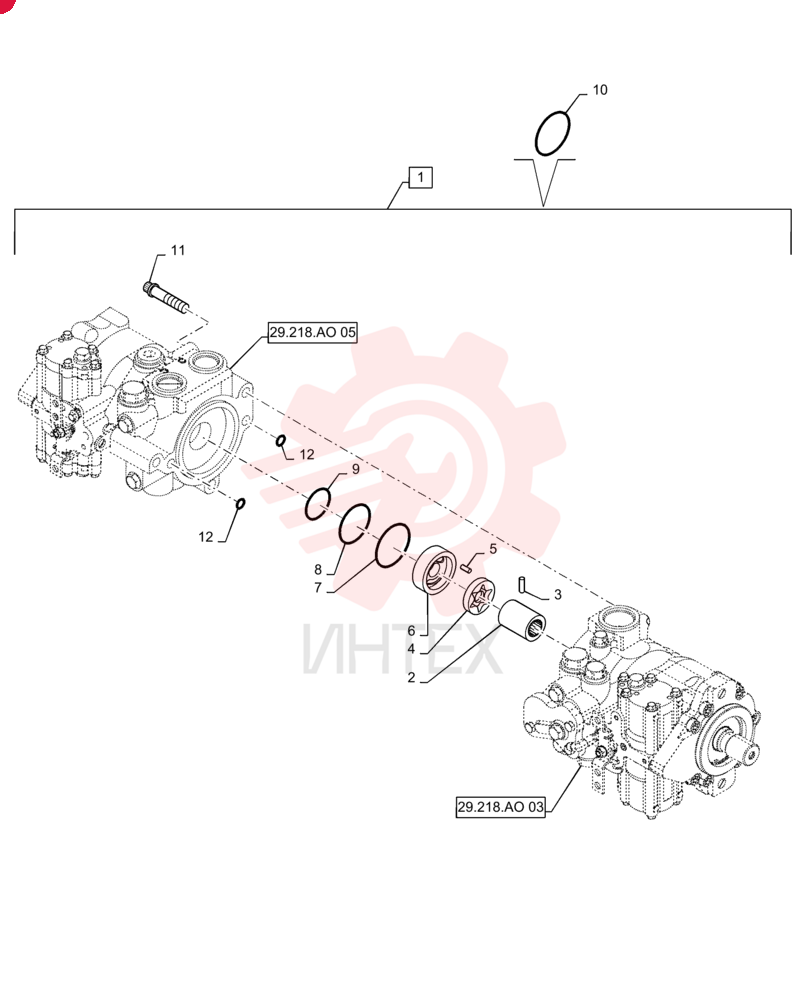

HYDROSTATIC PUMP,46 CC 84322471 (1)

HYDROSTATIC PUMP,46 CC 84322471 (1)

HYDROSTATIC PUMP,46 CC 84322471 (1)

1 84322471

  • 84322471 - HYDROSTATIC PUMP
  • 46 CC
  • Tandem 46cc
  • Non - Bushed
  • Incl 2 - 9
  • 11 - 12

2 84322471R

  • 84322471R - REMAN-HYD PUMP
  • Tandem 46cc

3 84322471C

  • 84322471C - CORE-HYDRAULIC PUMP
  • Return Number

4 N13234

  • N13234 - COUPLING
  • BREAK AWAY

5 N13262

  • N13262 - PIN

6 N13247

  • N13247 - GEAR-SET
  • Rotor

7 181680A1

  • 181680A1 - PIN
  • 3/16" OD x 13/16" L

8 N13999

  • N13999 - PLATE
  • 3.9985" OD x 1.58" ID
  • Gerotor
  • Cover

9 H437190

  • H437190 - O-RING

10 A36405

  • A36405 - O-RING
  • 0.139" Thk x 3.484" ID
  • -238
  • Cl 6
  • 90 Duro

11 H435776

  • H435776 - O-RING
  • 44.04mm ID x 51.10mm OD x 7.06mm W

12 140008A1

  • 140008A1 - GASKET KIT
  • Contains 42 Seals
  • Services 1

13 166-89

  • 166-89 - 12 PT SCREW
  • 1/2" - 13 x 2"
  • Gr 8

14 122057

  • 122057 - O-RING
  • 0.103" Thk x 0.737" ID
  • -116
  • Cl 6
  • 90 Duro
