(C227) - COMPACT TRACK LOADER (4/11-)
/

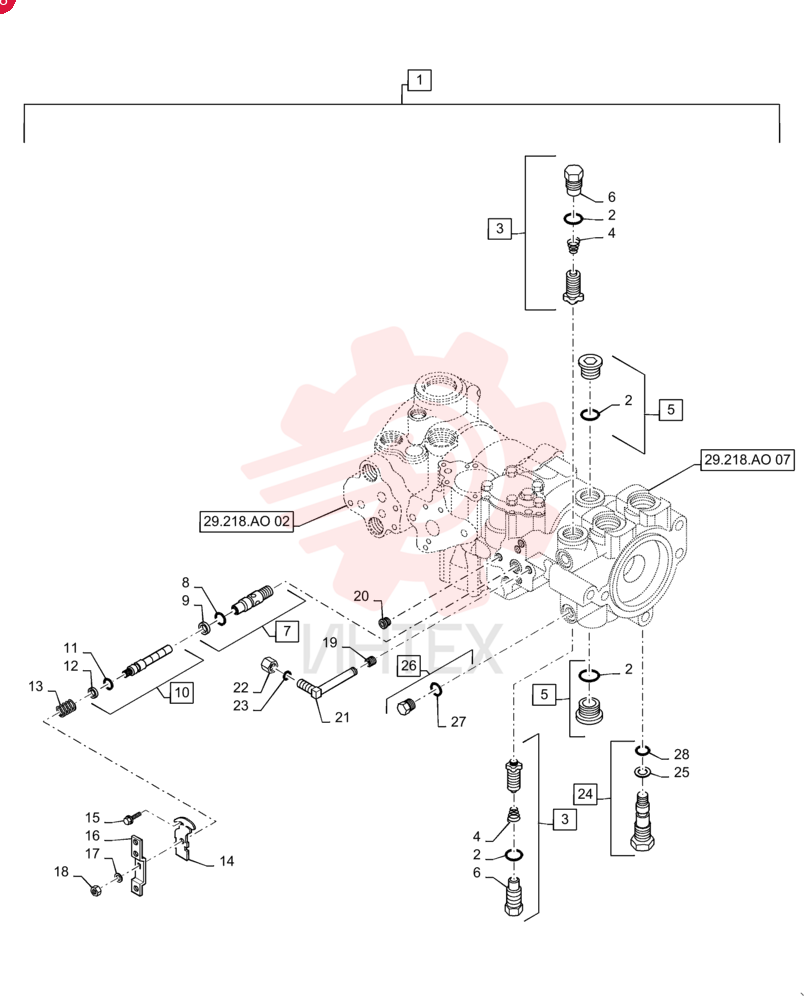

HYDROSTATIC PUMP,46 CC 84322471 (5)

HYDROSTATIC PUMP,46 CC 84322471 (5)

HYDROSTATIC PUMP,46 CC 84322471 (5)

1 84322471

  • 84322471 - HYDROSTATIC PUMP
  • 46 CC
  • Tandem Hydrostatic
  • 46cc
  • Non - Bushed
  • Incl 2 - 37

2 84322471R

  • 84322471R - REMAN-HYD PUMP
  • Tandem Hydrostatic
  • 46cc

3 84322471C

  • 84322471C - CORE-HYDRAULIC PUMP
  • Return Number

4 237-6012

  • 237-6012 - O-RING
  • 0.116" Thk x 0.924" ID
  • -912
  • Cl 6
  • 90 Duro

5 105720A1

  • 105720A1 - VALVE
  • Relief
  • 360 Bar
  • Incl 2
  • 4
  • 6

6 86993468

  • 86993468 - SPRING
  • Relief Valve

7 218-5212

  • 218-5212 - PLUG
  • 1-1/16" - 12 ORB
  • Incl 2

8 NSS

  • NSS - NOT SOLD SEPARAT
  • Plug
  • Incl in 1
  • 3

9 87039615

  • 87039615 - SLEEVE
  • Assy
  • Incl 8 - 9

10 NSS

  • NSS - NOT SOLD SEPARAT
  • Back Up Ring
  • Incl in 1
  • 7

11 86993483

  • 86993483 - BACK-UP RING
  • 0.643"

12 87042542

  • 87042542 - SPOOL
  • Assy
  • Incl 11 - 12

13 86993475

  • 86993475 - O-RING
  • Spool Assy

14 86993484

  • 86993484 - BACK-UP RING
  • 0.390"

15 N13248

  • N13248 - SPRING
  • 3/4" OD
  • Neutral Return

16 N13250

  • N13250 - BRACKET
  • Neutral Return

17 H435770

  • H435770 - FLANGE BOLT
  • 1/4" - 20 x 5/8"

18 100713A1

  • 100713A1 - LEVER
  • Control Handle

19 493-41033

  • 493-41033 - LOCK WASHER
  • 0.33" ID x 0.61" OD x 0.03" Thk

20 H436054

  • H436054 - SPECIAL NUT
  • Lock
  • 5/16" - 18

21 86993479

  • 86993479 - PIPE PLUG
  • 1/16" - 27
  • Tube

22 F23137

  • F23137 - PLUG
  • Pipe

23 218-506

  • 218-506 - 90 ELBOW
  • 7/16" - Male JIC x 1.8" - 27 Male NPTF

24 86993467

  • 86993467 - CAP
  • Tube

25 165202

  • 165202 - O-RING
  • 0.072" Thk x 0.351" ID
  • -904
  • Cl 6
  • 90 Duro

26 87039612

  • 87039612 - BY-PASS VALVE
  • Assy
  • Incl 28 - 29

27 S99877

  • S99877 - BACK-UP RING
  • Split
  • 9.91mm ID x 12.65mm OD x 1.32mm Thk

28 218-5155

  • 218-5155 - PLUG
  • 9/16" - 18 ORB
  • Incl 27

29 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro

30 86993475

  • 86993475 - O-RING
  • Bypass Valve Assy
