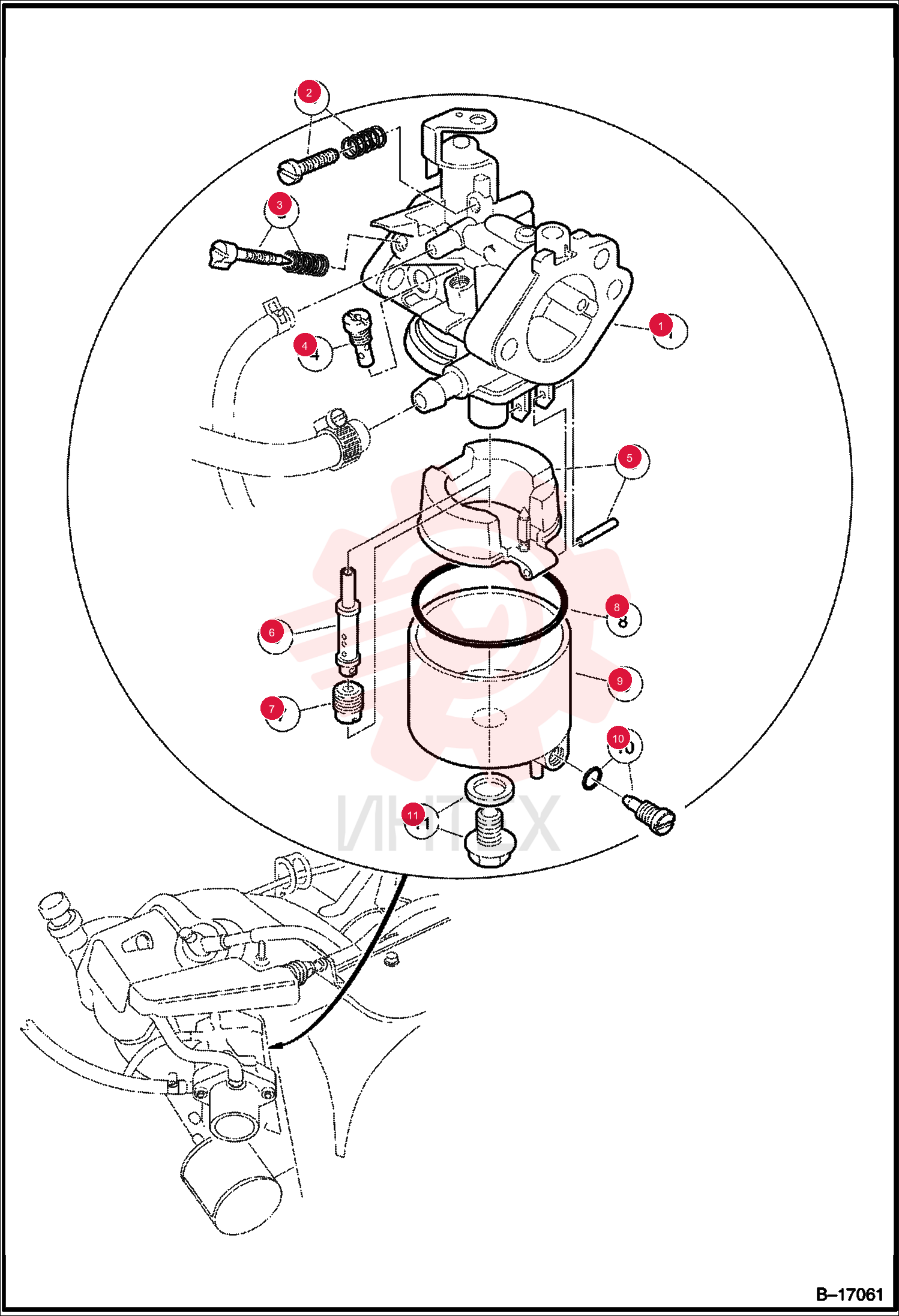

CARBURETOR 103524501CC

CARBURETOR 103524501CC

CARBURETOR 103524501CC

1 103524501CC

  • 103524501CC - CARBURETOR
  • FE350 engine - assy - Ref. 2-11

2 102270701CC

  • 102270701CC - FE400 CARBURETOR ASSY
  • FE400 engine -assy - Ref. 2-11

3 1016501CC

  • 1016501CC - SCREW ASSEMBLY
  • idle

4 101973101CC

  • 101973101CC - JET
  • PILOT
  • #40 - Use W/103524501CC assy

5 1016574CC

  • 1016574CC - PILOT JET
  • #40 - Use W/1022701CC assy

6 1016486CC

  • 1016486CC - FLOAT ASSEMBLY

7 102271701CC

  • 102271701CC - FE400 CARB MAIN NOZZLE
  • main - Use W/1022701CC assy

8 101642582CC

  • 101642582CC - HIGH ALTITUDE JET - OHV
  • 6562 & Above - Use W/1022701CC assy

9 101642580CC

  • 101642580CC - HIGH ALTITUDE JET - OHV
  • 5000-8000 feet - Use W/103524501CC assy

10 101642582CC

  • 101642582CC - HIGH ALTITUDE JET - OHV
  • 3000-5000 feet - Use W/103524501CC assy

11 101642585CC

  • 101642585CC - HIGH ALTITUDE JET
  • 0-3000 feet - Use W/103524501CC assy

12 101642585CC

  • 101642585CC - HIGH ALTITUDE JET
  • 3280-6562 feet - Use W/1022701CC assy

13 101642588CC

  • 101642588CC - MAIN JET
  • 0-3280 feet - Use W/1022701CC assy

14 1016437CC

  • 1016437CC - GASKET
  • CARB. BOWL OHV
  • float chamber

15 1016499CC

  • 1016499CC - SCREW ASSEMBLY
  • assy

16 1016585CC

  • 1016585CC - BOLT
  • assy
