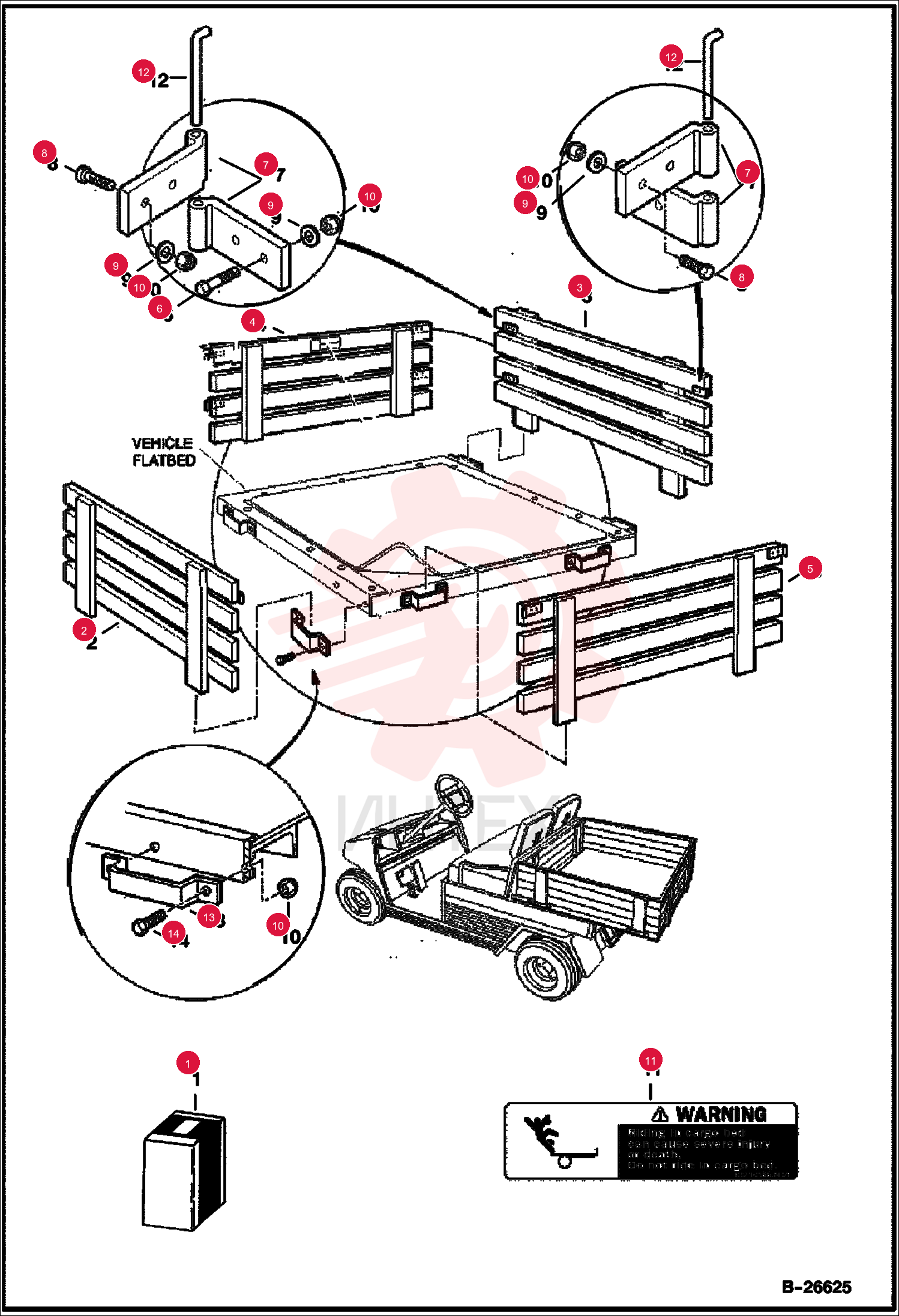

STAKE-SIDE KIT 102847701CC

STAKE-SIDE KIT 102847701CC

STAKE-SIDE KIT 102847701CC

1 102847701CC

  • 102847701CC - STAKE-SIDE KIT
  • 2100 - W/Ref. 2-14 - Was 1015662CC

2 101565801CC

  • 101565801CC - STAKE SIDE ASSY LEFT
  • NLA - 2100 - Was 101565801CC

3 101565802CC

  • 101565802CC - STAKE SIDE ASSY RIGHT
  • NLA - 2100 - Was 101565802CC

4 101565803CC

  • 101565803CC - STAKE SIDE ASSY FRONT
  • NLA - Was 101565803CC

5 101565804CC

  • 101565804CC - STAKE SIDE ASSY REAR
  • NLA - Was 101565804CC

6 17C432

  • 17C432 - BOLT
  • for Ref. 2 & 3 only

7 17C420

  • 17C420 - BOLT

8 27E4

  • 27E4 - WASHER

9 83D4

  • 83D4 - LKNUT HEX FLG GR8

10 101553901CC

  • 101553901CC - DECAL
  • WARNING
  • for Ref. 4

11 1015656CC

  • 1015656CC - STAKE SIDE HINGE PIN

12 1016077CC

  • 1016077CC - STAKE SIDE BRACKET

13 17C516

  • 17C516 - BOLT
