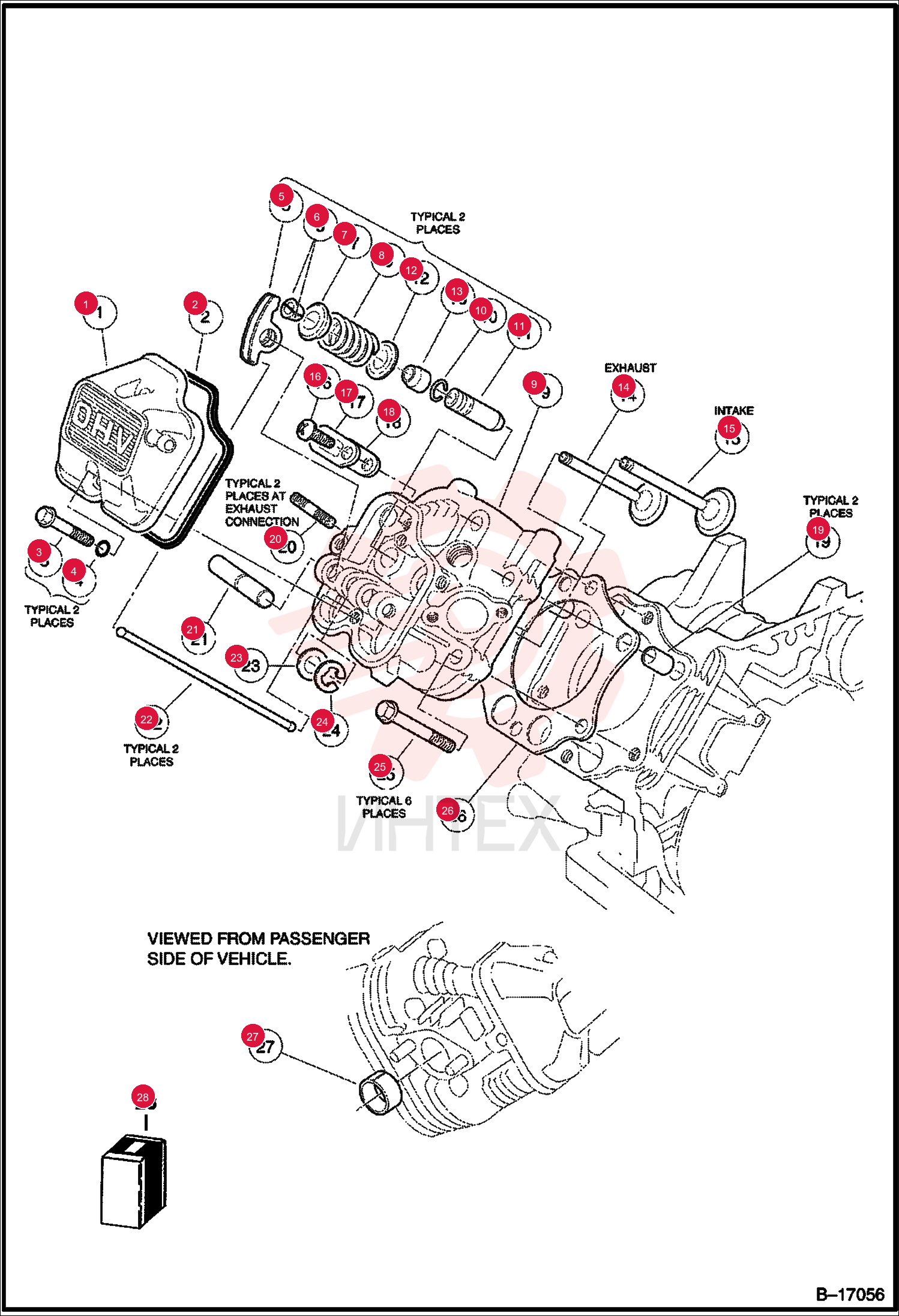

CASE 102753401CC
1 102753401CC
- 102753401CC - CASE
- rocker - Was 1016442CC
2 1016436CC
- 1016436CC - GASKET
- ROCKER CASE
- rocker case
3 1016583CC
- 1016583CC - BOLT
- 6X35
4 1016569CC
- 1016569CC - O-RING
5 1017446CC
- 1017446CC - ARM - ROCKER
6 1016450CC
- 1016450CC - COLLET
7 1016449CC
- 1016449CC - RETAINER - VALVE SPRING
8 1017473CC
- 1017473CC - SPRING
- VALVE
9 102270001CC
- 102270001CC - HEAD CYLINDER ASSEMBLY FE400
- assy - W/Ref. 10-11
10 1016560CC
- 1016560CC - SNAP RING
11 1016518CC
- 1016518CC - GUIDE
- VALVE
- exhaust
12 1016519CC
- 1016519CC - GUIDE
- VALVE
- inlet
13 1016479CC
- 1016479CC - SEAT
- SPRING
- spring
14 1016566CC
- 1016566CC - SEAL
- OIL
- valve
15 1017445CC
- 1017445CC - VALVE
- EXHAUST
- exhaust
16 1017444CC
- 1017444CC - VALVE
- INTAKE
- intake
17 1016544CC
- 1016544CC - SCREW
18 1016474CC
- 1016474CC - PLATE
19 1016483CC
- 1016483CC - VALVE
20 1016563CC
- 1016563CC - PIN
21 1016489CC
- 1016489CC - STUD
- M8-1.25 2-ENDED
22 1016452CC
- 1016452CC - SHAFT - ROCKER
- rocker
23 1017454CC
- 1017454CC - ROD - PUSH
24 1016549CC
- 1016549CC - WASHER
- 12.1X19X1.8
25 1016517CC
- 1016517CC - CIRCLIP - TYPE -E
26 1016458CC
- 1016458CC - BOLT
- FLANGED
27 102269901CC
- 102269901CC - GASKET HEAD FE400
28 102271101CC
- 102271101CC - FE400 STAINLESS EXHAUST SLEEVE
29 102304901CC
- 102304901CC - KIT GASKET
- - includes Ref. 26
- Ref. 1 from Ill. B17062
- Ref. 12 from Ill. B17065 & Ref. 13 from Ill. B17057
