Главная
/
Бренды
/
Bobcat
/
2100S
/

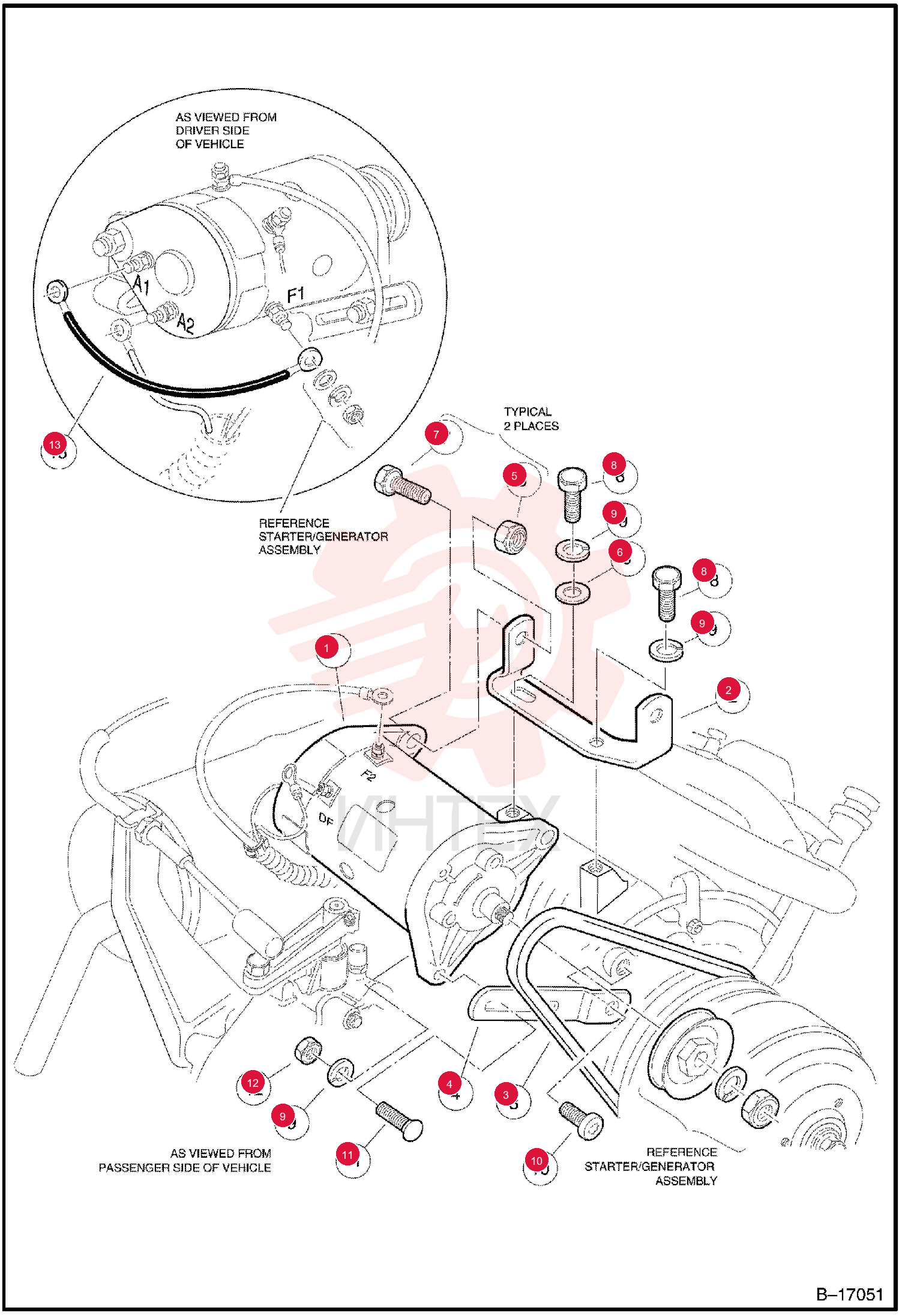

STARTER 103678502CC

STARTER 103678502CC

STARTER 103678502CC

1 103678502CC

  • 103678502CC - STARTER
  • bi-directional - model 114-01-4005B - Was 102628201CC

2 103678502CC

  • 103678502CC - STARTER
  • bi-directional - model 114-01-4005B - Was 102628201CC

3 101916701CC

  • 101916701CC - BELT
  • STARTER-GENERATOR
  • starter

4 1016883CC

  • 1016883CC - S/G ADJUSTMENT BRACKET

5 8754CC

  • 8754CC - LOCKNUT
  • 3/8-16 HEX

6 1015075CC

  • 1015075CC - WASHER
  • 5/16 FLAT

7 705CC

  • 705CC - BOLT
  • 3/8-16 X 1.25 HEX HEAD

8 1012830CC

  • 1012830CC - SCREW
  • M8-125 X 22 HEX GR.8.8

9 7174CC

  • 7174CC - LOCKWASHER
  • 5/16 SPLIT

10 1242CC

  • 1242CC - NUT
  • 5/16-18 HEX
