2100S
/

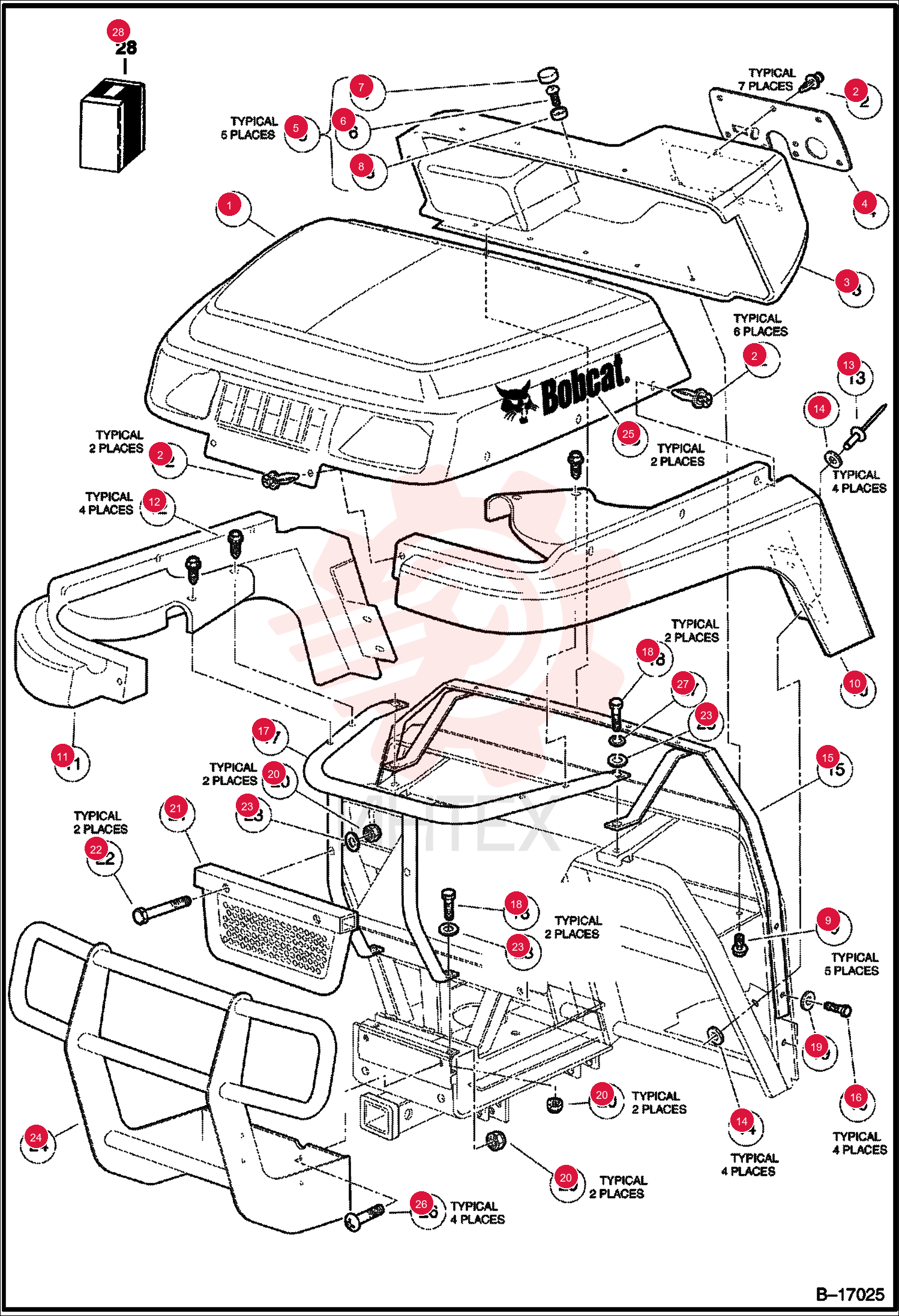

SCREW 102967901CC (1)

SCREW 102967901CC (1)

SCREW 102967901CC (1)

1 102967901CC

  • 102967901CC - SCREW
  • Was 102025701CC

2 102021801CC

  • 102021801CC - DASHBOARD

3 102030501CC

  • 102030501CC - PANEL
  • DASH
  • dash

4 102056901CC

  • 102056901CC - KIT - DASH HDWR
  • dash - W/Ref. 6-8

5 102025801CC

  • 102025801CC - SCREW
  • 1/4-20 X 3/4

6 102021501CC

  • 102021501CC - FENDER
  • LEFT FRONT
  • front driver side

7 102021601CC

  • 102021601CC - FENDER
  • RIGHT FRONT
  • front passenger side

8 1010545CC

  • 1010545CC - SCREW
  • HEX WASH.HD.1/4-14 X .75

9 1606CC

  • 1606CC - RIVET
  • 3/16 X .500 ALUM POP

10 183CC

  • 183CC - WASHER
  • TYPE A FLAT

11 1012285CC

  • 1012285CC - SCREW
  • 1/4-20 X .625 HX TYP TT

12 102015801CC

  • 102015801CC - SUPPORT
  • LOWER FENDER
  • lower fender

13 332CC

  • 332CC - WASHER
  • 1/4 TYPE A NARROW FLAT

14 7473CC

  • 7473CC - LOCKNUT
  • 5/16-18 NYLON INSERT

15 102013901CC

  • 102013901CC - GRILLE ASSEMBLY

16 1010921CC

  • 1010921CC - SCREW
  • 5/16-18 X 2.50 HEX CAP

17 1241CC

  • 1241CC - WASHER
  • 5/16 TYPE A FLAT

18 102013201CC

  • 102013201CC - FRONT BRUSHGUARD

19 102335801CC

  • 102335801CC - DECAL
  • Bobcat - driver side

20 102335901CC

  • 102335901CC - DECAL
  • Bobcat - passenger side

21 7410CC

  • 7410CC - SCREW
  • 5/16-18 X 1.25 TRUSS HD

22 7174CC

  • 7174CC - LOCKWASHER
  • 5/16 SPLIT

23 102751701CC

  • 102751701CC - FLOORMAT - MOLDED
  • NLA - Was 102751701CC
