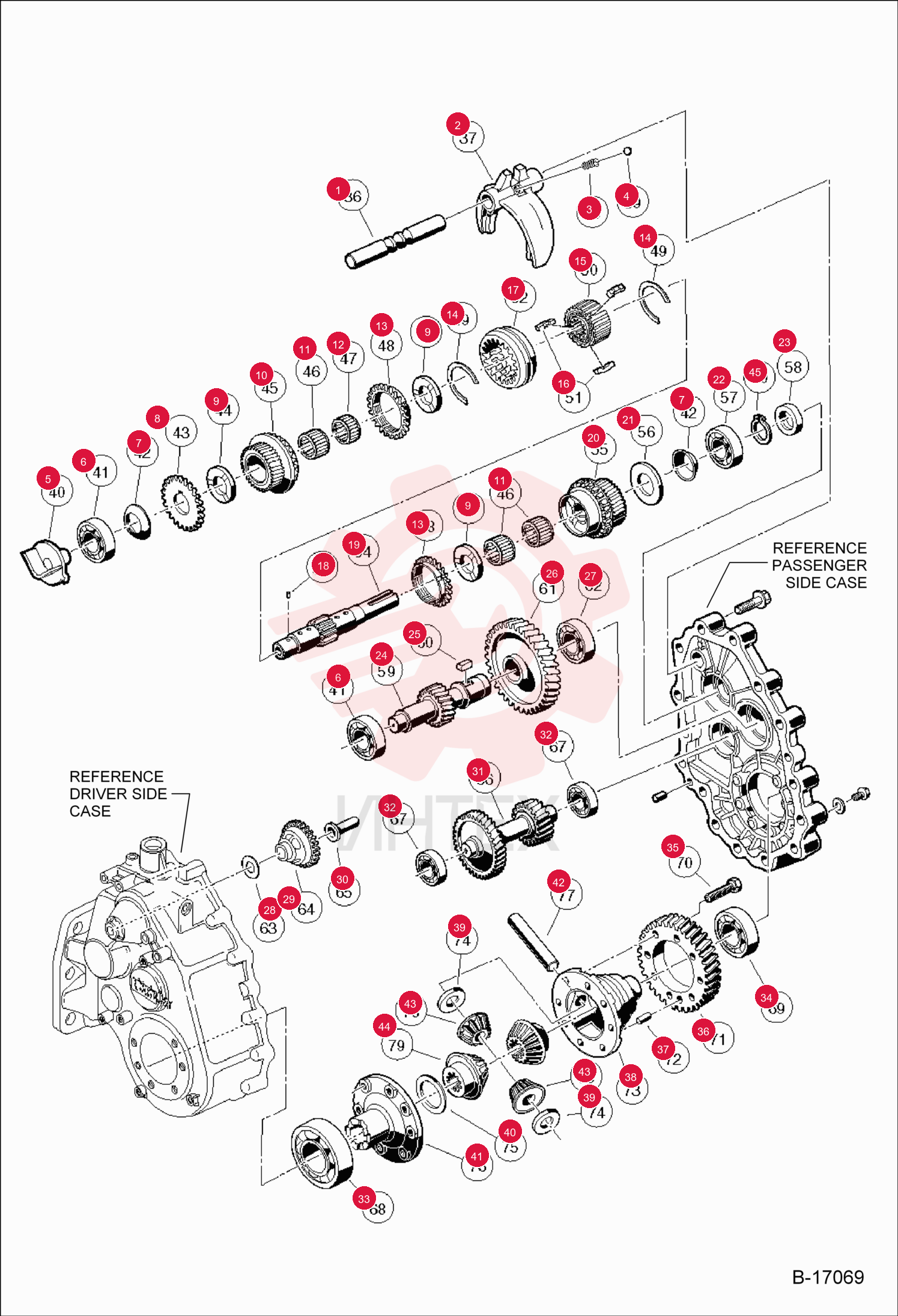

FORK - SHIFT 101890001CC

FORK - SHIFT 101890001CC

FORK - SHIFT 101890001CC

1 101890001CC

  • 101890001CC - FORK - SHIFT
  • shift

2 1012747CC

  • 1012747CC - SHIFTER BALL

3 101889401CC

  • 101889401CC - GUIDE

4 AM10080CC

  • AM10080CC - SEALED BALL BEARING(7336)
  • ball - Was 7336CC

5 1016338CC

  • 1016338CC - SPRING WASHER

6 101892401CC

  • 101892401CC - GEAR
  • SPUR
  • spur

7 101892201CC

  • 101892201CC - PLATE - THRUST
  • thrust

8 102018801CC

  • 102018801CC - GEAR ASSEMBLY
  • input - 25 tooth (16 degree)

9 101927601CC

  • 101927601CC - BEARING
  • NEEDLE
  • needle

10 101927501CC

  • 101927501CC - BEARING
  • NEEDLE
  • needle

11 101981001CC

  • 101981001CC - RING
  • 16 DEGREE SYNCHRONIZER
  • synchronizer (16 degree)

12 1012741CC

  • 1012741CC - SYNCHRO SPRING
  • synchronizer

13 101928001CC

  • 101928001CC - HUB
  • SYNCHRO CLUTCH
  • synchronizer clutch

14 1012740CC

  • 1012740CC - SYNCHRO INSERT
  • synchronizer

15 101927901CC

  • 101927901CC - SLEEVE
  • SYNCHRO
  • synchronizer

16 101927701CC

  • 101927701CC - PIN
  • .116" DIA X .264 DOWEL

17 101889901CC

  • 101889901CC - SHAFT -T/M-INPUT
  • input

18 101980801CC

  • 101980801CC - GEAR ASSEMBLY
  • input - 25 tooth (16 degree)

19 1016337CC

  • 1016337CC - WASHER
  • THRUST
  • thrust

20 AM10081CC

  • AM10081CC - SEALED BALL BEARING(101927801)
  • ball - Was 101927801 CC

21 1012714CC

  • 1012714CC - SEAL
  • OIL
  • oil - inut shaft

22 102268201CC

  • 102268201CC - GEAR
  • HELICAL
  • 12 tooth

23 101893201CC

  • 101893201CC - KEY SUNK

24 102018901CC

  • 102018901CC - GEAR 70 TOOTH
  • NLA - 70 tooth - Was 102018901CC

25 101893901CC

  • 101893901CC - WASHER

26 101892301CC

  • 101892301CC - GOVERNOR
  • NLA - Was 101892301CC

27 101891601CC

  • 101891601CC - SLEEVE - GOVERNOR

28 102019001CC

  • 102019001CC - GEAR
  • IDLER
  • cluster idler

29 7335CC

  • 7335CC - BEARING
  • ball

30 102032001CC

  • 102032001CC - BEARING
  • AXLE TUBE RIGHT
  • nner axle tube - driver side

31 7330CC

  • 7330CC - BEARING TUBE INNER AXLE
  • nner axle tube - passenger side

32 102268301CC

  • 102268301CC - GEAR
  • HELICAL
  • 64 tooth - output - Was 102019701 CC

33 102267901CC

  • 102267901CC - CASE -GEAR
  • Was 102267901CC

34 1013774CC

  • 1013774CC - PLATE
  • THRUST (IDLER GEAR)
  • thrust - idler gear

35 102268101CC

  • 102268101CC - PLATE - THRUST
  • thrust - differential gear

36 102453101CC

  • 102453101CC - RING
  • SNAP
