Bobcat
/
3200
/

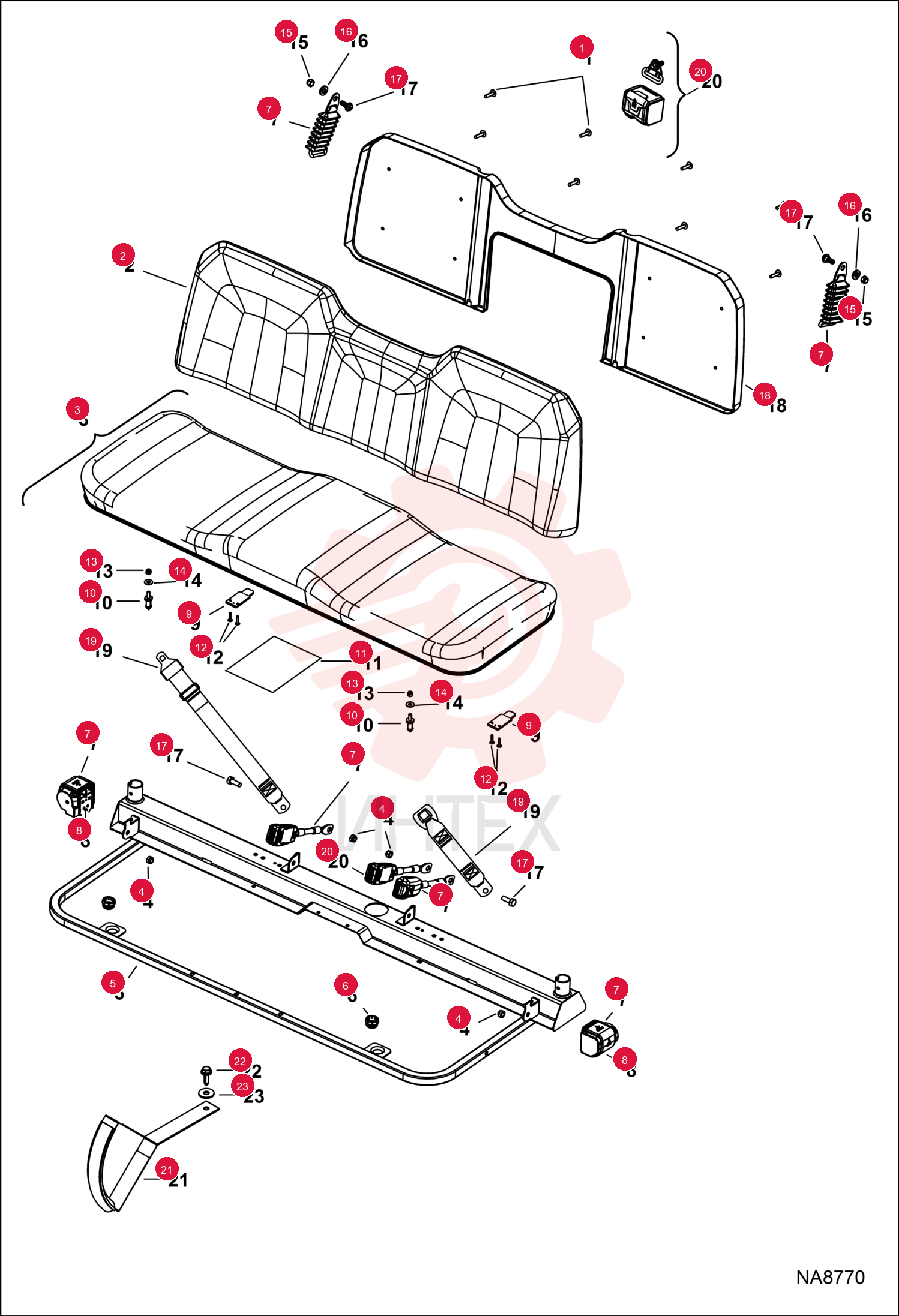

BOLT 7018899 (3)

BOLT 7018899 (3)

BOLT 7018899 (3)

1 7018899

  • 7018899 - BOLT

2 7025284

  • 7025284 - SEAT
  • BACK BLACK

3 7025285

  • 7025285 - SEAT
  • BOTTOM BLACK
  • W/Ref. 9-14

4 7016512

  • 7016512 - NUT

5 7248197

  • 7248197 - BASE
  • CAB SEAT

6 7016413

  • 7016413 - GROMMET

7 7025298

  • 7025298 - SEATBELT
  • 3PT
  • W/Ref. 15 & 17

8 7016091

  • 7016091 - BOLT

9 7025289

  • 7025289 - TAB
  • MOUNT SEAT

10 7025290

  • 7025290 - PIN
  • LATCH SEAT

11 7016406

  • 7016406 - INSULATOR
  • FOIL
  • SEAT

12 7018902

  • 7018902 - RIVET

13 7016507

  • 7016507 - NUT

14 7025291

  • 7025291 - WASHER
  • FLAT

15 7023351

  • 7023351 - NUT
  • LOCK

16 7024106

  • 7024106 - WASHER
  • RUBBER

17 7023349

  • 7023349 - BOLT
  • SHOULDER

18 7023381

  • 7023381 - COVER
  • BACK SEAT BLACK

19 7023304

  • 7023304 - SEATBELT
  • CENTER

20 7248590

  • 7248590 - KIT
  • SEAT BELT

21 7250685

  • 7250685 - STRAP

22 7016645

  • 7016645 - SCREW

23 7016750

  • 7016750 - WASHER
