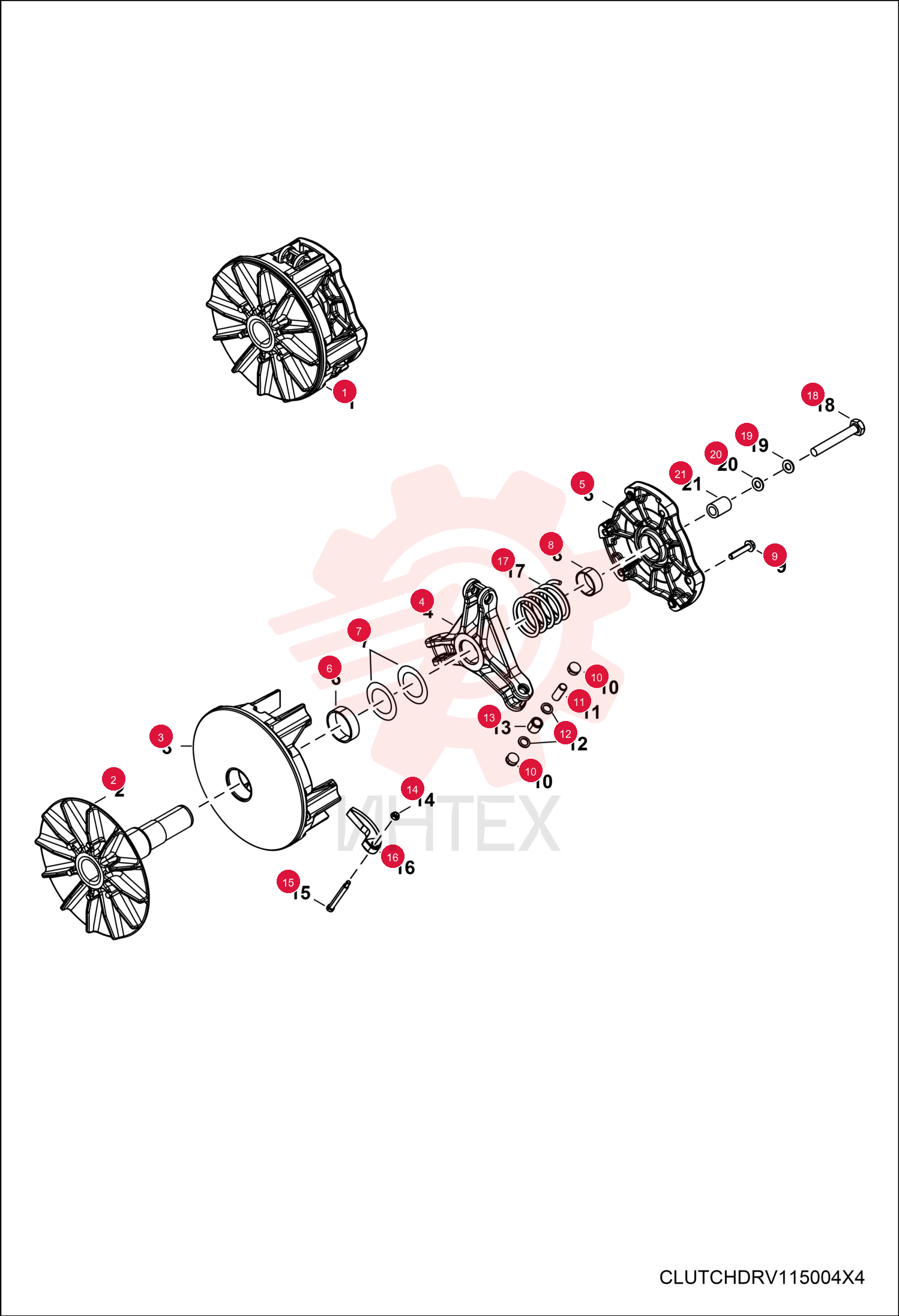

CLUTCH, BASIC, NARROW 7016022

CLUTCH, BASIC, NARROW 7016022

CLUTCH, BASIC, NARROW 7016022

1 7016022

  • 7016022 - CLUTCH
  • BASIC
  • NARROW
  • Ref. 2-15 - Also Order Ref. 16 & 17

2 7016233

  • 7016233 - BUSHING
  • MOVEABLE
  • 1/2 INCH

3 7016690

  • 7016690 - SPACER
  • .050

4 7016689

  • 7016689 - SPACER
  • .032

5 7016688

  • 7016688 - SPACER
  • .025

6 7016687

  • 7016687 - SPACER
  • .020

7 7016077

  • 7016077 - BEARING
  • COVER

8 7016597

  • 7016597 - SCREW

9 7248525

  • 7248525 - BUTTON
  • CLUTCH
  • Was 7016244

10 7016551

  • 7016551 - PIN
  • ROLLER

11 7016776

  • 7016776 - WASHER
  • CLUTCH
  • SPIDER ROLLER

12 7016588

  • 7016588 - ROLLER
  • BUSHING ASSY

13 7016492

  • 7016492 - NUT

14 7016150

  • 7016150 - BOLT

15 7016781

  • 7016781 - WEIGHT
  • SHIFT
  • 25
  • 52G
  • PM

16 7016709

  • 7016709 - SPRING
  • CLUTCH
  • blue/red

17 7016092

  • 7016092 - BOLT

18 7016755

  • 7016755 - WASHER LOCK

19 7016758

  • 7016758 - WASHER

20 7016228

  • 7016228 - BUSHING
