Главная
/
Бренды
/
Bobcat
/
3200
/

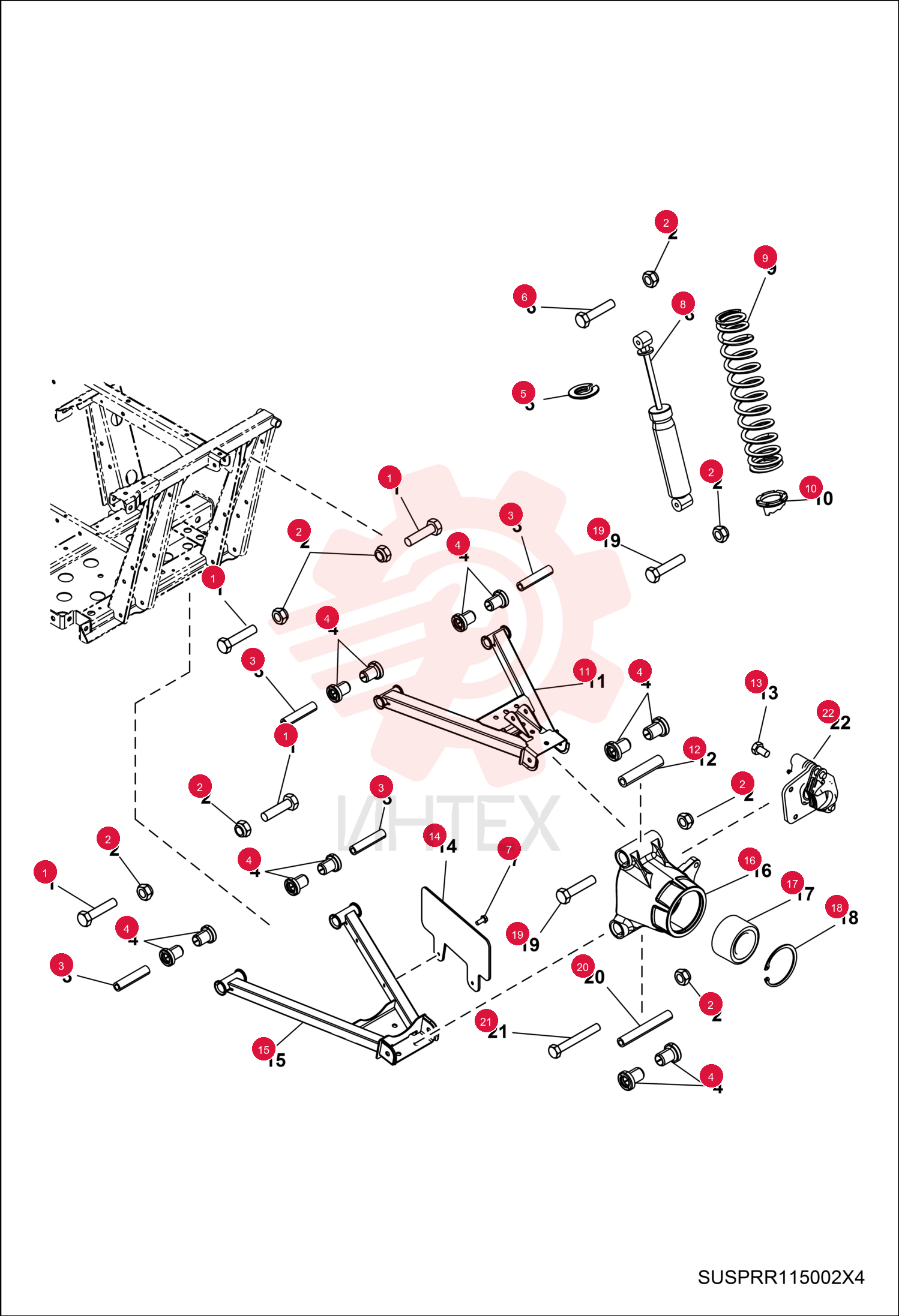

SCREW 7023118 (2)

SCREW 7023118 (2)

SCREW 7023118 (2)

1 7023118

  • 7023118 - SCREW

2 7016168

  • 7016168 - BOLT

3 7016518

  • 7016518 - NUT

4 7023119

  • 7023119 - SHAFT
  • PIVOT

5 7016741

  • 7016741 - TUBE
  • PIVOT
  • 73.96MM

6 7023371

  • 7023371 - BUSHING

7 7016237

  • 7016237 - BUSHING
  • A-ARM

8 7016576

  • 7016576 - RETAINER
  • SPRING
  • STEEL

9 7016166

  • 7016166 - BOLT

10 7016628

  • 7016628 - SCREW

11 7018887

  • 7018887 - DAMPER
  • SHOCK REAR

12 7248221

  • 7248221 - SPRING
  • COIL

13 7016704

  • 7016704 - SPRING
  • 275#/IN
  • BLK

14 7018876

  • 7018876 - CAM
  • SPRING

15 7248185

  • 7248185 - A-ARM

16 7022354

  • 7022354 - ARM
  • CONTROL REAR UPPER

17 7016808

  • 7016808 - CONTROLS
  • ARM
  • RR
  • UPR
  • BLK

18 7021376

  • 7021376 - SHAFT
  • PIVOT UPPER

19 7016668

  • 7016668 - SHAFT
  • PIVOT UPPER

20 7016165

  • 7016165 - BOLT
  • rear caliper attach

21 7016674

  • 7016674 - SHIELD
  • CV
  • REAR
  • BLK

22 7248192

  • 7248192 - A-ARM

23 7022355

  • 7022355 - ARM
  • CONTROL REAR LOWER

24 7016807

  • 7016807 - CONTROLS
  • ARM
  • RR
  • LWR
  • BLK

25 7016281

  • 7016281 - CARRIER
  • BEARING
  • WHEEL
  • LH(MACH)
  • LH

26 7016279

  • 7016279 - CARRIER
  • BEARING
  • WHEEL
  • RH(MACH)
  • RH

27 7016081

  • 7016081 - BEARING
  • WHEEL
  • 40X74X40MM

28 7016578

  • 7016578 - RING
  • RETAINING

29 7016163

  • 7016163 - BOLT

30 7016667

  • 7016667 - SHAFT
  • PIVOT LOWER

31 7021377

  • 7021377 - SHAFT
  • PIVOT LOWER

32 7016164

  • 7016164 - BOLT
