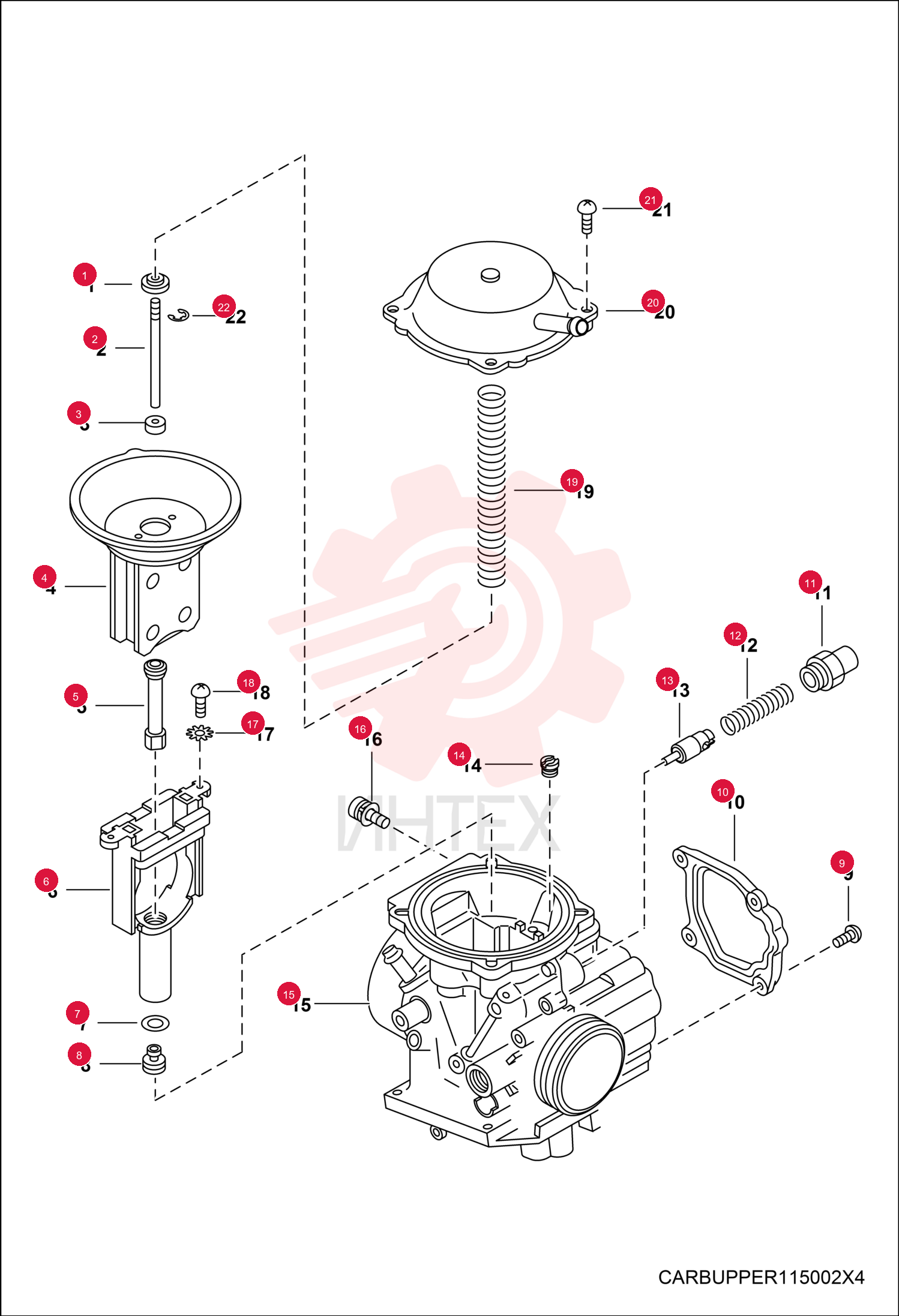

3200
/
RING 7017647

RING 7017647

RING 7017647

1 7017647

  • 7017647 - RING

2 7017555

  • 7017555 - NOZZLE
  • JET NEEDLE

3 7017648

  • 7017648 - RING

4 7017510

  • 7017510 - DIAPHRAGM
  • ASSY
  • Was 7024530

5 7017556

  • 7017556 - NOZZLE
  • JET NEEDLE

6 7016460

  • 7016460 - BLOCK
  • JETBLOCK ASSY

7 7017755

  • 7017755 - WASHER

8 7017596

  • 7017596 - NOZZLE
  • MAIN JET (#150)
  • #150

9 7018865

  • 7018865 - SCREW

10 7018864

  • 7018864 - COVER

11 7017547

  • 7017547 - HOLDER
  • GUIDE

12 7017722

  • 7017722 - SPRING

13 7017437

  • 7017437 - RESISTOR
  • PLUNGER ASSY

14 7017553

  • 7017553 - NOZZLE
  • JET AIR PILOT

15 7018797

  • 7018797 - SCREW

16 7017762

  • 7017762 - WASHER
  • SPRING

17 7017670

  • 7017670 - SCREW

18 7017720

  • 7017720 - SPRING

19 7016026

  • 7016026 - COVER
  • Was 7017415

20 7018964

  • 7018964 - SCREW
  • Was 7017669

21 7017521

  • 7017521 - RING
  • E
