Bobcat
/
3200
/

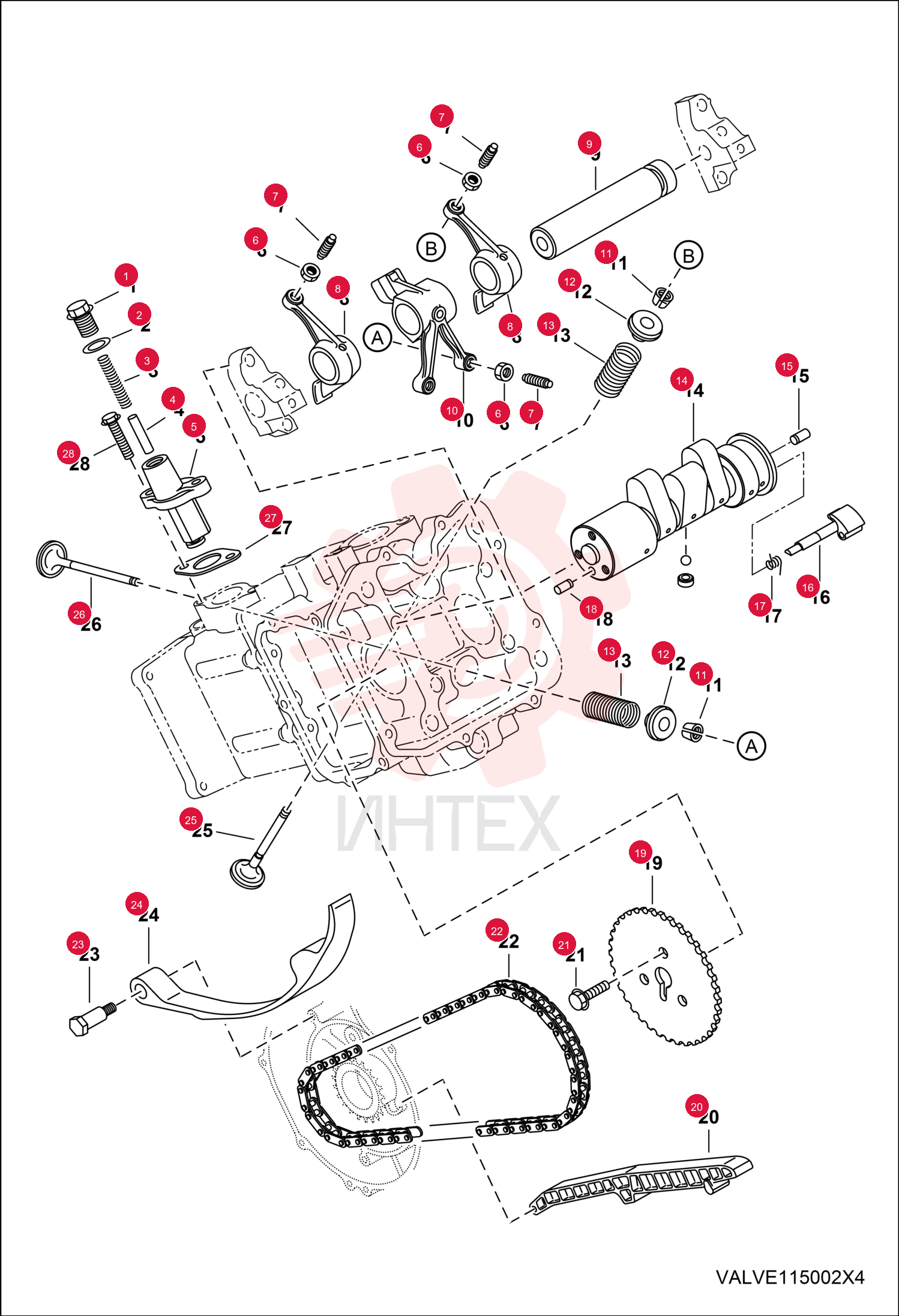

PLUG 7018811

PLUG 7018811

PLUG 7018811

1 7018811

  • 7018811 - PLUG

2 7018812

  • 7018812 - GASKET
  • PLUG

3 7018813

  • 7018813 - SPRING
  • TENSIONER

4 7018814

  • 7018814 - PIN

5 7018804

  • 7018804 - TENSIONER
  • W/Ref. 1-4

6 7248212

  • 7248212 - NUT

7 7018744

  • 7018744 - NUT

8 7248214

  • 7248214 - SCREW
  • ADJUSTING

9 7018743

  • 7018743 - SCREW
  • ADJUSTING

10 7018742

  • 7018742 - ARM
  • ROCKER ASSY
  • W/Ref. 6 & 7

11 7018755

  • 7018755 - ROTOR
  • OUTER

12 7018745

  • 7018745 - ARM
  • ROCKER ASSY
  • W/Ref. 6 & 7

13 7248182

  • 7248182 - ARM
  • ROCKER ASSY

14 7018741

  • 7018741 - VALVE
  • COLLET

15 7018817

  • 7018817 - RETAINER
  • VALVE SPRING

16 7018809

  • 7018809 - SPRING
  • VALVE

17 7018809

  • 7018809 - SPRING
  • VALVE
  • Was 7248190

18 7018801

  • 7018801 - CAMSHAFT
  • W/Ref. 15-18

19 7018807

  • 7018807 - PIN
  • STRAIGHT

20 7018786

  • 7018786 - LEVER
  • RELEASE

21 7018781

  • 7018781 - SPRING
  • RETURN

22 7018924

  • 7018924 - PIN
  • STRAIGHT
  • Was 7018859

23 7018746

  • 7018746 - SPROCKET

24 7018748

  • 7018748 - GUIDE
  • CHAIN

25 7018692

  • 7018692 - BOLT
  • W/WASHER
  • W/washer

26 7018747

  • 7018747 - CHAIN
  • TIMING

27 7018750

  • 7018750 - BOLT

28 7018749

  • 7018749 - LEVER

29 7018787

  • 7018787 - VALVE
  • INTAKE

30 7018792

  • 7018792 - VALVE
  • EXHAUST

31 7018803

  • 7018803 - GASKET
  • TENSIONER

32 7018695

  • 7018695 - BOLT
  • FLANGE
