Bobcat
/
3200
/

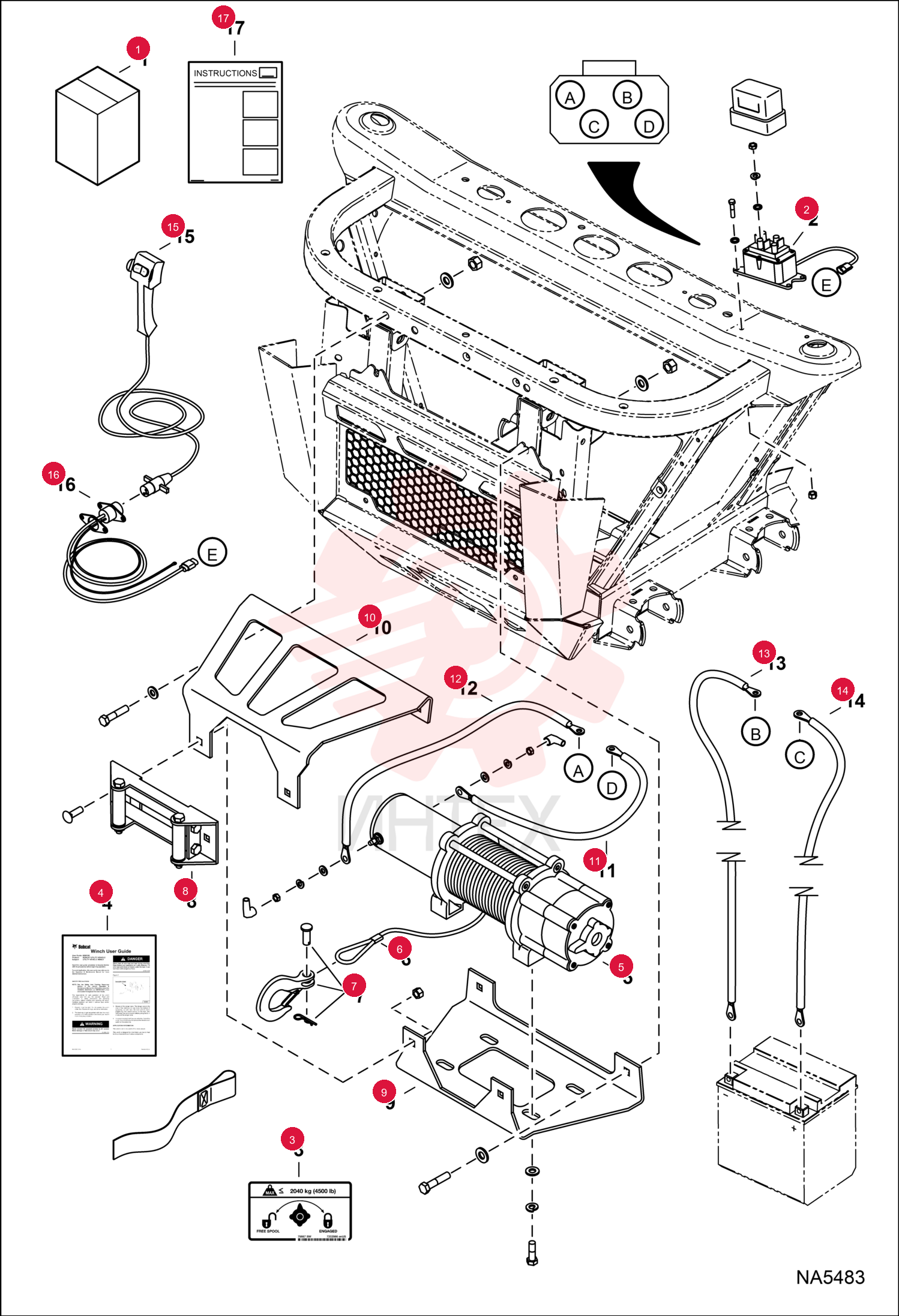

KIT, WINCH 7215327

KIT, WINCH 7215327

KIT, WINCH 7215327

1 7215327

  • 7215327 - KIT
  • WINCH
  • Ref. 2-17 - W/straight end on winch cable

2 7023992

  • 7023992 - SOLENOID
  • WINCH
  • Was 7022435

3 7202986

  • 7202986 - DECAL
  • WINCH

4 6990128

  • 6990128 - GUIDE
  • USER WINCH

5 7023989

  • 7023989 - WINCH
  • Also order Ref. 6 & 7

6 7024003

  • 7024003 - CABLE
  • WINCH
  • W/straight end to be threaded through hole in spool and secured with a set screw

7 7024034

  • 7024034 - CABLE
  • WINCH
  • W/ring terminal for attaching to spool

8 7023991

  • 7023991 - HOOK
  • WINCH

9 7023990

  • 7023990 - ROLLER
  • WINCH

10 7024001

  • 7024001 - BRACKET
  • MOUNTING WINCH
  • lower

11 7024002

  • 7024002 - BRACKET
  • MOUNTING WINCH
  • upper

12 7260663

  • 7260663 - CABLE
  • Was 7023996

13 7260662

  • 7260662 - CABLE
  • Was 7023995

14 7260664

  • 7260664 - CABLE
  • Was 7023997

15 7260665

  • 7260665 - CABLE
  • Was 7023998

16 7023993

  • 7023993 - SWITCH
  • MOMENTARY REMOTE
  • Also Order Ref. 16 if winch cable has ring terminal design

17 7023994

  • 7023994 - SOCKET
  • WINCH
  • Also Order Ref. 15 if winch cable has ring terminal design

18 6990361

  • 6990361 - INSTRUCTIONS
  • Was 6989758
