Bobcat
/
337.0
/

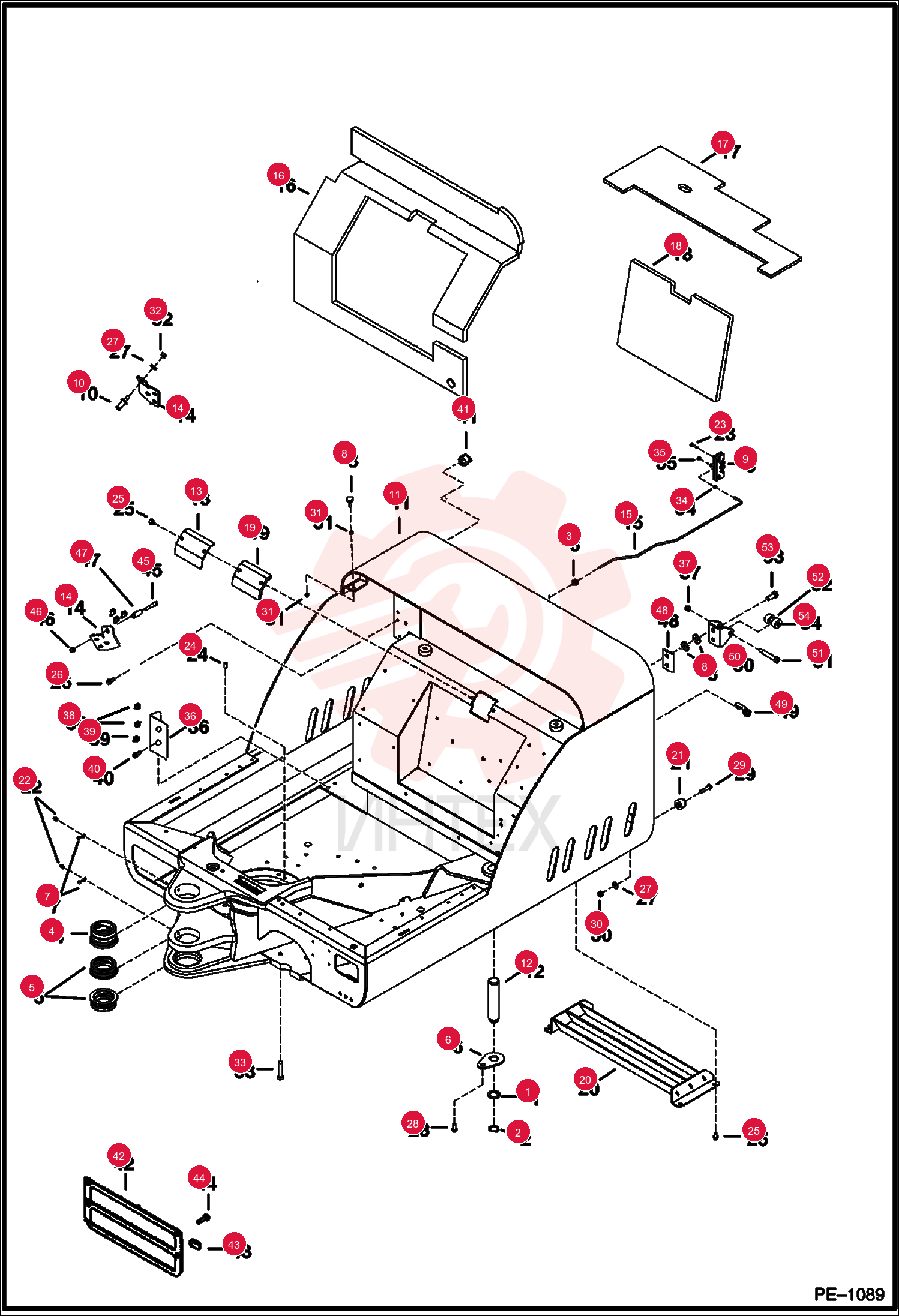

WASHER, 5 6534111 (1)

WASHER, 5 6534111 (1)

WASHER, 5 6534111 (1)

1 6534111

  • 6534111 - WASHER
  • 5

2 6534154

  • 6534154 - RING
  • RETAINER

3 6599613

  • 6599613 - GROMMET

4 6628101

  • 6628101 - BUSHING

5 6628102

  • 6628102 - BUSHING

6 6628460

  • 6628460 - PLATE

7 6652943

  • 6652943 - COVER
  • grease fitting

8 6655399

  • 6655399 - BUMPER

9 6675687

  • 6675687 - LATCH

10 6676341

  • 6676341 - STRIKER

11 6810130

  • 6810130 - UPPERSTRUCTURE

12 6808306

  • 6808306 - HINGE PLATE

13 6806737

  • 6806737 - PIN

14 6806873

  • 6806873 - COVER

15 6810655

  • 6810655 - MOUNT
  • latch

16 6807363

  • 6807363 - ROD

17 6810250

  • 6810250 - INSULATION

18 6807894

  • 6807894 - INSULATION

19 6810249

  • 6810249 - INSULATION
  • Was 6807899

20 6807904

  • 6807904 - INSULATION

21 6808051

  • 6808051 - LOUVER

22 6808365

  • 6808365 - BUMPER

23 10H25

  • 10H25 - FTG GREASE STRAIGHT

24 1CM630

  • 1CM630 - SCREW HEX HD 8.8

25 20JM1025

  • 20JM1025 - DOWEL PIN

26 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

27 26GM10030

  • 26GM10030 - SCREW SELF TAPPING

28 27E6

  • 27E6 - WASHER HARDEN PLAIN

29 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

30 29CM1050

  • 29CM1050 - BOLT

31 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

32 61D5

  • 61D5 - NUT HEX FINISHED GR5

33 61D7

  • 61D7 - NUT

34 55CM1470

  • 55CM1470 - SCREW
  • Was 7CM01470B

35 7D4

  • 7D4 - NUT HEX JAM

36 85D4

  • 85D4 - NUT 5

37 7113354

  • 7113354 - GROMMET
  • Was 6810122

38 59D6

  • 59D6 - NUT LOCK HEX PT

39 6810171

  • 6810171 - GROMMET

40 6810172

  • 6810172 - GROMMET

41 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

42 6810133

  • 6810133 - GROMMET

43 6810578

  • 6810578 - LOUVER

44 6676026

  • 6676026 - NUT
  • clip

45 6809030

  • 6809030 - SCREW

46 17C640

  • 17C640 - BOLT

47 55D6

  • 55D6 - NUT

48 6719550

  • 6719550 - TUBE

49 6810802

  • 6810802 - STRIKER
  • bar

50 6678025

  • 6678025 - LOCK
  • W/O key - Ignition key 6693241

51 6693241

  • 6693241 - KEY (2)
  • ignition - single key W/O ring

52 6809727

  • 6809727 - CHANNEL

53 38C840

  • 38C840 - BOLT

54 6809726

  • 6809726 - ROLLER

55 17C820

  • 17C820 - BOLT 5

56 6809734

  • 6809734 - BUSHING
