Bobcat
/
337.0
/

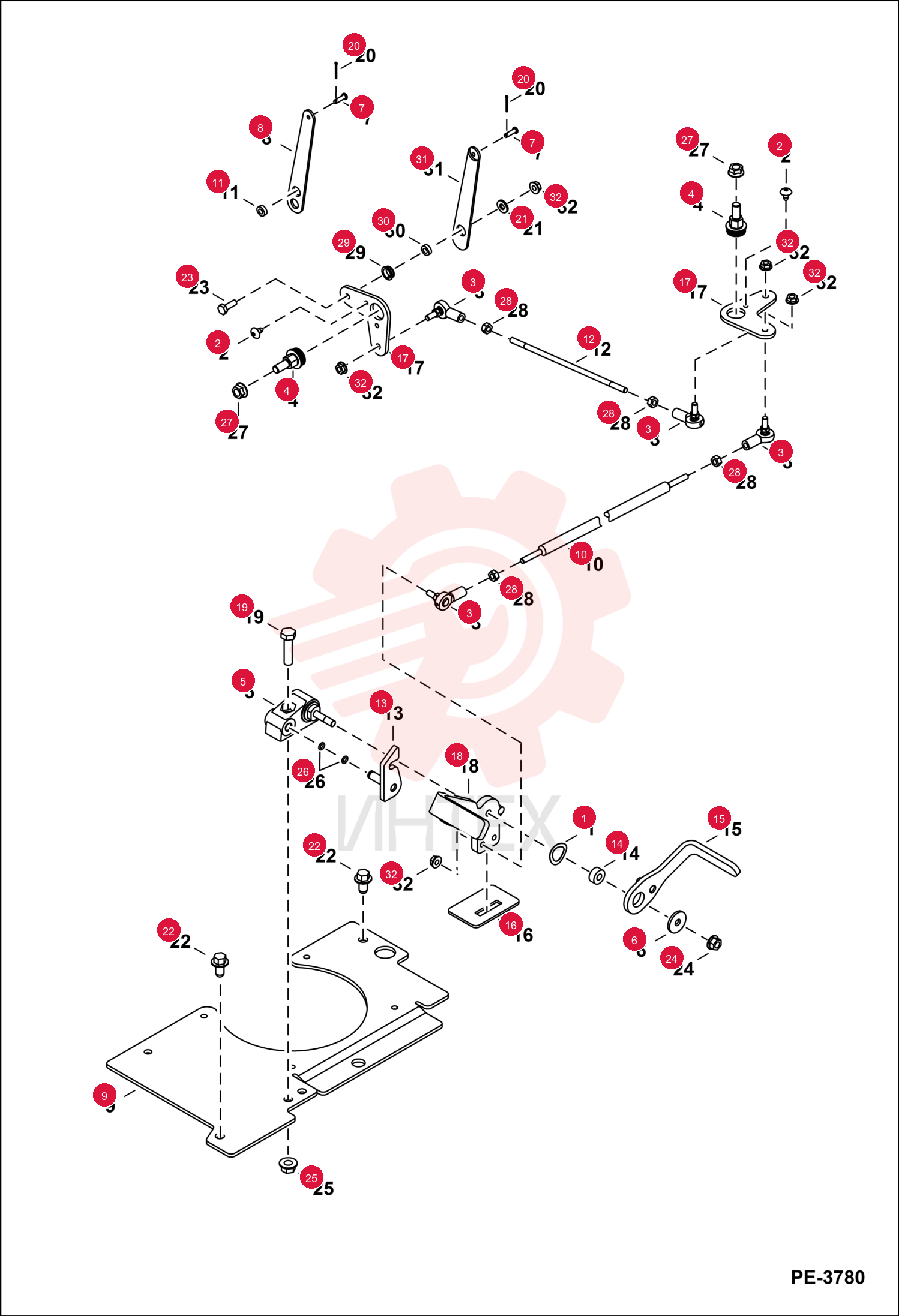

WASHER 6536803 (5)

WASHER 6536803 (5)

WASHER 6536803 (5)

1 6536803

  • 6536803 - WASHER
  • wavy

2 6589675

  • 6589675 - SCREW

3 6631036

  • 6631036 - BALLJOINT

4 6675992

  • 6675992 - BEARING

5 6677908

  • 6677908 - BEARING
  • LH

6 6701174

  • 6701174 - WASHER FLAT

7 6801068

  • 6801068 - PIN

8 6807370

  • 6807370 - MOUNT

9 6808002

  • 6808002 - ROD

10 6808004

  • 6808004 - ROD

11 6809194

  • 6809194 - LOCK

12 6810303

  • 6810303 - SPACER

13 6810508

  • 6810508 - PEDAL

14 6812070

  • 6812070 - SEAL

15 6812938

  • 6812938 - BELLCRANK

16 6816109

  • 6816109 - PEDAL

17 1CM1040

  • 1CM1040 - BOLT

18 1F212

  • 1F212 - PIN
  • cotter

19 25E13

  • 25E13 - WASHER FLAT PLAIN

20 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

21 18C412

  • 18C412 - BOLT
  • Was 2C412

22 47DM8

  • 47DM8 - NUT HEX FLNG MPT

23 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

24 54K20008

  • 54K20008 - O-RING

25 83D6

  • 83D6 - LKNUT HEX FLG GR8
  • Was 57D6

26 62D4

  • 62D4 - NUT HEX FINISHED GR5

27 6698186

  • 6698186 - BEARING
  • CLIP
  • modified design - Use W/Ref. 30 & 31

28 7155449

  • 7155449 - SPACER
  • modified design - Use W/Ref. 29 & 31

29 7157294

  • 7157294 - LINK
  • SPOOL
  • modified design - Use W/Ref. 29 & 30

30 98D4

  • 98D4 - NUT
  • Was 62D4
