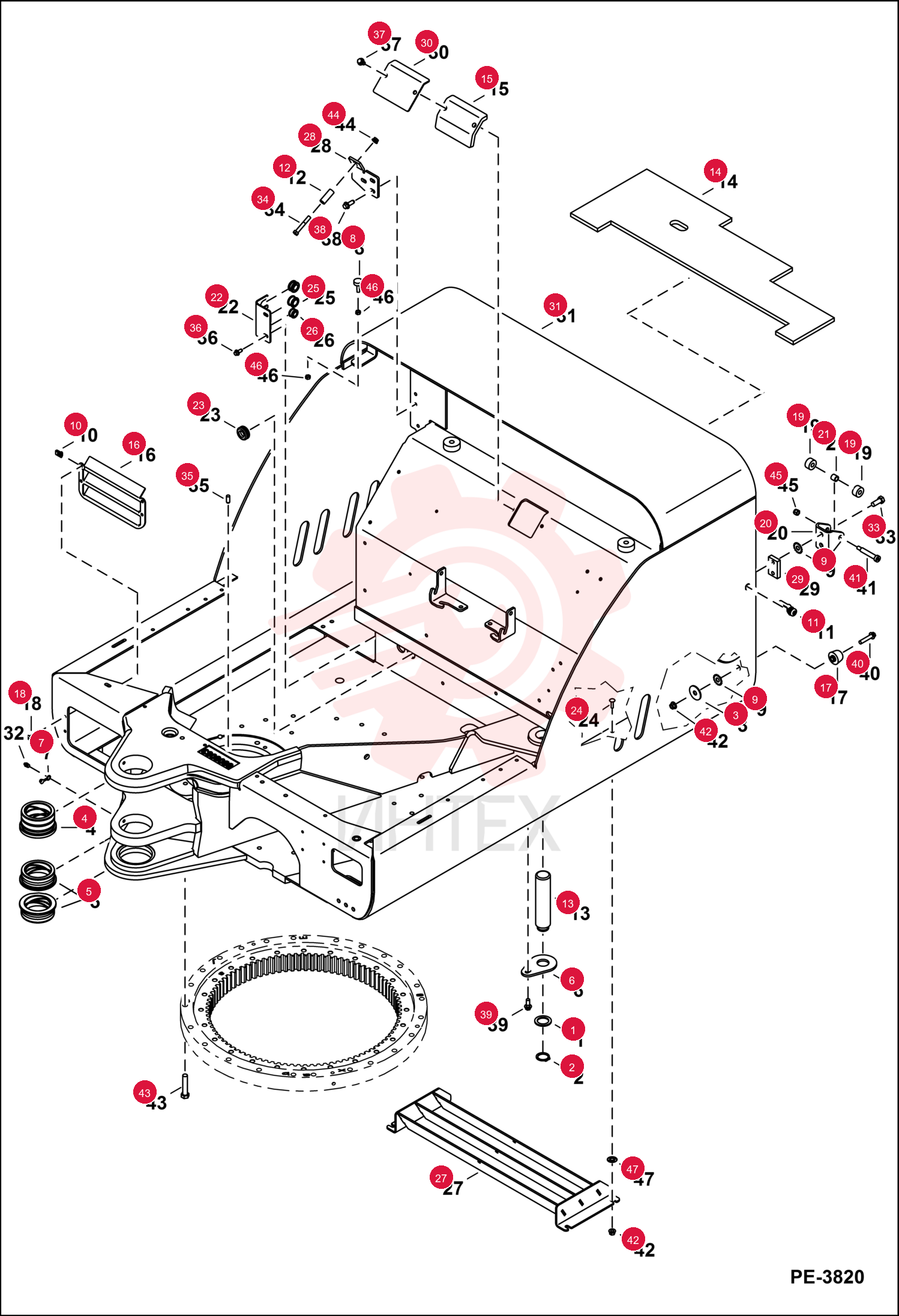

WASHER, 5 6534111 (3)

WASHER, 5 6534111 (3)

WASHER, 5 6534111 (3)

1 6534111

  • 6534111 - WASHER
  • 5

2 6534154

  • 6534154 - RING
  • RETAINER

3 6560899

  • 6560899 - WASHER

4 6628101

  • 6628101 - BUSHING

5 6628102

  • 6628102 - BUSHING

6 6628460

  • 6628460 - PLATE

7 6652943

  • 6652943 - COVER
  • grease fitting

8 6655399

  • 6655399 - BUMPER

9 6675273

  • 6675273 - WASHER
  • lock

10 6676026

  • 6676026 - NUT
  • clip

11 6678025

  • 6678025 - LOCK
  • W/O key - Ignition key 6693241

12 6719550

  • 6719550 - TUBE

13 6806737

  • 6806737 - PIN

14 6807894

  • 6807894 - INSULATION

15 6807904

  • 6807904 - INSULATION

16 6808051

  • 6808051 - LOUVER

17 6808365

  • 6808365 - BUMPER

18 6809030

  • 6809030 - SCREW

19 6809726

  • 6809726 - ROLLER

20 6809727

  • 6809727 - CHANNEL

21 6809734

  • 6809734 - BUSHING

22 7113354

  • 7113354 - GROMMET

23 6810133

  • 6810133 - GROMMET

24 28CM1030

  • 28CM1030 - BOLT CARRIAGE 8.8
  • as shown - Use W/Ref. 42 & 47

25 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG
  • from the bottom up - Use W/O Ref. 42 & 47

26 6810171

  • 6810171 - GROMMET

27 6810172

  • 6810172 - GROMMET

28 6810578

  • 6810578 - LOUVER

29 6810655

  • 6810655 - MOUNT
  • latch

30 6810802

  • 6810802 - STRIKER
  • bar

31 6816756

  • 6816756 - COVER

32 6816957

  • 6816957 - UPPERSTRUCTURE 337G-341G
  • W/tailgate hinge plate 6808306 & latch mount 6809823

33 10H25

  • 10H25 - FTG GREASE STRAIGHT

34 17C820

  • 17C820 - BOLT 5

35 17C640

  • 17C640 - BOLT

36 20JM1025

  • 20JM1025 - DOWEL PIN

37 26GM8020

  • 26GM8020 - SCREW SELF TAPPING

38 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

39 26GM10030

  • 26GM10030 - SCREW SELF TAPPING

40 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP

41 29CM1050

  • 29CM1050 - BOLT

42 38C840

  • 38C840 - BOLT

43 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

44 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

45 55CM1470

  • 55CM1470 - SCREW

46 55D6

  • 55D6 - NUT

47 59D6

  • 59D6 - NUT LOCK HEX PT

48 61D5

  • 61D5 - NUT HEX FINISHED GR5

49 6674264

  • 6674264 - RETAINER BOLT
