Bobcat
/
337.0
/

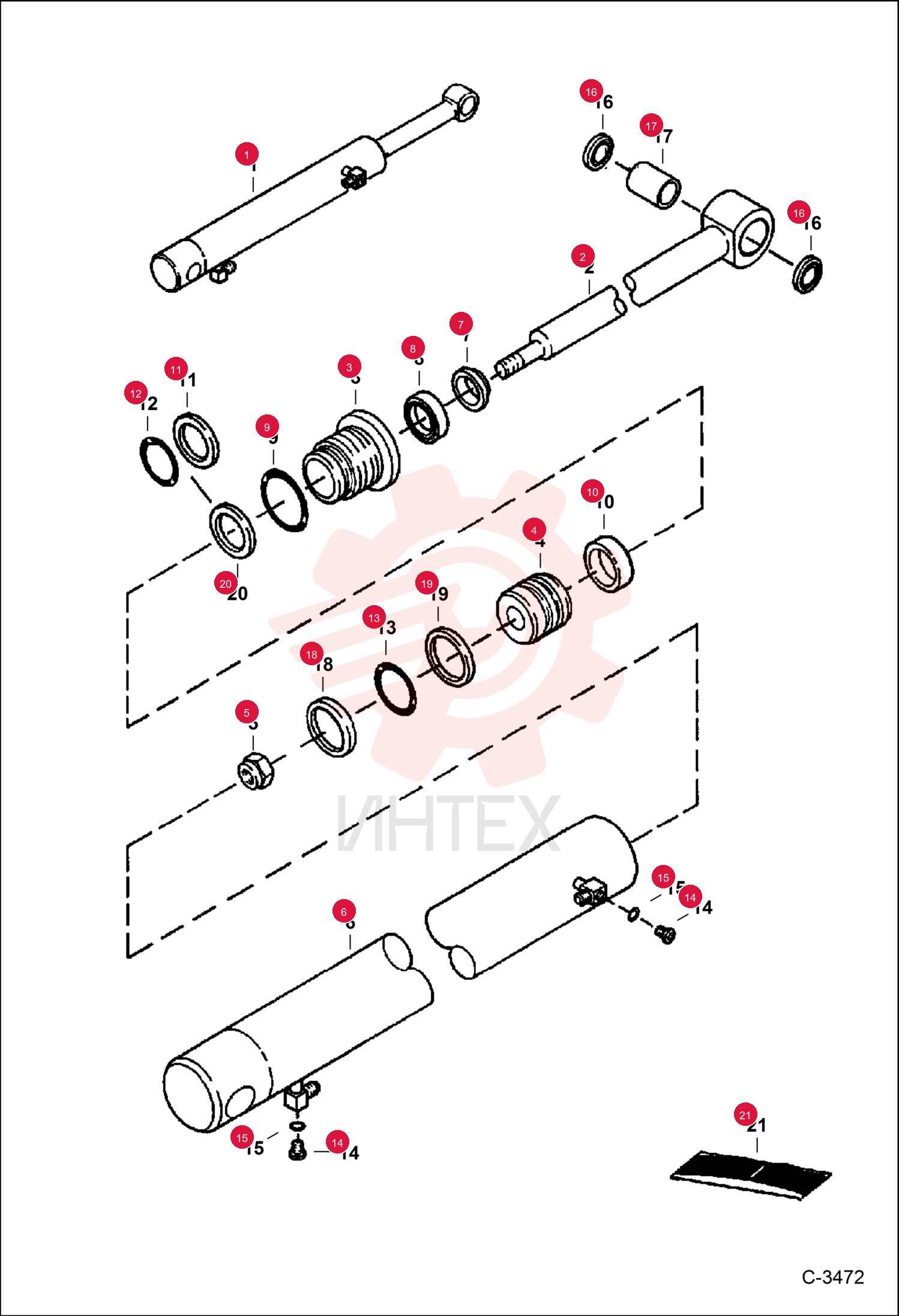

O-RING 10 58K012 (1)

O-RING 10 58K012 (1)

O-RING 10 58K012 (1)

1 58K012

  • 58K012 - O-RING 10
  • cylinder fittings

2 6537294

  • 6537294 - HEAD

3 6810818

  • 6810818 - PISTON
  • does not use spacer Ref. 10

4 6810540

  • 6810540 - NUT
  • Was 92D000020B

5 6807583

  • 6807583 - TUBING
  • Was 6803356

6 6686998

  • 6686998 - WIPER
  • ROD CYL
  • Was 6666545

7 6667328

  • 6667328 - SEAL

8 82K236

  • 82K236 - O-RING
  • Was 58K000236B

9 73K234

  • 73K234 - RING
  • BACK-UP
  • back-up - Was 80K234

10 54K40300

  • 54K40300 - O-RING
  • Was 58K234

11 54K30226

  • 54K30226 - O-RING
  • Was 25K30226

12 24K5

  • 24K5 - PLUG
  • W/Ref. 15 - Was 90KV5

13 95K6

  • 95K6 - O'RING
  • Was 79K000006B

14 6669287

  • 6669287 - SEAL

15 6802371

  • 6802371 - BUSHING

16 7000778

  • 7000778 - RING
  • WEAR
  • Was 6698180

17 6513466

  • 6513466 - PISTON RG
  • piston

18 7137577

  • 7137577 - SEAL KIT
  • Ref. 5 & 7-13 - Was 6810720
