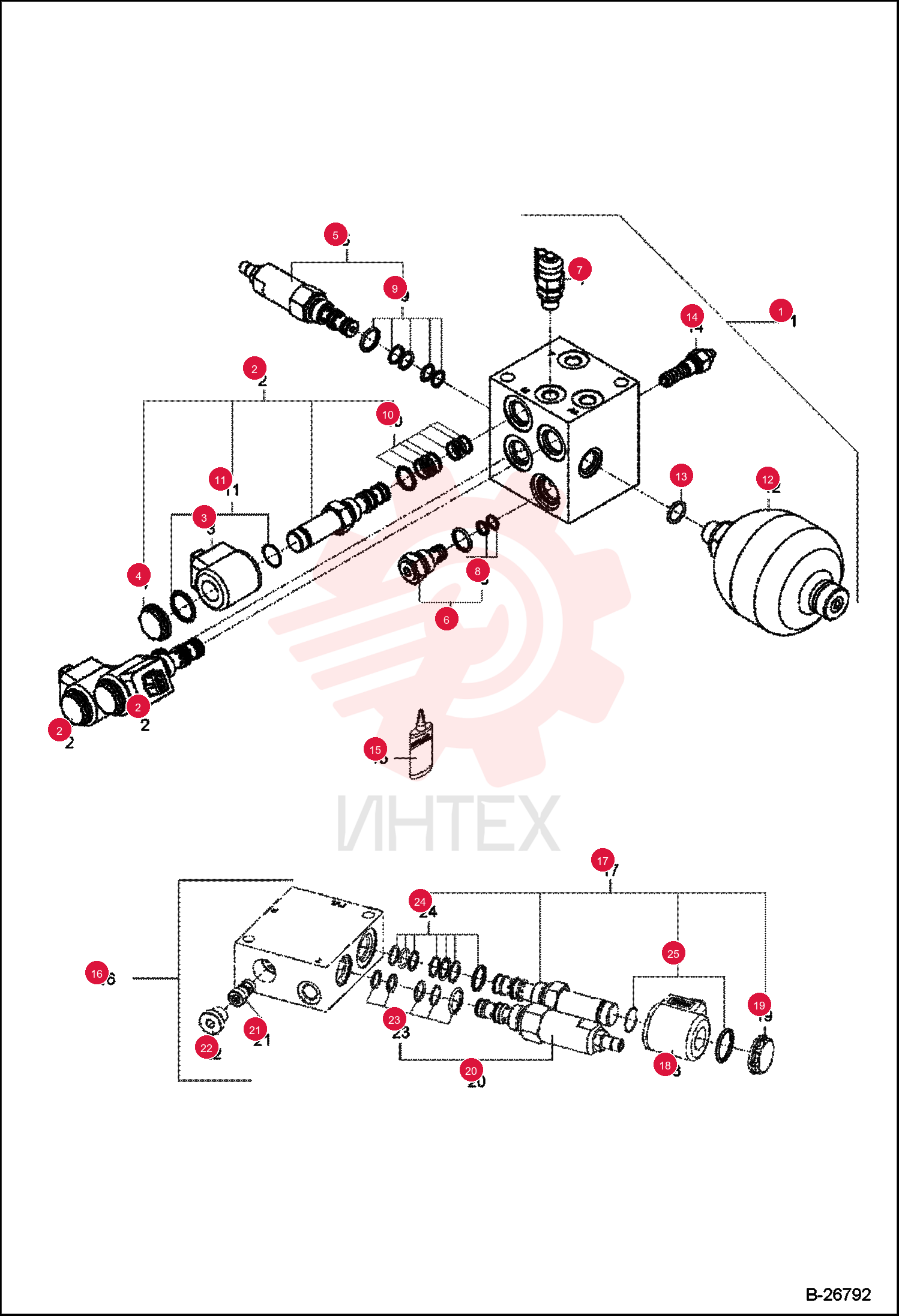

VALVE ASSEMBLY 5368632563 (1)

VALVE ASSEMBLY 5368632563 (1)

VALVE ASSEMBLY 5368632563 (1)

1 5368632563

  • 5368632563 - VALVE ASSEMBLY
  • W/Ref. 2-13

2 5368655678

  • 5368655678 - SOLENOID ASSEMBLY

3 5368655687

  • 5368655687 - COIL

4 5368655692

  • 5368655692 - NUT

5 5368655693

  • 5368655693 - CHECK VALVE

6 5368655694

  • 5368655694 - PRESS RELIEF VALVE

7 5066234000

  • 5066234000 - TEST FITTING

8 5368655695

  • 5368655695 - SEAL KIT

9 5368655696

  • 5368655696 - SEAL KIT

10 5368655697

  • 5368655697 - SEAL KIT

11 5368655698

  • 5368655698 - SEAL KIT

12 5368655699

  • 5368655699 - ACCUMULATOR

13 5368655700

  • 5368655700 - O-RING

14 5368632565

  • 5368632565 - VALVE ASSEMBLY
  • W/Ref. 15-23

15 5368655688

  • 5368655688 - SOLENOID ASSEMBLY

16 5368655687

  • 5368655687 - COIL

17 5368655692

  • 5368655692 - NUT

18 5368655701

  • 5368655701 - FLOW REGULATOR

19 5368655702

  • 5368655702 - SPOOL

20 5368655703

  • 5368655703 - PLUG

21 5368655696

  • 5368655696 - SEAL KIT

22 5368655697

  • 5368655697 - SEAL KIT

23 5368655698

  • 5368655698 - SEAL KIT
