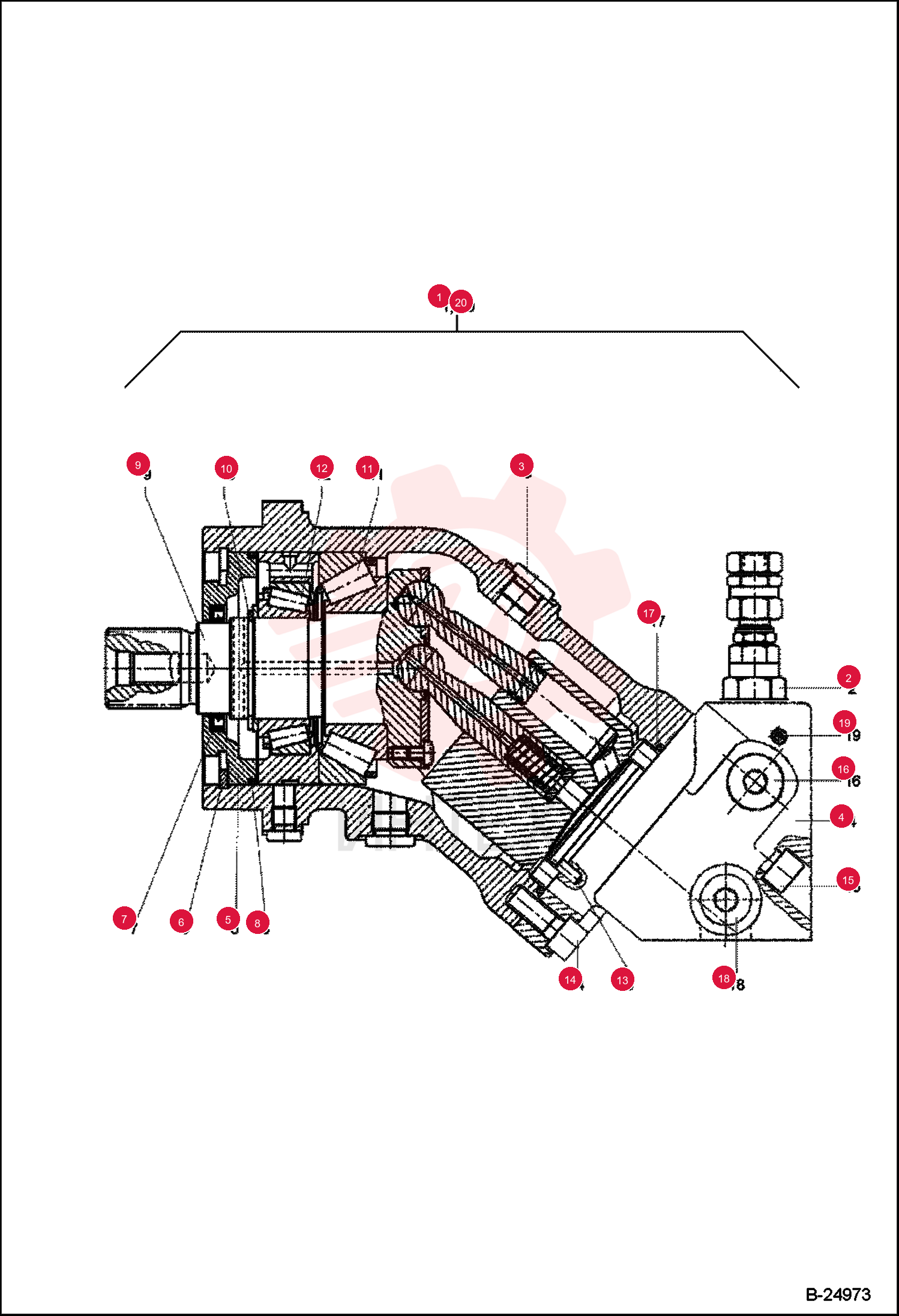

TRAVEL MOTOR 5364664075 (3)

TRAVEL MOTOR 5364664075 (3)

TRAVEL MOTOR 5364664075 (3)

1 5364664075

  • 5364664075 - TRAVEL MOTOR

2 5364663370

  • 5364663370 - VALVE INSERT

3 5364663341

  • 5364663341 - PLUG

4 5364663371

  • 5364663371 - CONNECTION PLATE
  • W/Ref. 13-19

5 5364663360

  • 5364663360 - LOCKING RING

6 1456622765

  • 1456622765 - CIRCLIP

7 5364656264

  • 5364656264 - SHAFT SEAL

8 5364663064

  • 5364663064 - O-RING

9 5364663361

  • 5364663361 - SHAFT

10 1456622141

  • 1456622141 - CIRCLIP

11 5364656197

  • 5364656197 - TAP.ROLLER BEARING

12 5364656198

  • 5364656198 - TAP.ROLLER BEARING

13 5364656195

  • 5364656195 - PIN

14 1045707318

  • 1045707318 - BOLT

15 1045707120

  • 1045707120 - BOLT

16 5364663287

  • 5364663287 - PLUG

17 1971958663

  • 1971958663 - O-RING

18 5364663292

  • 5364663292 - PLUG

19 5364656173

  • 5364656173 - PLUG

20 7254243

  • 7254243 - KIT
  • SEAL
  • Was 5364664266
