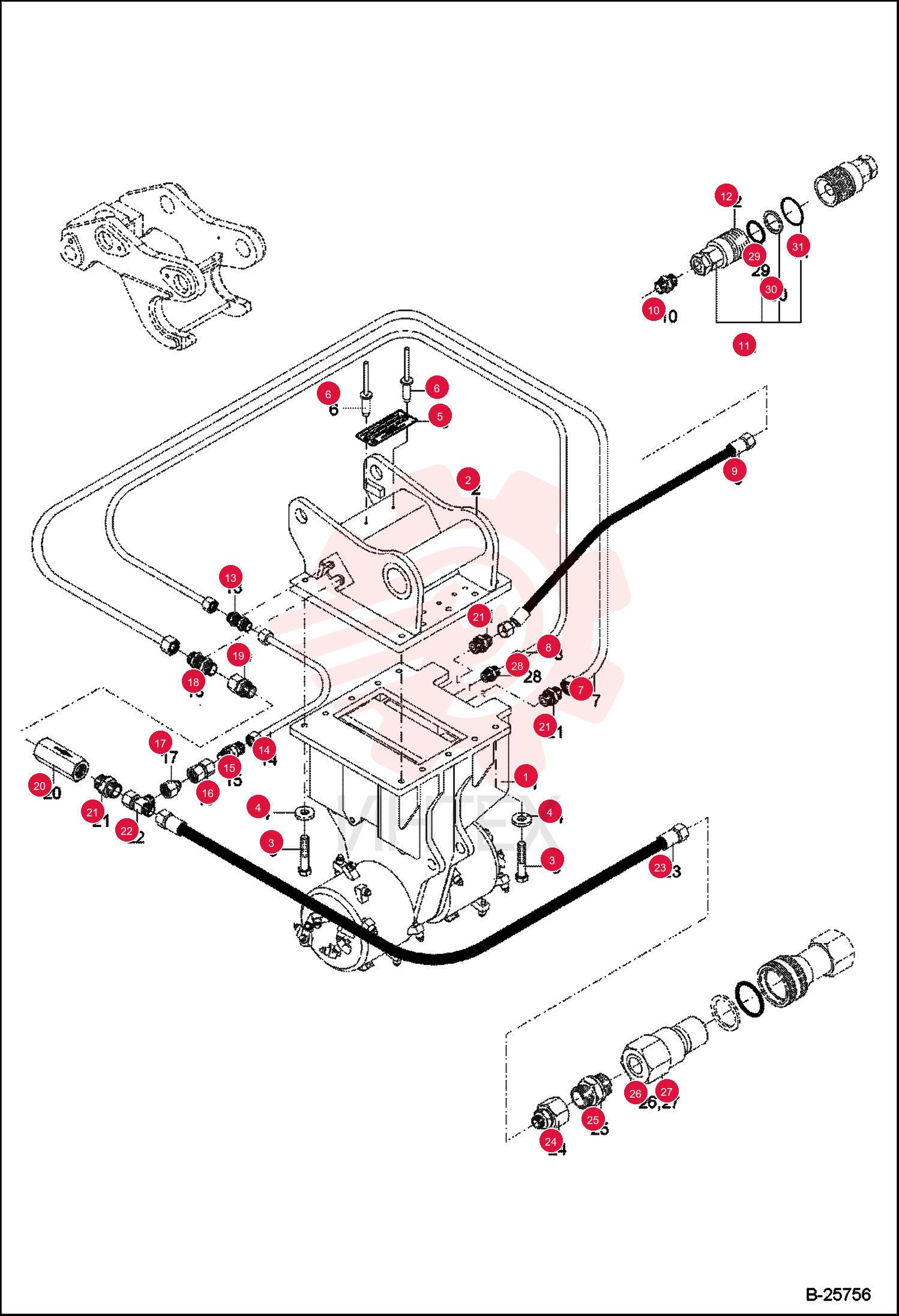

TRANSVERSE CUTTING UNIT 6389590000

TRANSVERSE CUTTING UNIT 6389590000

TRANSVERSE CUTTING UNIT 6389590000

1 6389590000

  • 6389590000 - TRANSVERSE CUTTING UNIT

2 6190252002

  • 6190252002 - CUTTING UNIT BRACKET

3 1007907441

  • 1007907441 - BOLT

4 1990707029

  • 1990707029 - WASHER

5 1940000939

  • 1940000939 - RIVET

6 0190252056

  • 0190252056 - TUBING

7 0190252058

  • 0190252058 - TUBING

8 4266121404

  • 4266121404 - HOSE

9 1915060566

  • 1915060566 - FITTING

10 5260301140

  • 5260301140 - COUPLING SOCKET
  • W/Ref. 29-31

11 5260301147

  • 5260301147 - COVER NUT

12 1913060153

  • 1913060153 - FITTING

13 0209252010

  • 0209252010 - TUBING

14 1915991796

  • 1915991796 - CHECK VALVE

15 1915060159

  • 1915060159 - FITTING

16 1934060163

  • 1934060163 - FITTING

17 1913060155

  • 1913060155 - FITTING

18 1938060175

  • 1938060175 - FITTING

19 5167659828

  • 5167659828 - CHECK VALVE

20 1915060470

  • 1915060470 - FITTING

21 1919060355

  • 1919060355 - FITTING

22 4266150403

  • 4266150403 - HOSE

23 1934060176

  • 1934060176 - FITTING

24 1915060891

  • 1915060891 - FITTING

25 5000105100

  • 5000105100 - COUPLING PLUG

26 5000106000

  • 5000106000 - DUST CAP

27 1915060261

  • 1915060261 - FITTING

28 1970956629

  • 1970956629 - O-RING

29 5260301146

  • 5260301146 - BACK UP RING

30 1970956830

  • 1970956830 - O-RING
