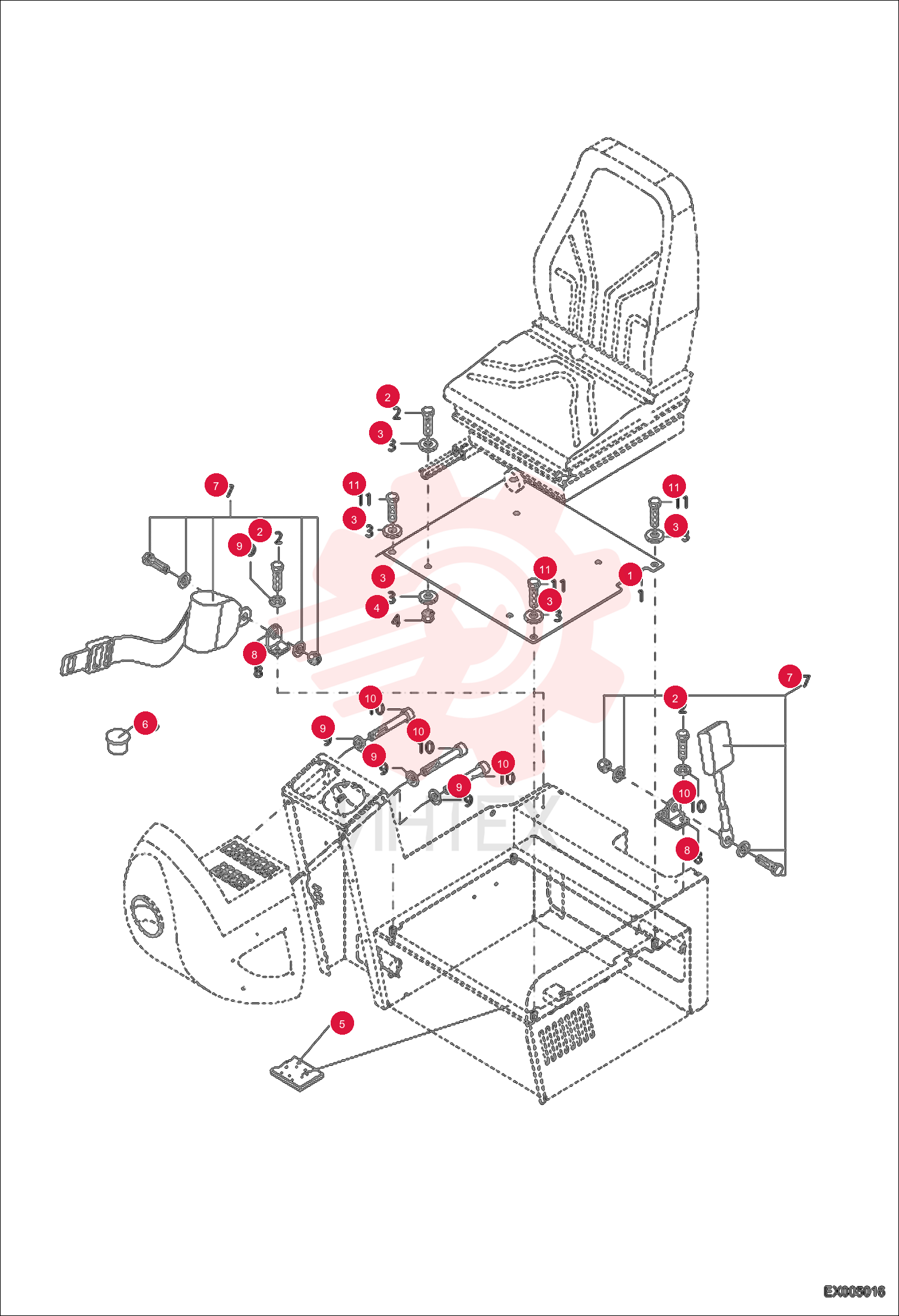

SEAT CONSOLE 6190116005 (3)

SEAT CONSOLE 6190116005 (3)

SEAT CONSOLE 6190116005 (3)

1 6190116005

  • 6190116005 - SEAT CONSOLE

2 1008707318

  • 1008707318 - BOLT

3 1343707057

  • 1343707057 - WASHER

4 1212251011

  • 1212251011 - NUT

5 5354640125

  • 5354640125 - NEOPRENE STRIP
  • sold per foot

6 1980930494

  • 1980930494 - PLUG

7 5305639665

  • 5305639665 - BELT
  • SEAT

8 6190267005

  • 6190267005 - MOUNT

9 1290707018

  • 1290707018 - WASHER

10 1045707121

  • 1045707121 - BOLT

11 1008707018

  • 1008707018 - BOLT
