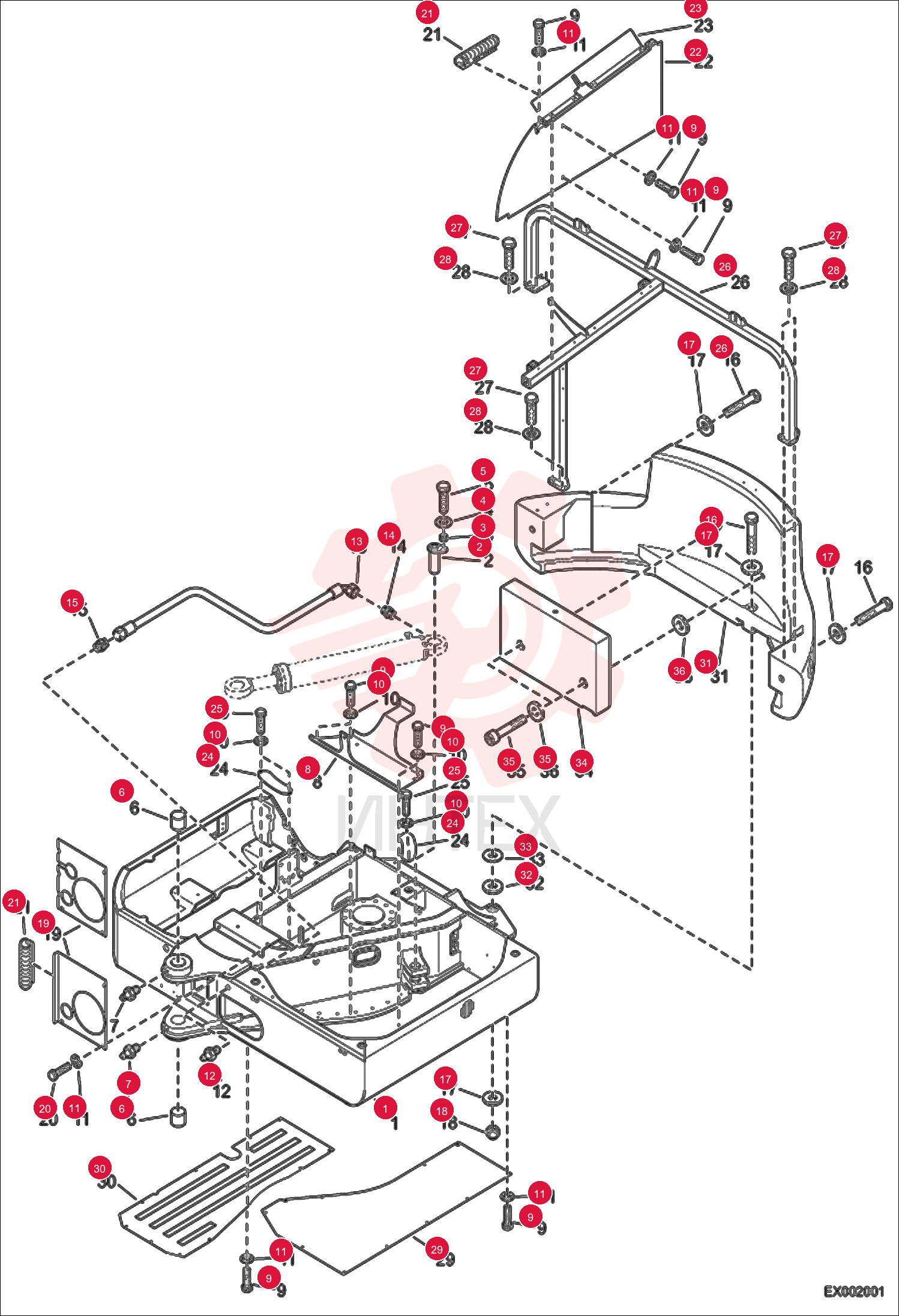

UPPER CARRIAGE 6283005001

UPPER CARRIAGE 6283005001

UPPER CARRIAGE 6283005001

1 6283005001

  • 6283005001 - UPPER CARRIAGE

2 0154624120

  • 0154624120 - PIN

3 0156029033

  • 0156029033 - SPACER

4 1343707061

  • 1343707061 - WASHER

5 1008707829

  • 1008707829 - BOLT

6 5809625676

  • 5809625676 - BUSHING

7 1607003006

  • 1607003006 - GREASE NIPPLE

8 6190006120

  • 6190006120 - BATTERY BRACKET

9 1008707018

  • 1008707018 - BOLT

10 1290707018

  • 1290707018 - WASHER

11 1343707057

  • 1343707057 - WASHER

12 1607003010

  • 1607003010 - GREASE NIPPLE

13 0190006009

  • 0190006009 - HOSE

14 1915060582

  • 1915060582 - ADAPTER

15 1915060551

  • 1915060551 - FITTING

16 1007707355

  • 1007707355 - BOLT

17 1343707069

  • 1343707069 - WASHER

18 1212251018

  • 1212251018 - NUT

19 6234006130

  • 6234006130 - SHEET-METAL

20 6234006030

  • 6234006030 - COVER

21 1008707618

  • 1008707618 - BOLT

22 6190006034

  • 6190006034 - PLATE

23 6190006036

  • 6190006036 - PLATE

24 6190006025

  • 6190006025 - PLATE

25 1008707817

  • 1008707817 - BOLT

26 0234528050

  • 0234528050 - FRAME

27 1008707030

  • 1008707030 - BOLT

28 1343707059

  • 1343707059 - WASHER

29 6190028071

  • 6190028071 - COVER

30 6283028073

  • 6283028073 - COVER
  • Was 6280028073

31 0190147010

  • 0190147010 - COUNTERWEIGHT

32 0209006046

  • 0209006046 - WASHER

33 6209006047

  • 6209006047 - WASHER

34 0234128021

  • 0234128021 - COUNTERWEIGHT
  • option

35 1045707442

  • 1045707442 - BOLT
  • option

36 1343707065

  • 1343707065 - WASHER
  • option
