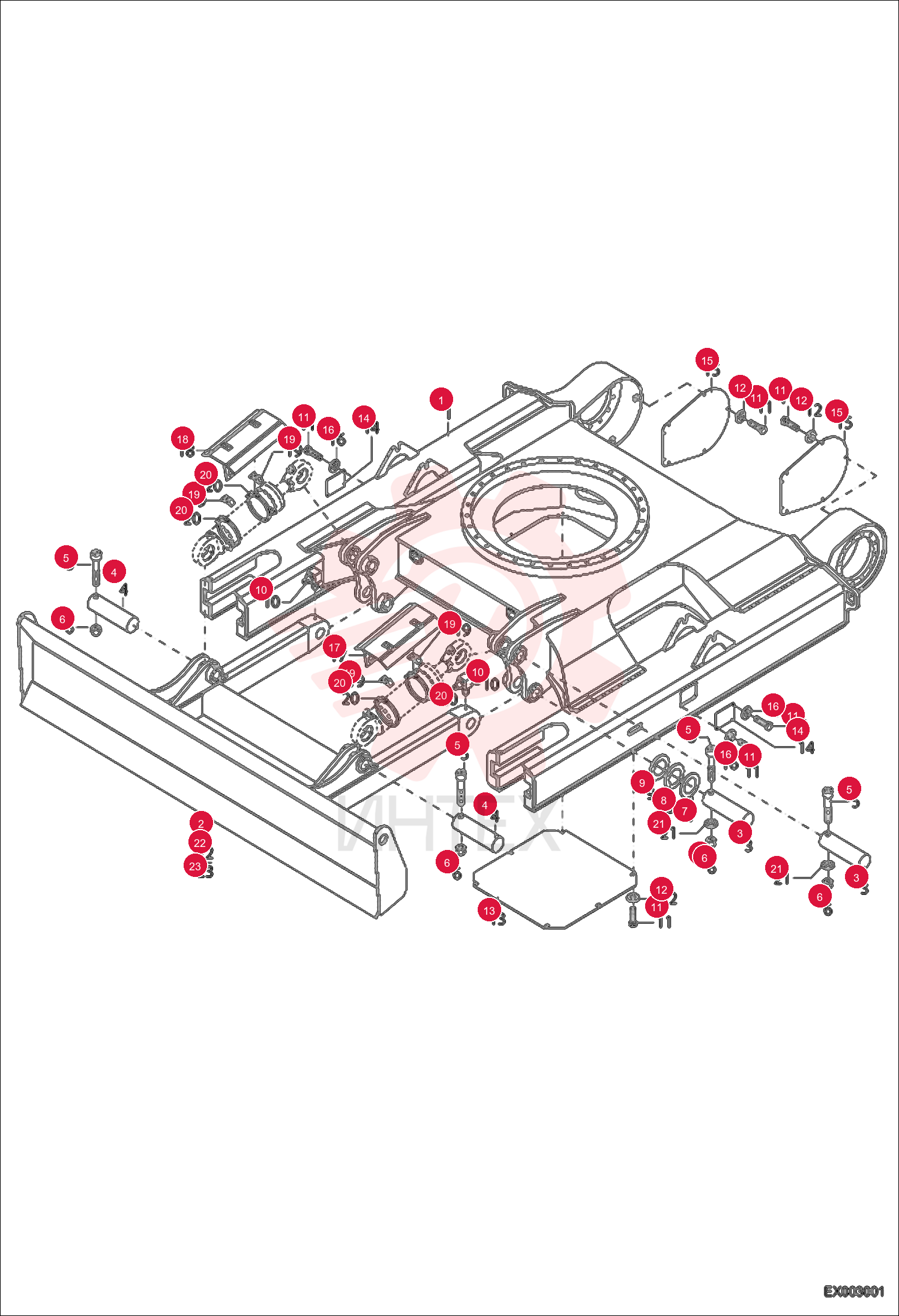

UNDER CARRIAGE 6283001105

UNDER CARRIAGE 6283001105

UNDER CARRIAGE 6283001105

1 6283001105

  • 6283001105 - UNDER CARRIAGE
  • Was 6190001005

2 0190002030

  • 0190002030 - SUPPORT BLADE
  • 2330 mm

3 0205209020

  • 0205209020 - PIN

4 0205209021

  • 0205209021 - PIN

5 1045707631

  • 1045707631 - BOLT

6 1212251014

  • 1212251014 - NUT

7 0194019227

  • 0194019227 - WASHER

8 0194019025

  • 0194019025 - WASHER

9 0194002226

  • 0194002226 - WASHER

10 1608003010

  • 1608003010 - FITTING
  • GREASE

11 1008707018

  • 1008707018 - BOLT

12 1343707057

  • 1343707057 - WASHER

13 6190002011

  • 6190002011 - COVER

14 6189602020

  • 6189602020 - COVER RUNNING WHEE

15 6190002010

  • 6190002010 - COVER

16 1290707018

  • 1290707018 - WASHER

17 0190002055

  • 0190002055 - SHIELD

18 0190002051

  • 0190002051 - PROTECTION

19 0110012050

  • 0110012050 - RUBBER LAYER

20 5660095400

  • 5660095400 - HOSE CLIP

21 1290707022

  • 1290707022 - WASHER

22 0190319002

  • 0190319002 - SUPPORT BLADE
  • 2480 mm

23 0190315002

  • 0190315002 - SUPPORT BLADE
  • extended
