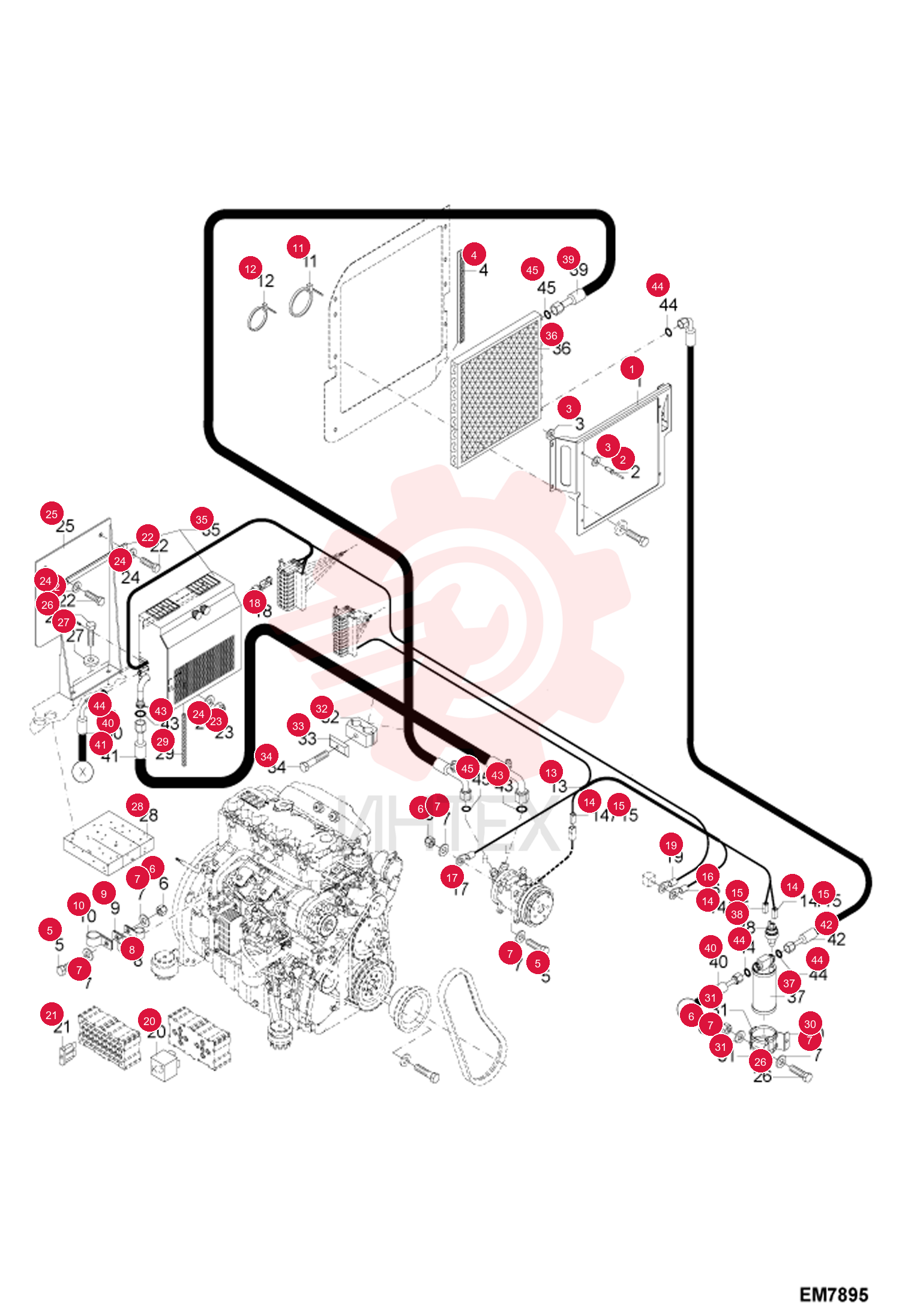

BRACKET 6234272530 (2)

BRACKET 6234272530 (2)

BRACKET 6234272530 (2)

1 6234272530

  • 6234272530 - BRACKET

2 1940000939

  • 1940000939 - RIVET

3 1307707012

  • 1307707012 - WASHER

4 5354600010

  • 5354600010 - RUBBER PROFILE

5 1008707318

  • 1008707318 - BOLT

6 1212251011

  • 1212251011 - NUT

7 1290707018

  • 1290707018 - WASHER

8 5000136800

  • 5000136800 - HOSE CLIP

9 5000210400

  • 5000210400 - HOSE CLIP

10 5000096800

  • 5000096800 - HOSE CLAMP

11 5653093560

  • 5653093560 - BINDER

12 5350650280

  • 5350650280 - BINDER

13 0234272020

  • 0234272020 - WIRE HARNESS
  • W/Ref. . 14-17

14 5350249536

  • 5350249536 - HOUSING

15 5350246815

  • 5350246815 - FEM TERMINAL

16 5350249597

  • 5350249597 - CABLE CONNECTOR

17 5350246600

  • 5350246600 - CABLE CONNECTOR

18 5350249552

  • 5350249552 - CONNECTOR

19 5350246610

  • 5350246610 - CABLE CONNECTOR

20 5050247335

  • 5050247335 - RELAY

21 5050650266

  • 5050650266 - FUSE

22 1008707213

  • 1008707213 - BOLT

23 1212251009

  • 1212251009 - NUT

24 1343707055

  • 1343707055 - WASHER

25 6183772012

  • 6183772012 - BRACKET

26 1008707018

  • 1008707018 - BOLT

27 1343707057

  • 1343707057 - WASHER

28 0190371015

  • 0190371015 - INSULATION

29 0465515052

  • 0465515052 - HOSE

30 6207772040

  • 6207772040 - SUPPORT BUCKET

31 5603320370

  • 5603320370 - HOSE CLIP

32 5660199788

  • 5660199788 - HOSE CLIP

33 5660200230

  • 5660200230 - COVER PLATE

34 1007707619

  • 1007707619 - BOLT

35 7022922

  • 7022922 - EVAPORATOR
  • Was 5436662033

36 5436662036

  • 5436662036 - CONDENSER
  • A/C

37 5436662004

  • 5436662004 - DRIER
  • A/C ASSY

38 5436662006

  • 5436662006 - PRESSURE SWITCH

39 5436662012

  • 5436662012 - HOSE

40 5436662011

  • 5436662011 - HOSE

41 5436662013

  • 5436662013 - HOSE

42 5436662010

  • 5436662010 - HOSE

43 5821662084

  • 5821662084 - O-RING

44 5436662099

  • 5436662099 - O-RING

45 7031516

  • 7031516 - O-RING
  • Was 5436662098
