Главная
/
Бренды
/
Bobcat
/
442
/

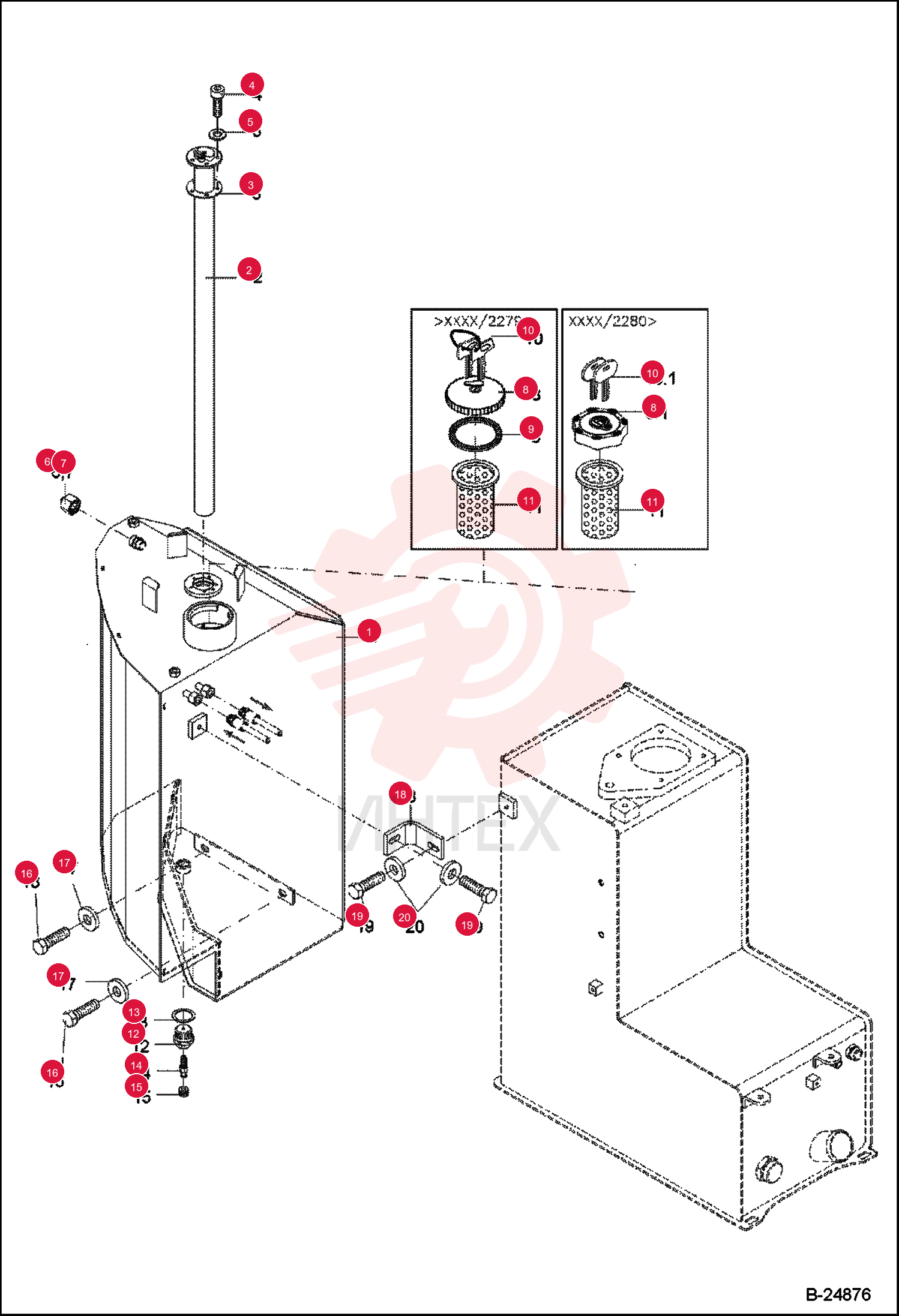

TANK FUEL 6234014002 (1)

TANK FUEL 6234014002 (1)

TANK FUEL 6234014002 (1)

1 6234014002

  • 6234014002 - TANK FUEL

2 5755628631

  • 5755628631 - SENSOR FUEL
  • Was 5755586676

3 5755586619

  • 5755586619 - SEAL

4 1045707609

  • 1045707609 - BOLT

5 1290707012

  • 1290707012 - WASHER

6 1912060357

  • 1912060357 - PLUG

7 1911060157

  • 1911060157 - UNION NUT

8 5051252652

  • 5051252652 - COVER

9 5051252630

  • 5051252630 - COVER
  • Includes Ref. 9 & 10

10 5051249910

  • 5051249910 - SEAL

11 5050650256

  • 5050650256 - KEY
  • IGN

12 5051250100

  • 5051250100 - INLET STRAINER

13 0157514025

  • 0157514025 - PLUG

14 1636815359

  • 1636815359 - SEAL RING

15 5430583070

  • 5430583070 - BLEEDING VALVE

16 5430583071

  • 5430583071 - DUST CAP

17 1008707829

  • 1008707829 - BOLT

18 1343707061

  • 1343707061 - WASHER

19 0190014014

  • 0190014014 - BRACKET

20 1008707623

  • 1008707623 - BOLT

21 1343707059

  • 1343707059 - WASHER
