Bobcat
/
442
/

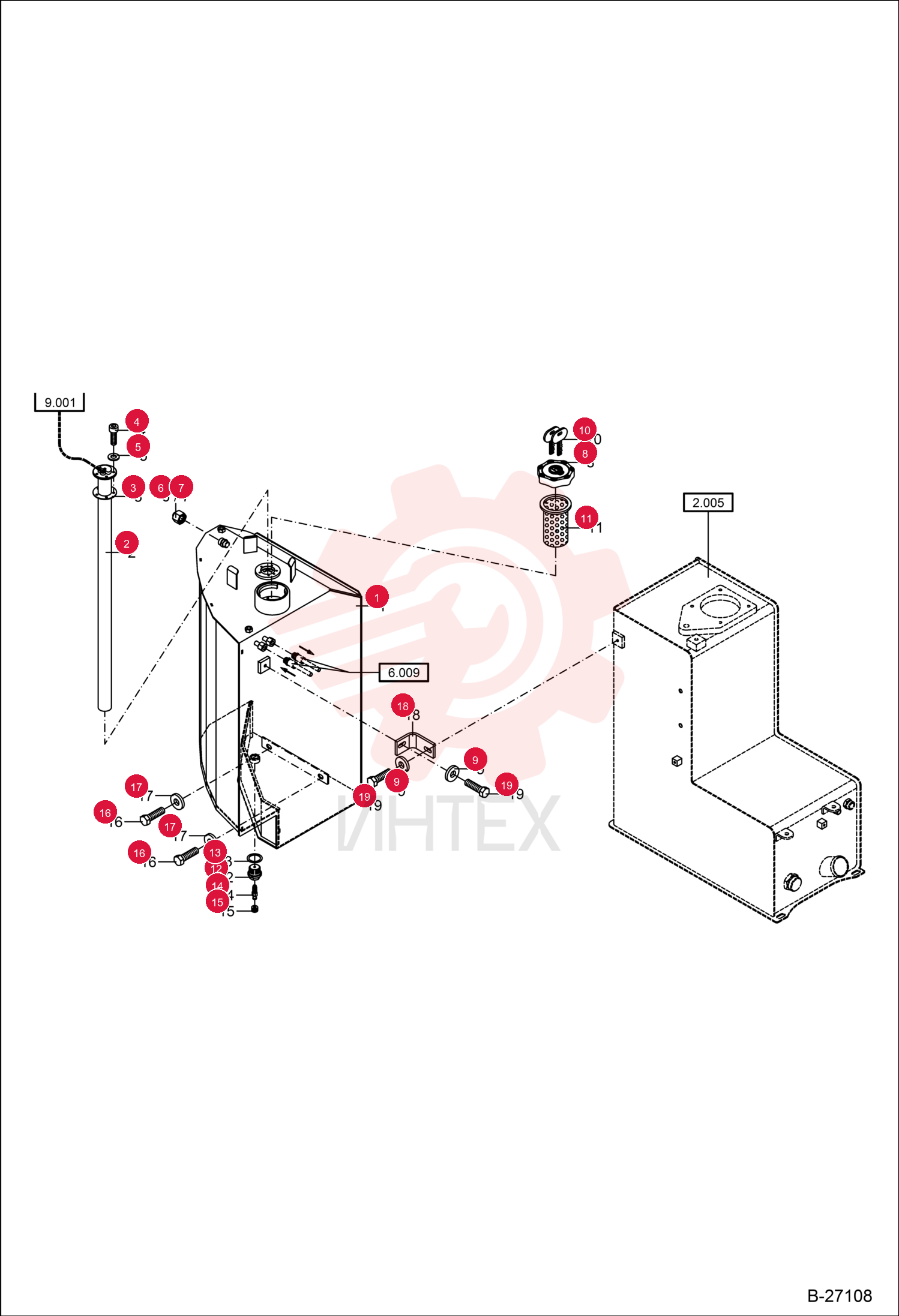

TANK FUEL 6234014002 (2)

TANK FUEL 6234014002 (2)

TANK FUEL 6234014002 (2)

1 6234014002

  • 6234014002 - TANK FUEL

2 5755628631

  • 5755628631 - SENSOR FUEL
  • Was 5755586676

3 5755586619

  • 5755586619 - SEAL

4 1045707609

  • 1045707609 - BOLT

5 1290707012

  • 1290707012 - WASHER

6 1912060357

  • 1912060357 - PLUG

7 1911060157

  • 1911060157 - UNION NUT

8 5051252652

  • 5051252652 - COVER

9 1343707059

  • 1343707059 - WASHER

10 5050650256

  • 5050650256 - KEY
  • IGN

11 5051250100

  • 5051250100 - INLET STRAINER

12 0157514025

  • 0157514025 - PLUG

13 1636815359

  • 1636815359 - SEAL RING

14 5430583070

  • 5430583070 - BLEEDING VALVE

15 5430583071

  • 5430583071 - DUST CAP

16 1008707829

  • 1008707829 - BOLT

17 1343707061

  • 1343707061 - WASHER

18 0190014014

  • 0190014014 - BRACKET

19 1008707623

  • 1008707623 - BOLT
