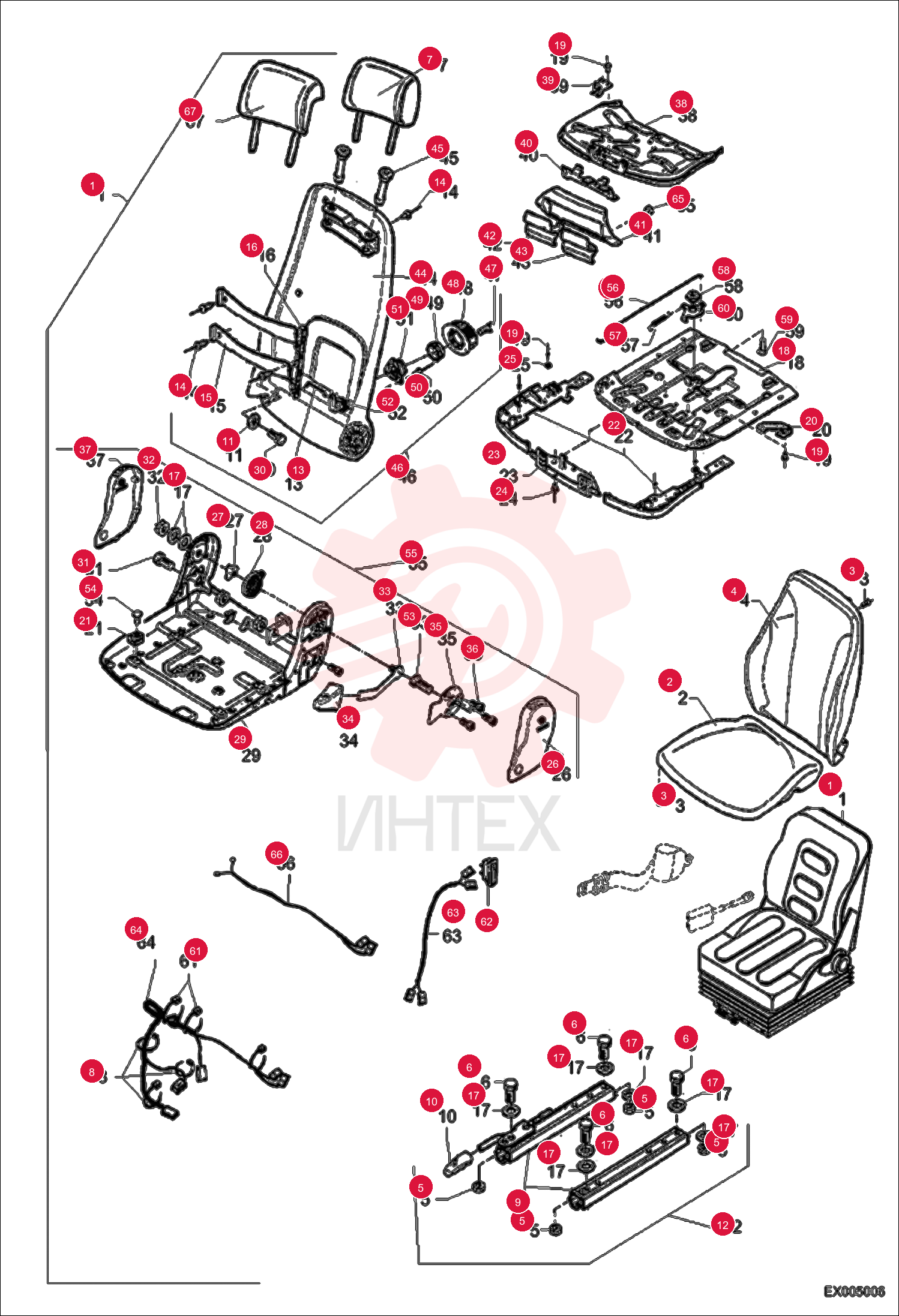

SEAT CPL 5305661755 (4)

SEAT CPL 5305661755 (4)

SEAT CPL 5305661755 (4)

1 5305661755

  • 5305661755 - SEAT CPL
  • W/Ref. 2-67

2 5305670202

  • 5305670202 - PAD
  • SEAT
  • W/Ref. 3

3 5305670315

  • 5305670315 - BOLT

4 5305670201

  • 5305670201 - PAD
  • BACKREST
  • W/Ref. 3

5 1210707011

  • 1210707011 - NUT

6 1008707817

  • 1008707817 - BOLT

7 5305670101

  • 5305670101 - HEADREST
  • option

8 5305670220

  • 5305670220 - TIE STRAP

9 5305670204

  • 5305670204 - ADJUSTABLE RAIL
  • W/Ref. 10

10 5305670190

  • 5305670190 - HANDLE

11 5305670104

  • 5305670104 - WASHER

12 5305670205

  • 5305670205 - MOUNTING PARTS CPL.
  • W/Ref. 5-6
  • 11 & 17

13 5305670206

  • 5305670206 - ROD

14 5305670134

  • 5305670134 - RIVET

15 5305670207

  • 5305670207 - PLATE

16 5305670208

  • 5305670208 - BRACKET

17 5305670200

  • 5305670200 - WASHER

18 5305670137

  • 5305670137 - PLATE
  • W/Ref. 19-20 & 23

19 5305670138

  • 5305670138 - RIVET

20 5305670139

  • 5305670139 - SUSPENSION PLATE

21 5305670140

  • 5305670140 - SLIDING BLOCK
  • Was 5305670141

22 5305670141

  • 5305670141 - COVER
  • W/Ref. 19 & 25

23 5305670032

  • 5305670032 - HANDLE
  • W/Ref. 24

24 5305670142

  • 5305670142 - RIVET

25 5305670209

  • 5305670209 - WASHER

26 5305670280

  • 5305670280 - COVER

27 5305670143

  • 5305670143 - BEARING

28 5305670034

  • 5305670034 - SPRING
  • W/Ref. 19-20 & 23

29 5305670144

  • 5305670144 - SEAT PLATE ASSY
  • W/Ref. 21 & 54

30 1008707019

  • 1008707019 - BOLT

31 1008707318

  • 1008707318 - BOLT

32 1212251011

  • 1212251011 - NUT

33 5305670035

  • 5305670035 - LEVER

34 5305670036

  • 5305670036 - HANDLE

35 5305670437

  • 5305670437 - ADAPTER PLATE

36 5305670038

  • 5305670038 - BOLT

37 5305670282

  • 5305670282 - COVER

38 5305670193

  • 5305670193 - ROCKER
  • W/Ref. 3 & 39

39 5305670146

  • 5305670146 - SUSPENSION PLATE
  • W/Ref. 19

40 5305670040

  • 5305670040 - LEVER
  • W/Ref. 13-16 & 48-52

41 5305670147

  • 5305670147 - COVER
  • W/Ref. 3

42 5305670041

  • 5305670041 - HANDLE
  • W/Ref. 39

43 5305670042

  • 5305670042 - HANDLE

44 5305670194

  • 5305670194 - BACK REST
  • W/Ref. 14 & 50

45 5305670149

  • 5305670149 - SLEEVE

46 5305670211

  • 5305670211 - BACK SUPPORT ASSY
  • W/Ref. 13-14 & 48-52

47 1045707512

  • 1045707512 - BOLT

48 5305670212

  • 5305670212 - HANDLE CPL
  • W/Ref. 47

49 5305670213

  • 5305670213 - PINION

50 5305670214

  • 5305670214 - RIVET

51 5305670215

  • 5305670215 - BRAKE

52 5305670216

  • 5305670216 - BRACKET

53 5305670152

  • 5305670152 - BOLT

54 5305670153

  • 5305670153 - RIVET

55 5305670154

  • 5305670154 - MOUNTING PARTS BACKR
  • W/Ref. 11
  • 27-28
  • 30-36 & 53

56 5305670155

  • 5305670155 - ROD

57 5305670043

  • 5305670043 - SPRING

58 5305670156

  • 5305670156 - RING

59 5305670157

  • 5305670157 - BOLT

60 5305670195

  • 5305670195 - LEVER
  • W/Ref. 57-59

61 5305670220

  • 5305670220 - TIE STRAP

62 5305670096

  • 5305670096 - SWITCH FLIP

63 5305670222

  • 5305670222 - WIRE HARNESS

64 5305670223

  • 5305670223 - WIRE HARNESS

65 5305670026

  • 5305670026 - BOLT

66 0190117010

  • 0190117010 - WIRE HARNESS
  • option

67 5305670367

  • 5305670367 - HEADREST
  • option
