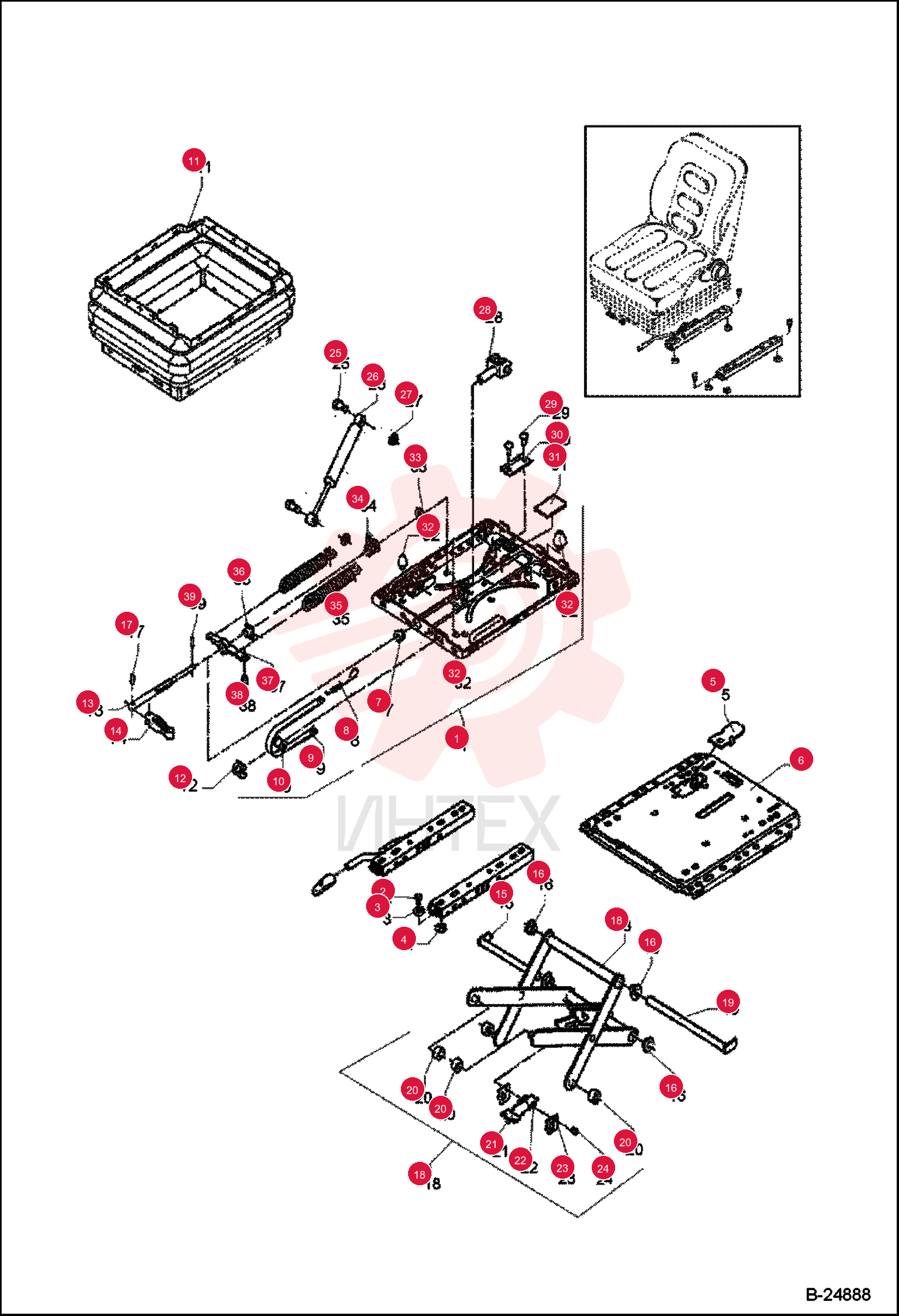

OPERATOR SEAT - BOT 5305670187 (1)
1 5305670187
- 5305670187 - OPERATOR SEAT - BOT
- W/Ref. 30-32
2 1045707018
- 1045707018 - BOLT
3 5305670200
- 5305670200 - WASHER
4 5305670106
- 5305670106 - NUT
5 5305670115
- 5305670115 - COVER
6 5305670196
- 5305670196 - SEAT PAN
- Includes Ref. 5
7 5305670089
- 5305670089 - RING
8 5305655448
- 5305655448 - SPRING
9 5305670126
- 5305670126 - WEIGHT INDICATOR
10 5305659708
- 5305659708 - ROLLER
11 5305670197
- 5305670197 - BELLOW
12 5305670125
- 5305670125 - GUIDE
13 5305661646
- 5305661646 - ADJUSTING SPINDLE
- W/Ref. 7
- 14
- 33
- 34 & 36
14 5305670084
- 5305670084 - LEVER
- W/Ref. 14
15 5305639625
- 5305639625 - PIN
16 5305655444
- 5305655444 - BUSHING
17 5305670091
- 5305670091 - PIN
18 5305670198
- 5305670198 - ROCKER ARM ASSY
- W/Ref. 15 - 16 - Includes Ref. 19 - 24
19 5305670010
- 5305670010 - PIN
- Was 5305670199
20 5305655433
- 5305655433 - BUSHING
21 5305670015
- 5305670015 - PLATE
22 5305655439
- 5305655439 - SPRING
23 5305670017
- 5305670017 - LOCKING PLATE
24 5305670016
- 5305670016 - PIN
25 5305639675
- 5305639675 - PIN
26 5305670004
- 5305670004 - GAS-FILLED DAMPER
- W/Ref. 25
- 27
27 5305639674
- 5305639674 - CIRCLIP
28 5305670088
- 5305670088 - FORK CPL
29 5305670120
- 5305670120 - RIVET
30 5305670121
- 5305670121 - PLATE
- W/Ref. 29
31 5305670185
- 5305670185 - RUBBER PLATE
32 5305670123
- 5305670123 - BUFFER SET
33 5305670087
- 5305670087 - WASHER
34 5305670086
- 5305670086 - BALL BEARING
35 5305655443
- 5305655443 - SPRING
36 5305670085
- 5305670085 - NUT
37 5305670124
- 5305670124 - SPRING HOLDER
38 5305670128
- 5305670128 - PLUG
39 5305670090
- 5305670090 - PIN
