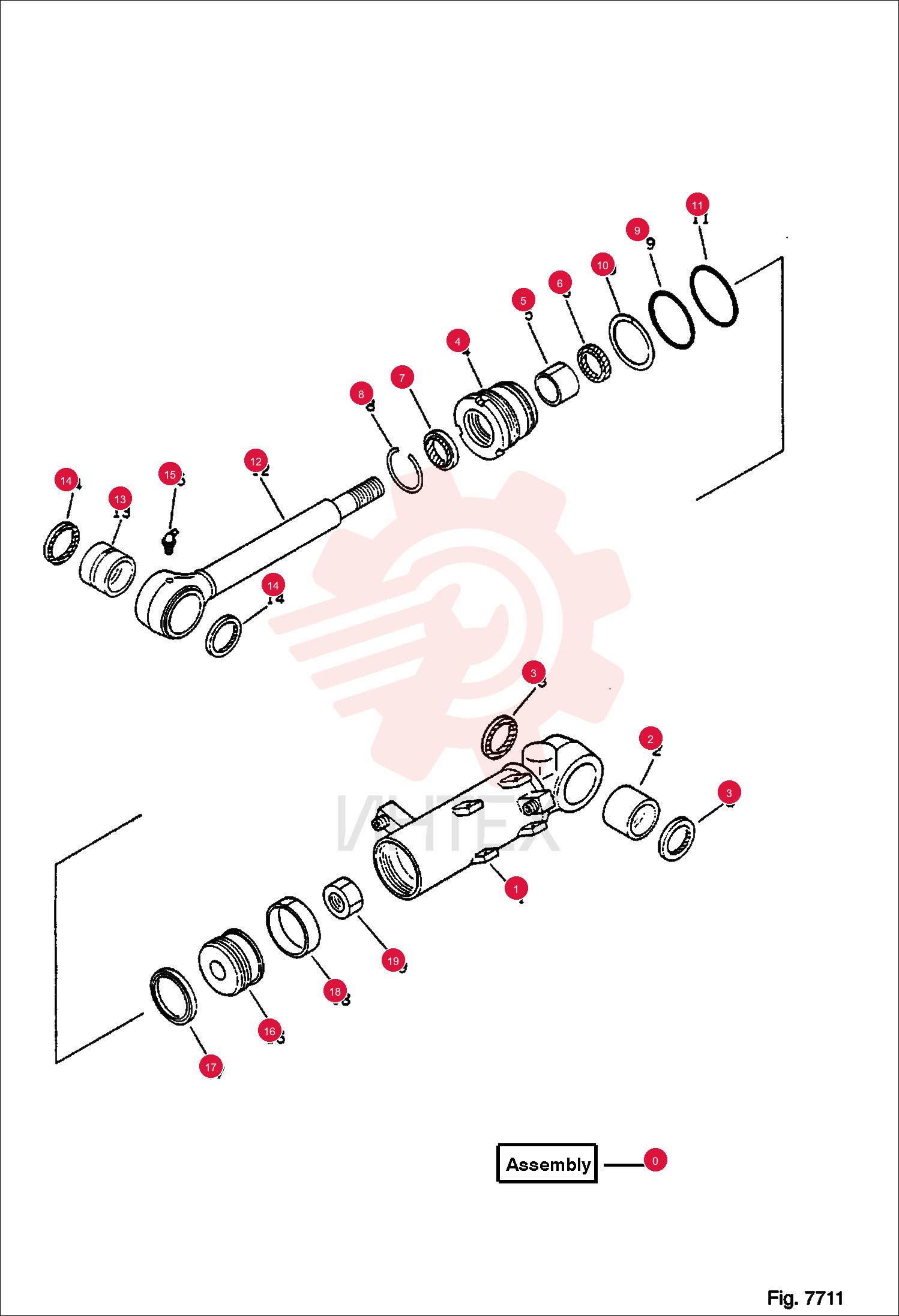

CYLINDER 6648888

CYLINDER 6648888

CYLINDER 6648888

1 6648888

  • 6648888 - CYLINDER

2 6637521

  • 6637521 - BUSHING

3 6637532

  • 6637532 - SEAL
  • DUST

4 6640394

  • 6640394 - CYL HEAD

5 6637561

  • 6637561 - BUSHING

6 6640430

  • 6640430 - PACKING

7 6648862

  • 6648862 - RING

8 6637375

  • 6637375 - O-RING

9 6637399

  • 6637399 - RING
  • BACK-UP

10 6637344

  • 6637344 - O-RING

11 6637526

  • 6637526 - BUSHING

12 6637532

  • 6637532 - SEAL
  • DUST

13 6637431

  • 6637431 - FITTING

14 6637550

  • 6637550 - RING
  • PISTON

15 6649131

  • 6649131 - NUT
