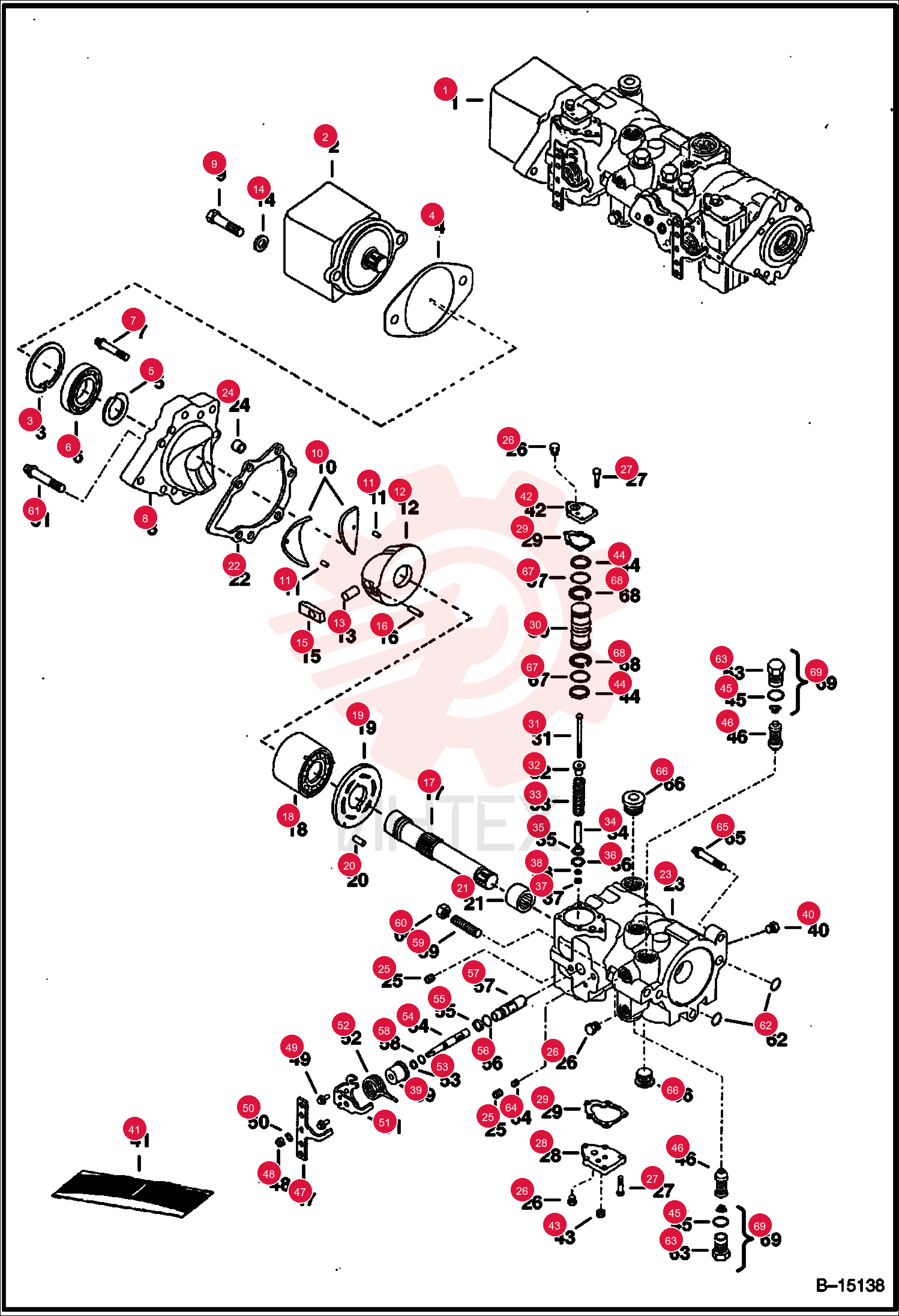

PUMP 6672589 (1)

PUMP 6672589 (1)

PUMP 6672589 (1)

1 6672589

  • 6672589 - PUMP
  • M91-46142 - complete with double gear pump - For high horsepower option

2 669863

  • 669863 - RING
  • SNAP

3 6660339

  • 6660339 - GASKET

4 658128

  • 658128 - RING
  • SNAP

5 654299

  • 654299 - BEARING

6 6666219

  • 6666219 - SCREW

7 6657317

  • 6657317 - COVER
  • FLANGE

8 6645088

  • 6645088 - SCREW

9 6634613

  • 6634613 - BRG JOURN
  • journal

10 791355

  • 791355 - ROLL PIN

11 6634382

  • 6634382 - SWASHPLATE
  • W/Ref. 13 & 16

12 6632464

  • 6632464 - PIN

13 6518483

  • 6518483 - WASHER

14 6631428

  • 6631428 - SLEEVE

15 6673049

  • 6673049 - PIN

16 6657316

  • 6657316 - SHAFT

17 6670274

  • 6670274 - BLOCK
  • PUMP HYD

18 6666596

  • 6666596 - PLATE
  • valve - Was 6634471

19 6634553

  • 6634553 - PIN

20 6631022

  • 6631022 - BEARING

21 6640612

  • 6640612 - GASKET

22 6664370

  • 6664370 - HOUSING

23 6634592

  • 6634592 - PIN
  • spring

24 6518510

  • 6518510 - PLUG

25 6645086

  • 6645086 - PLUG

26 6660434

  • 6660434 - SCREW

27 6645071

  • 6645071 - COV.SERVO
  • servo

28 6634425

  • 6634425 - GASKET

29 6634429

  • 6634429 - PISTON SERVO
  • servo

30 6677160

  • 6677160 - SCREW
  • Was 6631470

31 6631444

  • 6631444 - GUIDE

32 6631430

  • 6631430 - SPRING

33 6631446

  • 6631446 - STOP

34 6631445

  • 6631445 - GUIDE

35 6631469

  • 6631469 - RING
  • SNAP

36 6648256

  • 6648256 - NUT

37 6653728

  • 6653728 - NUT
  • locking

38 6645085

  • 6645085 - PLUG

39 6664371

  • 6664371 - KIT
  • SEAL

40 6645072

  • 6645072 - COV.SERVO

41 6631458

  • 6631458 - NUT

42 6634488

  • 6634488 - KIT
  • SEAL
  • W/Ref. 69

43 79K12

  • 79K12 - O RING 10

44 6669742

  • 6669742 - VALVE
  • RELIEF
  • 4712 PSI (325 Bar) - Was 6672535

45 6673046

  • 6673046 - HANDLE

46 6653734

  • 6653734 - NUT

47 6653733

  • 6653733 - SCREW

48 6653735

  • 6653735 - WASHER

49 6673045

  • 6673045 - SPRING

50 6631467

  • 6631467 - RING 5

51 6715125

  • 6715125 - SPOOL
  • Was 6673043

52 6631468

  • 6631468 - RING

53 25K20020

  • 25K20020 - O RING 10

54 7010984

  • 7010984 - O-RING

55 7010986

  • 7010986 - RING
  • BACK-UP

56 6657315

  • 6657315 - SLEEVE
  • WEAR
  • Was 6672187

57 6645079

  • 6645079 - O RING 5

58 6631642

  • 6631642 - STUD

59 61D8

  • 61D8 - NUT 5

60 6666220

  • 6666220 - SCREW

61 6653738

  • 6653738 - O-RING

62 6660418

  • 6660418 - PLUG
  • NLA - W/O-ring - Was 6660418

63 6669257

  • 6669257 - ORIFICE
  • 0.054

64 93G832

  • 93G832 - BOLT

65 24K9

  • 24K9 - PLUG

66 6653730

  • 6653730 - O-RING

67 6659256

  • 6659256 - RING
  • WEAR

68 6672709

  • 6672709 - PLUG KIT
  • plug
  • O-ring & spring
