863.0
/

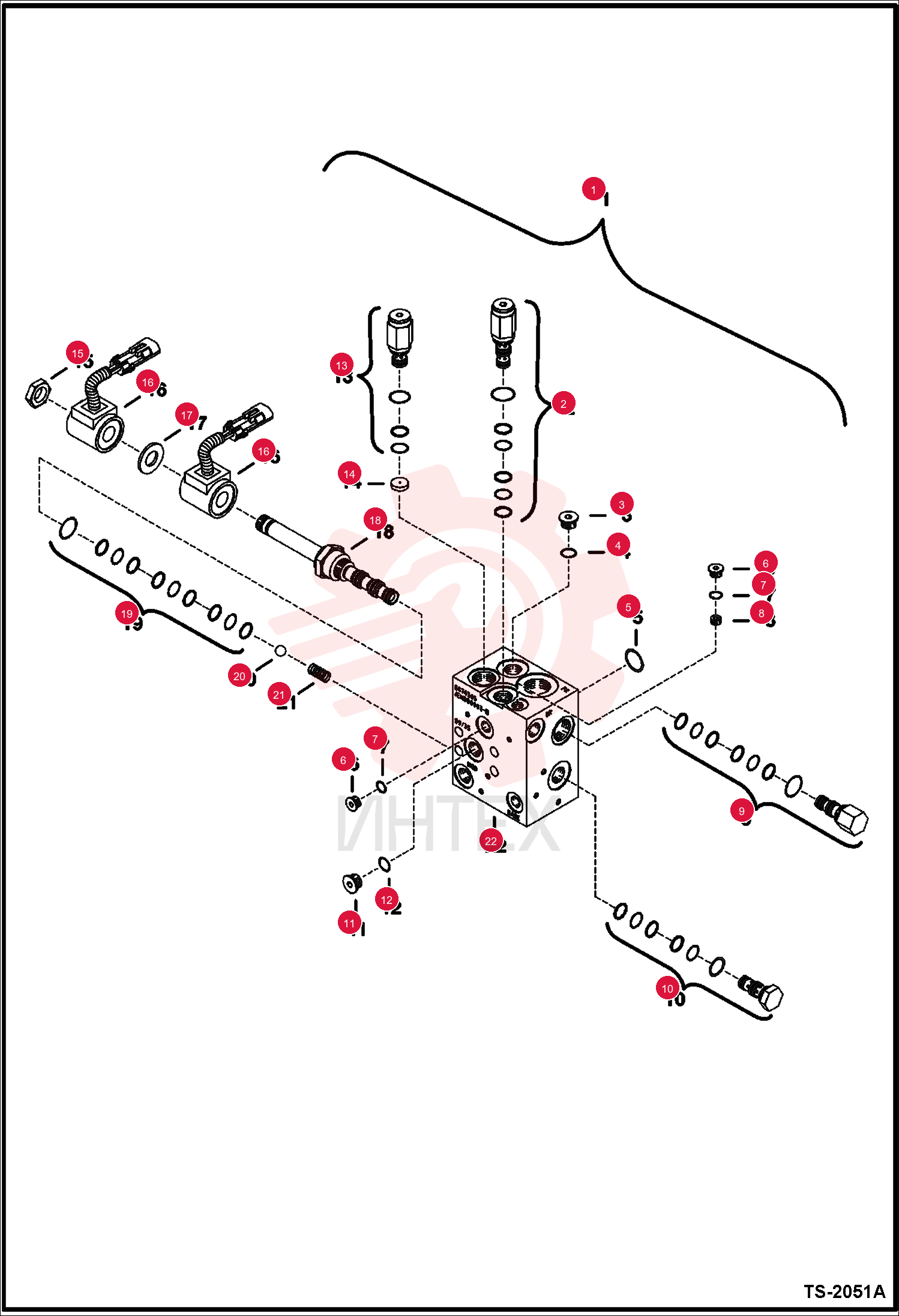

MANIFOLD 6676547

MANIFOLD 6676547

MANIFOLD 6676547

1 6676547

  • 6676547 - MANIFOLD
  • Ref. 2-21

2 6677147

  • 6677147 - VALVE
  • RELIEF

3 6673996

  • 6673996 - SEAL KIT
  • Was 6677148

4 6677158

  • 6677158 - PLUG
  • W/Ref. 4

5 79K8

  • 79K8 - O RING 10

6 6677157

  • 6677157 - O-RING

7 6677159

  • 6677159 - PLUG
  • W/Ref. 7

8 6676347

  • 6676347 - ORIFICE
  • screw in plug W/screen

9 6677156

  • 6677156 - KIT
  • SEAL

10 6677155

  • 6677155 - VALVE

11 6677354

  • 6677354 - VALVE
  • CHECK
  • Was 6677149

12 6677150

  • 6677150 - SEAL KIT

13 24K5

  • 24K5 - PLUG
  • W/Ref. 12 - Was 90KV5

14 95K6

  • 95K6 - O'RING

15 6677151

  • 6677151 - VALVE
  • CHECK

16 6677152

  • 6677152 - SEAL KIT

17 6676070

  • 6676070 - ORIFICE

18 6671025

  • 6671025 - COIL
  • SOLENOID 08-12

19 6678711

  • 6678711 - SPACER

20 6677153

  • 6677153 - SOLENOID
  • VALVE

21 6672756

  • 6672756 - KIT
  • SEAL

22 6676066

  • 6676066 - BALL

23 6676067

  • 6676067 - SPRING
