Bobcat
/
863.0
/

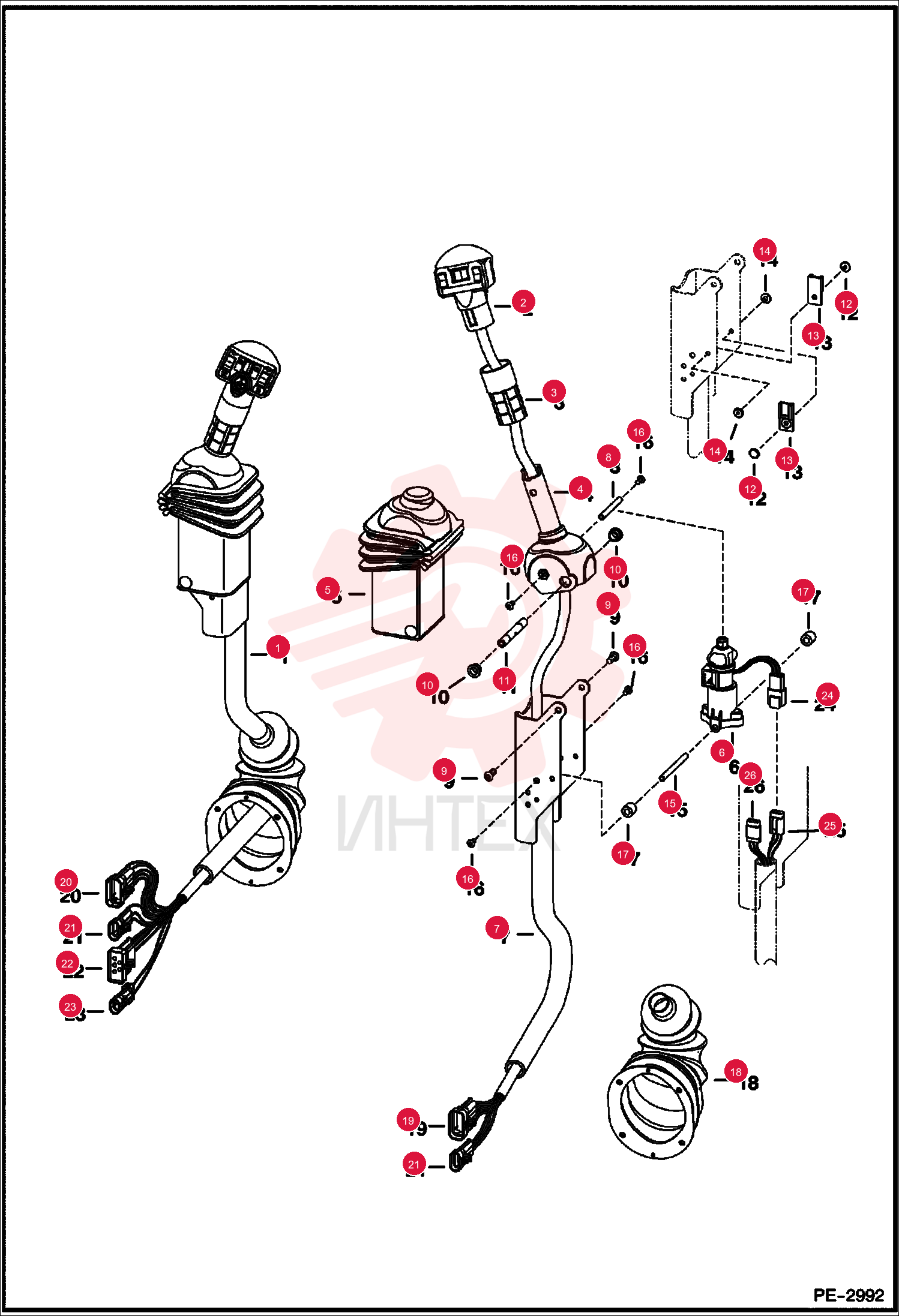

LEVER 6684914 (2)

LEVER 6684914 (2)

LEVER 6684914 (2)

1 6684914

  • 6684914 - LEVER
  • lift - LH

2 6684913

  • 6684913 - LEVER
  • tilt - RH

3 6680417

  • 6680417 - HANDLE
  • AHC
  • lift - LH - Was 6675749

4 6729594

  • 6729594 - HANDLE
  • RH

5 6729595

  • 6729595 - HANDLE
  • LH

6 6680471

  • 6680471 - BOOT

7 6670710

  • 6670710 - PLUG

8 6684910

  • 6684910 - SENSOR
  • ELEC AHC

9 6670706

  • 6670706 - CONNECTOR
  • 3-pin

10 6670714

  • 6670714 - PIN TERMINAL

11 6680480

  • 6680480 - CHANNEL
  • LH - Was 6719711

12 6680481

  • 6680481 - CHANNEL
  • RH - Was 6719712

13 6680469

  • 6680469 - SPACER
  • 2.285" thread on both ends

14 25GT410

  • 25GT410 - SCREW

15 6702990

  • 6702990 - BUSHING

16 6713043

  • 6713043 - SPACER

17 6665321

  • 6665321 - RIVET PLASTIC MALE
  • male

18 6665000

  • 6665000 - BRACKET MOUNTING

19 6665322

  • 6665322 - RIVET PLASTIC FEMALE
  • female

20 6719834

  • 6719834 - SPACER
  • threaded

21 6727065

  • 6727065 - SCREW

22 6719835

  • 6719835 - SLEEVE

23 6532127

  • 6532127 - BOOT AND PLATE ASSY

24 6640692

  • 6640692 - CONNECTOR
  • 10-pin

25 6640694

  • 6640694 - LOCK
  • Use W/ 10-pin connector

26 6641176

  • 6641176 - SEAL

27 6646582

  • 6646582 - PLUG
  • cavity

28 6640690

  • 6640690 - PIN

29 6640692

  • 6640692 - CONNECTOR
  • 10-pin

30 6640690

  • 6640690 - PIN

31 6640694

  • 6640694 - LOCK
  • Use W/ 10-pin connector

32 6641176

  • 6641176 - SEAL

33 6646582

  • 6646582 - PLUG
  • cavity

34 6641176

  • 6641176 - SEAL

35 6640700

  • 6640700 - LOCK METRI PACK

36 6640699

  • 6640699 - CONNECTOR METRI PACK
  • 3-pin - RH & LH

37 6640690

  • 6640690 - PIN

38 6641176

  • 6641176 - SEAL

39 6646582

  • 6646582 - PLUG
  • cavity

40 6667145

  • 6667145 - LOCK
  • Use W/ 5-pin connector

41 6640690

  • 6640690 - PIN

42 6667144

  • 6667144 - CONNECTOR
  • 5-pin

43 6641179

  • 6641179 - CONNECTOR METRI PACK
  • 2-pin

44 6640690

  • 6640690 - PIN

45 6641176

  • 6641176 - SEAL

46 6641180

  • 6641180 - LOCK METRI PACK
  • Use W/ 2-pin connector

47 6670707

  • 6670707 - CONNECTOR
  • 3-pin

48 6670715

  • 6670715 - SOCKET

49 6670711

  • 6670711 - LOCK

50 6676870

  • 6676870 - CONNECTOR
  • 3-pin

51 6670715

  • 6670715 - SOCKET

52 6676640

  • 6676640 - PLUG
  • SEAL
  • plug

53 6670711

  • 6670711 - LOCK

54 6677364

  • 6677364 - CONNECTOR
  • 3-pin - RH & LH

55 6676640

  • 6676640 - PLUG
  • SEAL
  • plug

56 6670715

  • 6670715 - SOCKET
