Bobcat
/
863.0
/

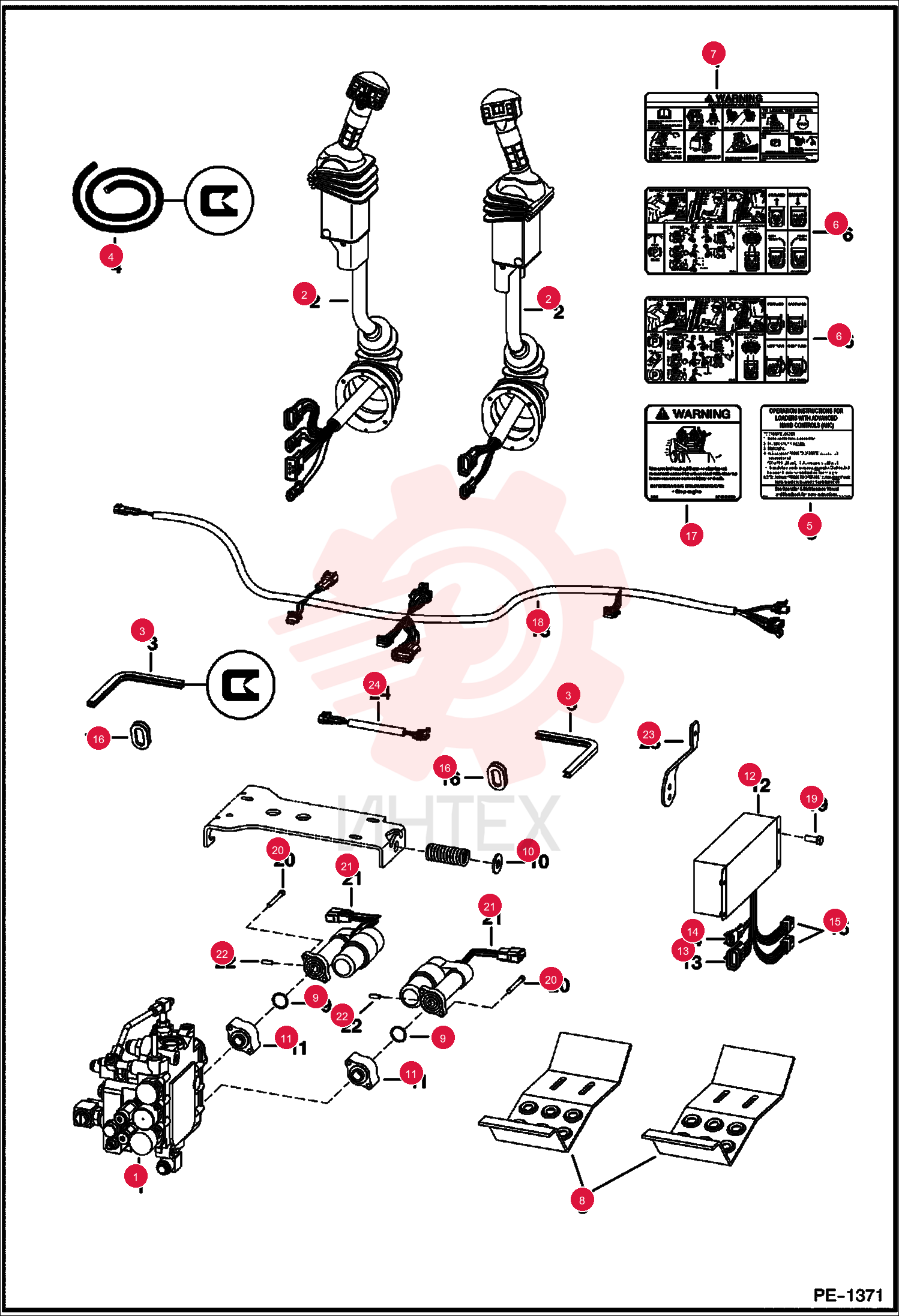

LEVER 6684914 (1)

LEVER 6684914 (1)

LEVER 6684914 (1)

1 6684914

  • 6684914 - LEVER
  • lift - LH - Was 6680425

2 6684913

  • 6684913 - LEVER
  • tilt - RH - Was 6680426

3 6654139

  • 6654139 - MOULDING BULK/FT
  • sold per foot

4 6718704

  • 6718704 - DECAL

5 6727155

  • 6727155 - DECAL

6 6728328

  • 6728328 - DECAL

7 6728539

  • 6728539 - DECAL
  • WARNING
  • Was 6718699

8 6712365

  • 6712365 - STEP

9 58K120

  • 58K120 - O-RING
  • Use W/Ref. 21 (NLA/ 6678875 actuator
  • 7104842 actuator & 7101672 actuator)

10 6686220

  • 6686220 - O-RING
  • Use W/Ref. 21 (NLA/ 7103129 actuator)

11 25E24

  • 25E24 - WASHER
  • Was 25E-22

12 6725128

  • 6725128 - ADAPTER
  • actuator - W/ O-ring groove - Use W/Ref. 21 (NLA/ 6678775 actuator)

13 7101705

  • 7101705 - ADAPTER
  • ACTUATOR
  • W/O O-ring groove - Use W/Ref. 21 (NLA/ 7103129 actuator
  • 7104842 actuator & 7101672 actuator)

14 6680410

  • 6680410 - CONTROLLER
  • ACS
  • plastic - W/ 3-connector plug - Was 6676337

15 6676153

  • 6676153 - CONTROLLER
  • AHC METAL
  • metal

16 6640692

  • 6640692 - CONNECTOR
  • 10-pin

17 6640690

  • 6640690 - PIN

18 6640694

  • 6640694 - LOCK
  • Use W/ 10-pin connector

19 6641176

  • 6641176 - SEAL

20 6646582

  • 6646582 - PLUG
  • cavity

21 6648307

  • 6648307 - CONNECTOR
  • 2-pin

22 6670709

  • 6670709 - CONNECTOR
  • 8-pin

23 6714726

  • 6714726 - PLUG

24 6718706

  • 6718706 - DECAL
  • WARNING
  • raising cab

25 6729054

  • 6729054 - HARNESS
  • AHC
  • W/ capacitor - Use W/Ref. 12

26 17C412

  • 17C412 - BOLT 5

27 69G436

  • 69G436 - BOLT

28 7104842

  • 7104842 - ACTUATOR
  • W/Ref. 9 (58K120 O-ring) - Use W/Ref. 11 (7101705 adapter) - Use W/ metal controller

29 7101672

  • 7101672 - ACTUATOR
  • W/Ref. 9 (58K120 O-ring) - Use W/Ref. 11 (7101705 adapter) - Use W/ plastic controller

30 7108236

  • 7108236 - PIN
  • Was 6718506

31 6717393

  • 6717393 - LEVER
  • throttle

32 6728742

  • 6728742 - HARN.JUMPER
  • jumper - to enhance boom lift
