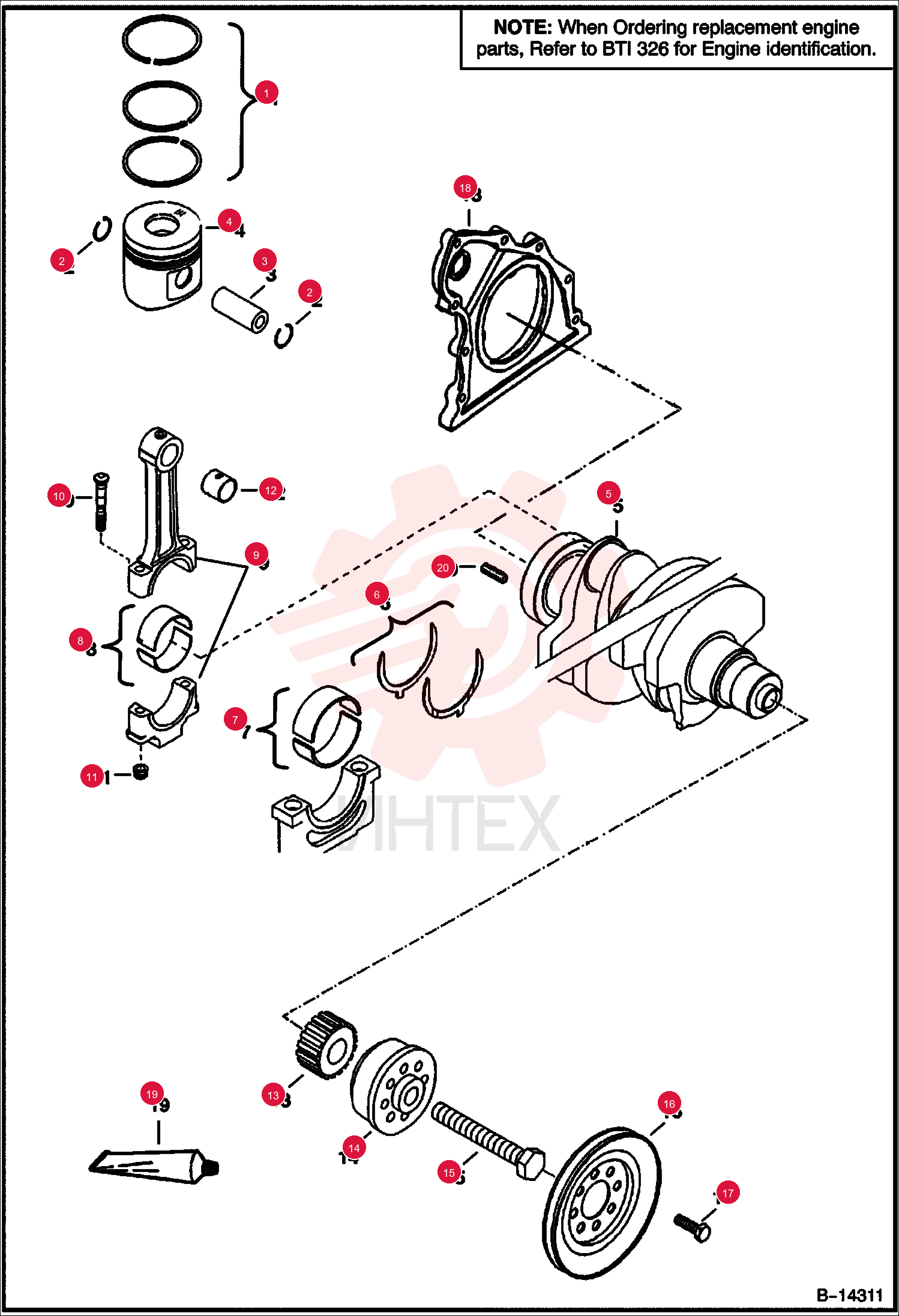

RING SET 6666487
1 6666487
- 6666487 - RING SET
- W/ external PCV
2 6672896
- 6672896 - RING
- PISTON
- W/ external PCV
3 6666404
- 6666404 - RING
- SNAP
4 6666470
- 6666470 - PIN
5 6672895
- 6672895 - PISTON
- ENG
- W/Ref. 1-3 - short stroke - EPA & non-EPA
6 6673152
- 6673152 - PISTON
- ENG
- W/Ref. 1-3 - long stroke - EPA & non-EPA
7 6669398
- 6669398 - CRANKSHAFT
- short stroke - EPA & non-EPA - Was 6666454
8 6673150
- 6673150 - CRANKSHAFT
- long stroke - EPA & non-EPA
9 6666456
- 6666456 - WASHER
- THRUST
10 6669397
- 6669397 - BEARING
- MAIN
- 2.7362" (69
- 50 mm) - 2nd undersized
11 6669395
- 6669395 - BEARING
- MAIN
- 2.7559" (70.00 mm) - std - Was 6666455
12 6669396
- 6669396 - BEARING
- MAIN
- 2.7461" (69
- 75 mm) - 1st undersized
13 6672894
- 6672894 - BEARING
- 2.145" (54
- 50 mm) - 2nd undersized - Was 6666459
14 6666458
- 6666458 - BEARING
- 2.155" (54
- 75 mm) - 1st undersized
15 6672889
- 6672889 - BEARING
- 2.165" (55
- 0 mm) - std - Was 6666457
16 6668943
- 6668943 - ROD
- CONNECTING
- connecting - W/Ref. 10-12
17 6668942
- 6668942 - ROD BOLT
18 6666442
- 6666442 - NUT
19 6666463
- 6666463 - BUSHING
20 6666471
- 6666471 - PULLEY
21 6666482
- 6666482 - FLANGE
22 6666444
- 6666444 - BOLT
23 6666446
- 6666446 - PULLEY
24 6666433
- 6666433 - BOLT
25 6688307
- 6688307 - COVER REAR
- rear - Was 6666491
26 6632823
- 6632823 - GASKET
- LIQUID
- liquid - use between Ref. 18 & block
27 6672890
- 6672890 - ADAPTER
