Главная
/
Бренды
/
Bobcat
/
A770
/

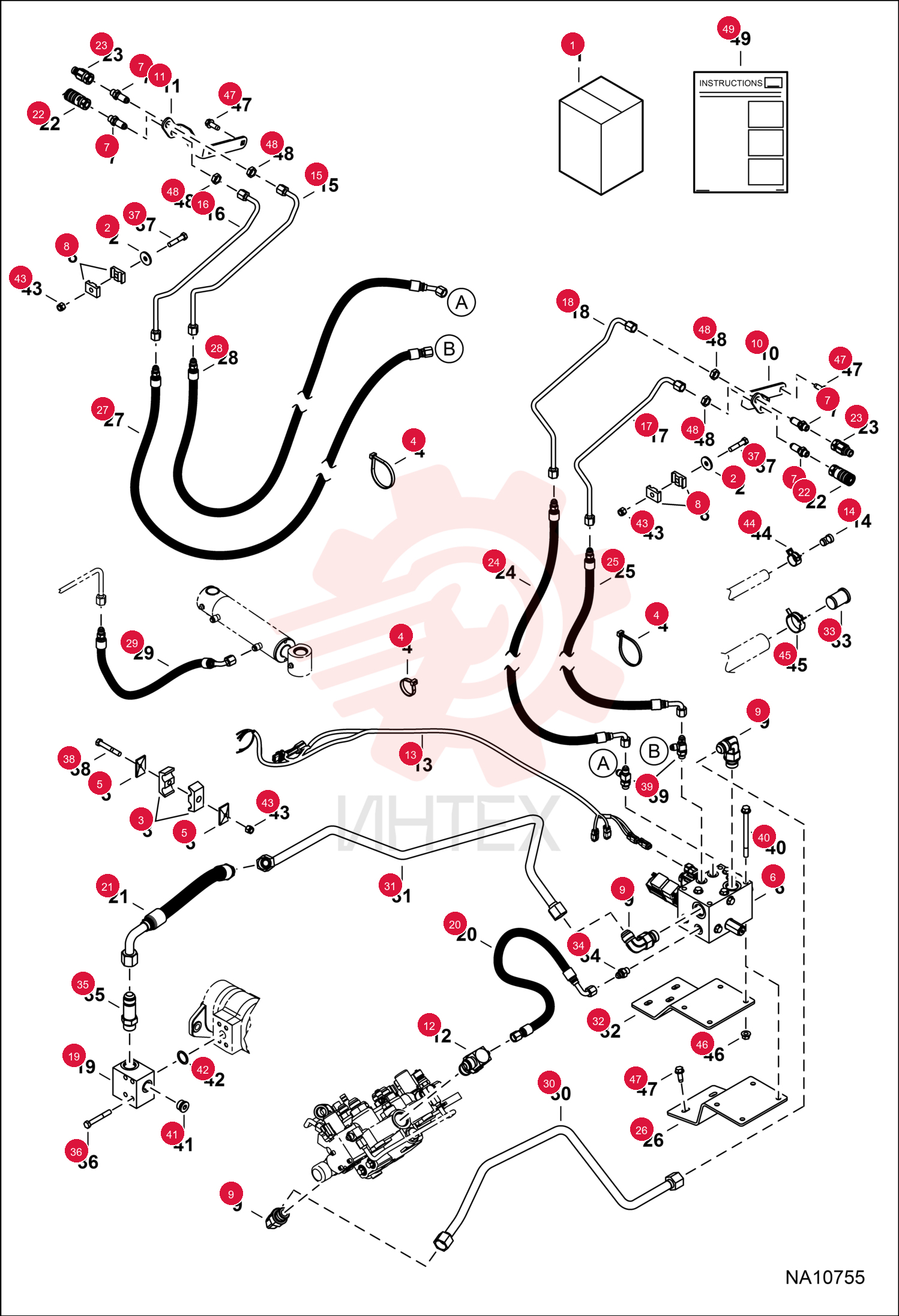

WASHER 619021 (2)

WASHER 619021 (2)

WASHER 619021 (2)

1 619021

  • 619021 - WASHER

2 6592506

  • 6592506 - CLAMP

3 6624289

  • 6624289 - STRAP
  • TIE

4 6652521

  • 6652521 - PLATE

5 6685624

  • 6685624 - VALVE
  • AUX REAR

6 6716089

  • 6716089 - CONNECTOR

7 7115645

  • 7115645 - CLAMP
  • Was 6726277

8 7101797

  • 7101797 - ELBOW

9 7186827

  • 7186827 - MOUNT
  • BULKHEAD

10 7186828

  • 7186828 - MOUNT
  • BULKHEAD

11 7195615

  • 7195615 - FITTING
  • HYD TEE

12 7201414

  • 7201414 - HARNESS
  • AUX REAR

13 7203382

  • 7203382 - PLUG
  • STEEL

14 7217363

  • 7217363 - TUBELINE
  • HYD

15 7217364

  • 7217364 - TUBELINE
  • HYD

16 7217365

  • 7217365 - TUBELINE
  • HYD

17 7217366

  • 7217366 - TUBELINE
  • HYD

18 7226207

  • 7226207 - MANIFOLD
  • OUTLET PUMP

19 7242381

  • 7242381 - HOSE
  • HYD ASSY

20 7242382

  • 7242382 - HOSE
  • HYD ASSY

21 7246786

  • 7246786 - COUPLER
  • FF FEMALE

22 7246787

  • 7246787 - COUPLER
  • FF MALE

23 7266637

  • 7266637 - HOSE
  • HYD ASSY
  • - Was 7310253

24 7266638

  • 7266638 - HOSE
  • HYD ASSY
  • - Was 7310250

25 7266913

  • 7266913 - BRACKET
  • SSL

26 7268420

  • 7268420 - HOSE
  • HYD ASSY
  • - Was 7310255

27 7268421

  • 7268421 - HOSE
  • HYD ASSY
  • - Was 7310254

28 7268430

  • 7268430 - HOSE
  • HYD ASSY
  • AWS

29 7270042

  • 7270042 - TUBELINE
  • HYD

30 7270043

  • 7270043 - TUBELINE
  • HYD

31 7270121

  • 7270121 - BRACKET
  • CTL

32 7273679

  • 7273679 - PLUG

33 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR

34 16KB1212

  • 16KB1212 - FITTING
  • HYD CONNECTOR

35 17C644

  • 17C644 - BOLT

36 1C628

  • 1C628 - BOLT

37 17C640

  • 17C640 - BOLT
  • Was 1C640

38 21KB0606

  • 21KB0606 - FITTING
  • HYD TEE

39 31C680

  • 31C680 - BOLT

40 24K6

  • 24K6 - PLUG HYDR ORING BOSS
  • Was 47K7

41 55K214

  • 55K214 - O-RING

42 59D6

  • 59D6 - NUT LOCK HEX PT

43 5HM24

  • 5HM24 - CLAMP

44 5HM38

  • 5HM38 - CLAMP
  • HOSE

45 83D6

  • 83D6 - LKNUT HEX FLG GR8

46 84G3716

  • 84G3716 - SCREW THD ROLLING TT

47 86F5

  • 86F5 - NUT

48 7280212ENUS

  • 7280212ENUS - INSTRUCTIONS
  • Was 7273728
