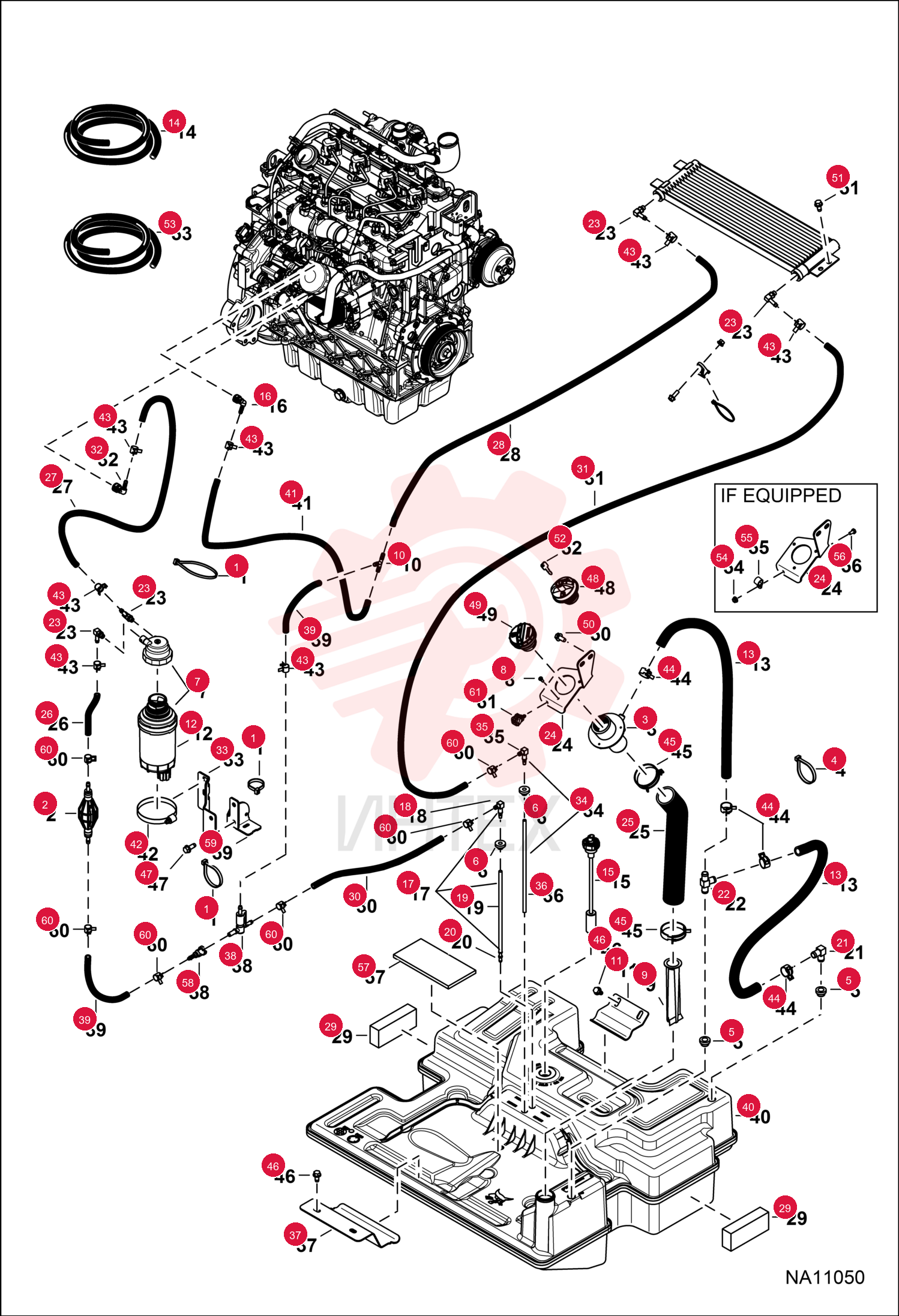

STRAP, TIE 6624289 (2)

STRAP, TIE 6624289 (2)

STRAP, TIE 6624289 (2)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6667170

  • 6667170 - PUMP
  • PRIMER HAND

3 6701449

  • 6701449 - FLR.TUBE

4 6690690

  • 6690690 - STRAP
  • TIE

5 6717402

  • 6717402 - BUSHING

6 7266067

  • 7266067 - GROMMET

7 7013579

  • 7013579 - FILTER FUEL ASSY

8 7106279

  • 7106279 - SCREW

9 7120881

  • 7120881 - SCREEN
  • FILLER

10 7140157

  • 7140157 - TEE

11 7177132

  • 7177132 - BRACKET
  • TANK FUEL

12 7023589

  • 7023589 - FILTER FUEL W/SEPARATOR

13 6578172

  • 6578172 - HOSE BULK
  • sold per foot

14 7286464

  • 7286464 - SENSOR
  • FUEL
  • Was 7179839

15 6717579

  • 6717579 - GASKET

16 7188104

  • 7188104 - FITTING
  • FUEL ELBOW

17 7238968

  • 7238968 - FUEL
  • TUBE
  • Ref. 18-20

18 6666302

  • 6666302 - ELBOW BARBED

19 7256099

  • 7256099 - ELBOW BARB 90 DEGREE
  • 90 degree - Was 7203383

20 7256098

  • 7256098 - TEE
  • Was 7203385

21 7213054

  • 7213054 - FITTING
  • ELBOW

22 7213691

  • 7213691 - BRACKET
  • FUEL

23 7213692

  • 7213692 - HOSE
  • FUEL

24 7228241

  • 7228241 - INSULATION
  • TANK FUEL

25 7231187

  • 7231187 - CONNECTOR

26 7237876

  • 7237876 - BRACKET
  • FILTER

27 7187287

  • 7187287 - FUEL
  • TUBE
  • Ref. 35-36

28 6666302

  • 6666302 - ELBOW BARBED

29 6735249

  • 6735249 - HOSE
  • FUEL

30 7248580

  • 7248580 - BRACKET
  • FUEL

31 7302578

  • 7302578 - VALVE BYPASS
  • Was 7275950

32 7180679

  • 7180679 - TANK
  • FUEL

33 42H56

  • 42H56 - CLAMP

34 5HM14

  • 5HM14 - HOSE CLMP CONST TENS

35 5HM24

  • 5HM24 - CLAMP

36 5HM58

  • 5HM58 - CLAMP

37 84G3712

  • 84G3712 - SCREW THD ROLLING TT

38 84G3716

  • 84G3716 - SCREW THD ROLLING TT

39 7023550

  • 7023550 - CAP
  • DIESEL LOCKING

40 7113340

  • 7113340 - CAP
  • DIESEL 3 PSI

41 35C612

  • 35C612 - SCREW FLGD HEX CAP

42 7257444

  • 7257444 - EXCHANGER
  • FUEL

43 6693241

  • 6693241 - KEY (2)

44 6577822

  • 6577822 - HOSE BULK
  • sold per foot

45 97D4

  • 97D4 - NUT HEX FLNG W/T GR5
  • if equipped

46 30H33

  • 30H33 - CLIP INSULATED
  • if equipped

47 17C408

  • 17C408 - BOLT
  • if equipped

48 7256412

  • 7256412 - SUPPORT
  • TANK

49 7277310

  • 7277310 - CONNECTOR
  • FUEL

50 7280667

  • 7280667 - BRACKET

51 5HM15

  • 5HM15 - CLAMP

52 7325034

  • 7325034 - MOUNT FIR TREE
