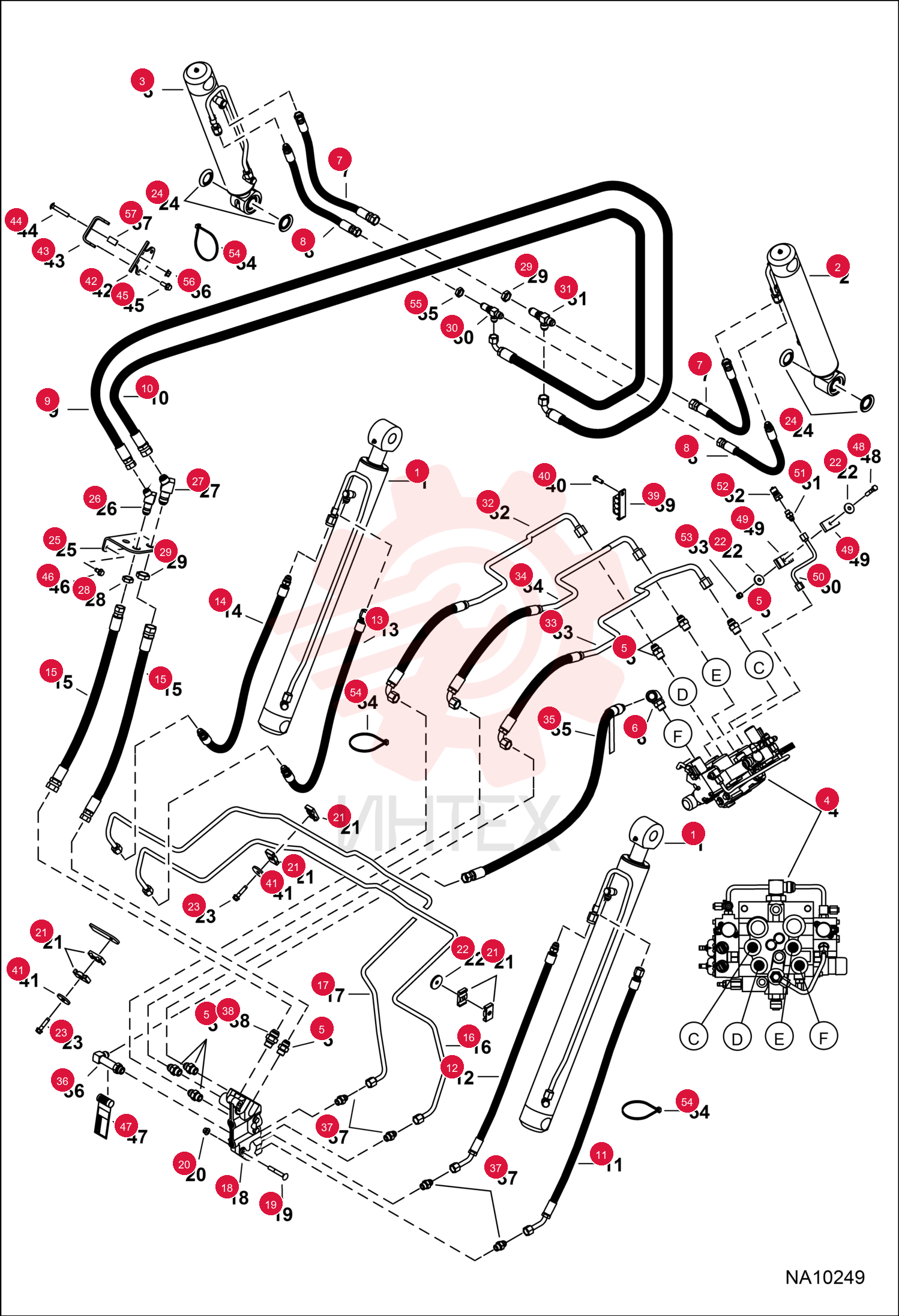

FITTING, HYD CONNECTOR 15KB1010 (1)

FITTING, HYD CONNECTOR 15KB1010 (1)

FITTING, HYD CONNECTOR 15KB1010 (1)

1 15KB1010

  • 15KB1010 - FITTING
  • HYD CONNECTOR

2 79K10

  • 79K10 - O RING 10

3 7109623

  • 7109623 - ELBOW
  • Use W/hose 7168336

4 6814531

  • 6814531 - ELBOW
  • Use W/hose 7280706

5 79K10

  • 79K10 - O RING 10

6 7153006

  • 7153006 - HOSE
  • HYD

7 7153008

  • 7153008 - HOSE
  • HYD

8 7249151

  • 7249151 - HOSE
  • HYD ASSY

9 7162868

  • 7162868 - HOSE
  • HYD ASSY

10 7155829

  • 7155829 - HOSE
  • HYD

11 7155830

  • 7155830 - HOSE
  • HYD

12 7212038

  • 7212038 - HOSE
  • HYD

13 7212037

  • 7212037 - HOSE
  • HYD

14 7156319

  • 7156319 - HOSE
  • HYD

15 7280683

  • 7280683 - TUBELINE
  • HYD
  • Was 7247350

16 7280684

  • 7280684 - TUBELINE
  • HYD
  • Was 7247351

17 37C644

  • 37C644 - BOLT

18 83D6

  • 83D6 - LKNUT HEX FLG GR8

19 6701892

  • 6701892 - CLAMP TUBELINE

20 619021

  • 619021 - WASHER
  • 0.13" thick - 32 mm (1.25") OD

21 84G3728

  • 84G3728 - SCREW THD ROLLING TT

22 6689112

  • 6689112 - SEAL

23 7156362

  • 7156362 - MOUNT
  • BLKHD

24 46K7

  • 46K7 - ELBOW

25 46K8

  • 46K8 - ELBOW

26 86F7

  • 86F7 - NUT 5

27 86F8

  • 86F8 - NUT 5

28 91K6

  • 91K6 - TEE

29 91K7

  • 91K7 - FITTING

30 7152003

  • 7152003 - HOSE
  • HYD

31 7152004

  • 7152004 - HOSE
  • HYD

32 7152005

  • 7152005 - HOSE
  • HYD

33 7168336

  • 7168336 - HOSE
  • HYD
  • 1079
  • 5 mm (42.5") long - available only as an assembly W/one danger decal installed near the male threaded end of the hose

34 7280706

  • 7280706 - HOSE
  • HYD ASSY
  • 1134
  • 6 mm (44.67") long - available only as an assembly W/one danger decal installed near the male threaded end of the hose

35 79K10

  • 79K10 - O RING 10

36 7183605

  • 7183605 - KIT
  • FITTING W/DECAL
  • Use W/hose 7168336 - W/Ref. 47 - this elbow must always display the danger decal

37 7211446

  • 7211446 - KIT
  • FITTING W/DECAL
  • Use W/hose 7280706 - W/Ref. 47 - this elbow must always display the danger decal

38 79K8

  • 79K8 - O RING 10

39 15KB0808

  • 15KB0808 - FTG HYD S CONNECTOR

40 79K10

  • 79K10 - O RING 10

41 15KB1210

  • 15KB1210 - FITTING
  • HYD CONNECTOR

42 7157358

  • 7157358 - CLAMP

43 84G3716

  • 84G3716 - SCREW THD ROLLING TT

44 872229

  • 872229 - WASHER
  • 0.19" thick - 44.5 mm (1.75") OD

45 7199814

  • 7199814 - CLAMP
  • HOSE

46 7199815

  • 7199815 - CLAMP
  • HOSE

47 37C636

  • 37C636 - BOLT

48 35C616

  • 35C616 - SCREW FLGD HEX CAP

49 84G3712

  • 84G3712 - SCREW THD ROLLING TT

50 7170355

  • 7170355 - DECAL
  • DANGER

51 17C632

  • 17C632 - BOLT 5

52 7183298

  • 7183298 - CLAMP

53 7182882

  • 7182882 - TUBELINE
  • HYD

54 15KB0606

  • 15KB0606 - FITTING
  • HYD CONNECTOR

55 79K6

  • 79K6 - O RING 10

56 6684125

  • 6684125 - COUPLER

57 6684125EF

  • 6684125EF - COUPLER ISO MALE B 3/8 BDY 3/8 SAE

58 87D6

  • 87D6 - NUT
  • LOCK

59 6624289

  • 6624289 - STRAP
  • TIE

60 86F6

  • 86F6 - NUT HYDR BHD LOCK

61 53D6

  • 53D6 - NUT
  • Was 89D6

62 7199872

  • 7199872 - SPACER
  • TUBE
