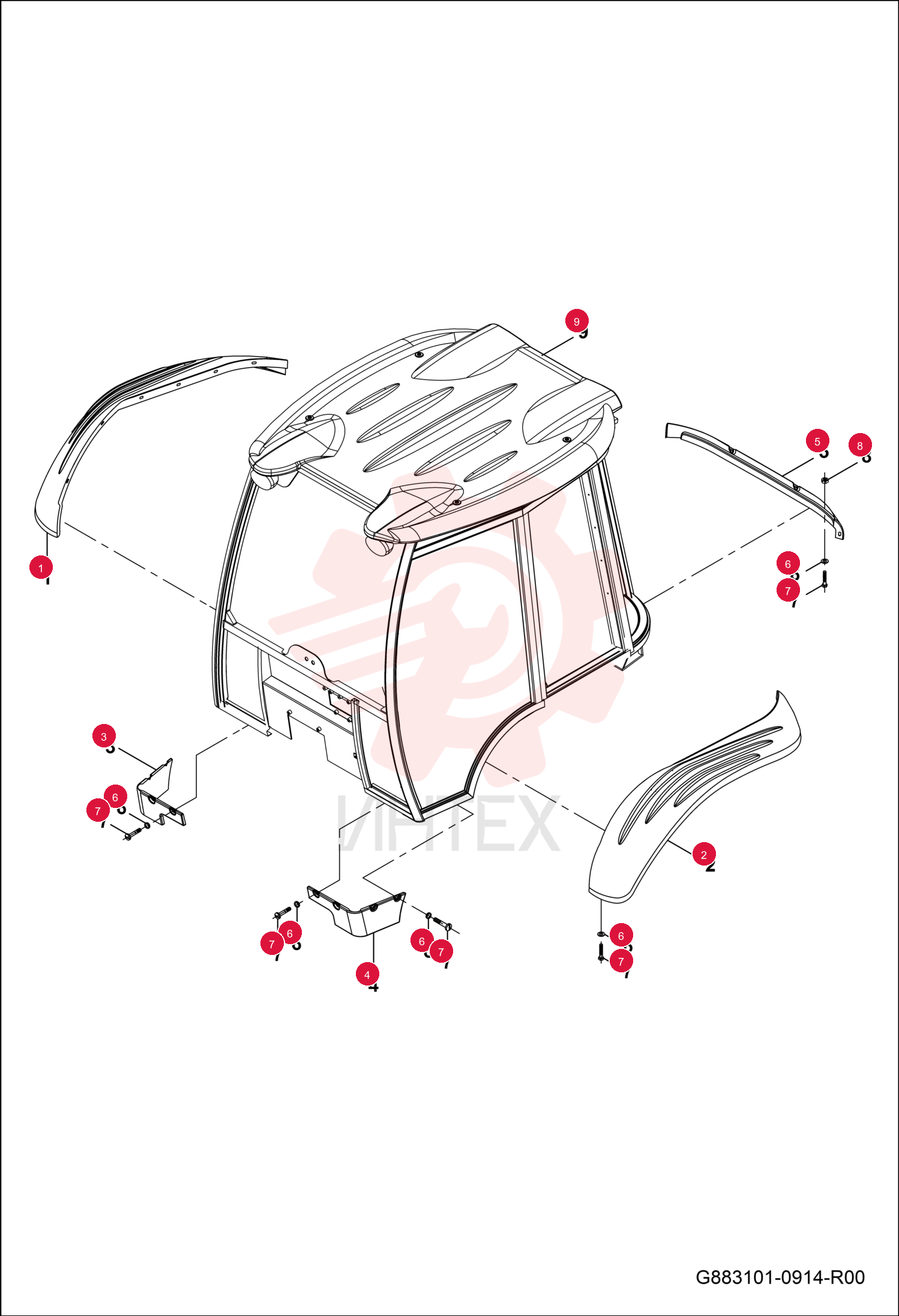

RIGHT REAR MUDGUARD 7292148 (1)

RIGHT REAR MUDGUARD 7292148 (1)

RIGHT REAR MUDGUARD 7292148 (1)

1 7292148

  • 7292148 - RIGHT REAR MUDGUARD

2 7292149

  • 7292149 - FENDER REAR LEFT

3 7292150

  • 7292150 - RIGHT FRONT SKIRT POLYESTER

4 7292151

  • 7292151 - LEFT FRONT SKIRT POLYESTER

5 7292152

  • 7292152 - BACK SKIRT POLYESTER

6 7289268

  • 7289268 - WASHER FLAT

7 7289273

  • 7289273 - BOLT HEX

8 7289263

  • 7289263 - NUT HEX

9 7292153

  • 7292153 - CABIN ASS'Y

10 7299273

  • 7299273 - CANOPY CABIN ASSY
