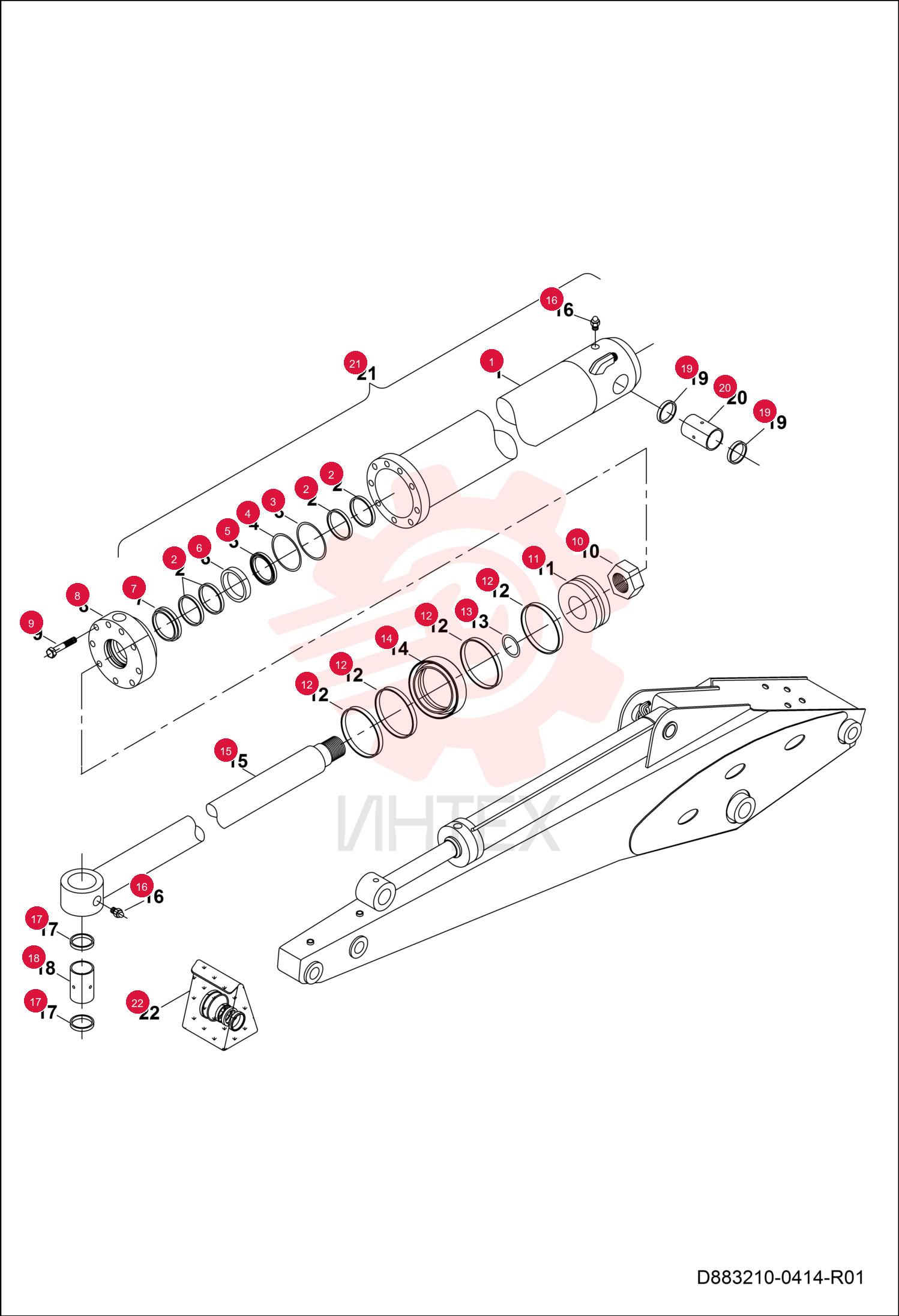

CYLINDER PIPE ASSEMBLY 7291615 (2)

CYLINDER PIPE ASSEMBLY 7291615 (2)

CYLINDER PIPE ASSEMBLY 7291615 (2)

1 7291615

  • 7291615 - CYLINDER PIPE ASSEMBLY

2 7291591

  • 7291591 - RING TEFLON

3 7289874

  • 7289874 - RING BACK-UP

4 7289873

  • 7289873 - O-RING

5 7291604

  • 7291604 - OMEGAT

6 7289845

  • 7289845 - NUT RING

7 7289911

  • 7289911 - SEAL DUST

8 7291616

  • 7291616 - GUIDE

9 7291594

  • 7291594 - BOLT HEX

10 7291606

  • 7291606 - NUT HEX

11 7291607

  • 7291607 - PISTON

12 7289918

  • 7289918 - RING TEFLON

13 7291608

  • 7291608 - O-RING

14 7289879

  • 7289879 - OMEGAT

15 7291617

  • 7291617 - ROD ASSEMBLY

16 7289862

  • 7289862 - FITTING GREASE

17 7289943

  • 7289943 - SEAL DUST

18 7291618

  • 7291618 - SEAL BUSHING

19 7291610

  • 7291610 - DUST SEAL

20 7291559

  • 7291559 - SEAL BUSHING

21 7291620

  • 7291620 - CYLINDER ASSEMBLY

22 7291621

  • 7291621 - KIT REPAIR
